High Voltage SourceMeter Instrument Reference Manual Section 3: Instrum
2470-901-01 Rev. A / May 2019 3-13
Trigger mode indicator
Located to the right of the active script indicator, this indicator shows the active trigger measurement
method. Select the indicator to open a menu. Select one of the buttons on the menu to change the
trigger measurement method or initiate or abort the trigger model. In the figure below, Continuous
Measurement is the present trigger measurement method.

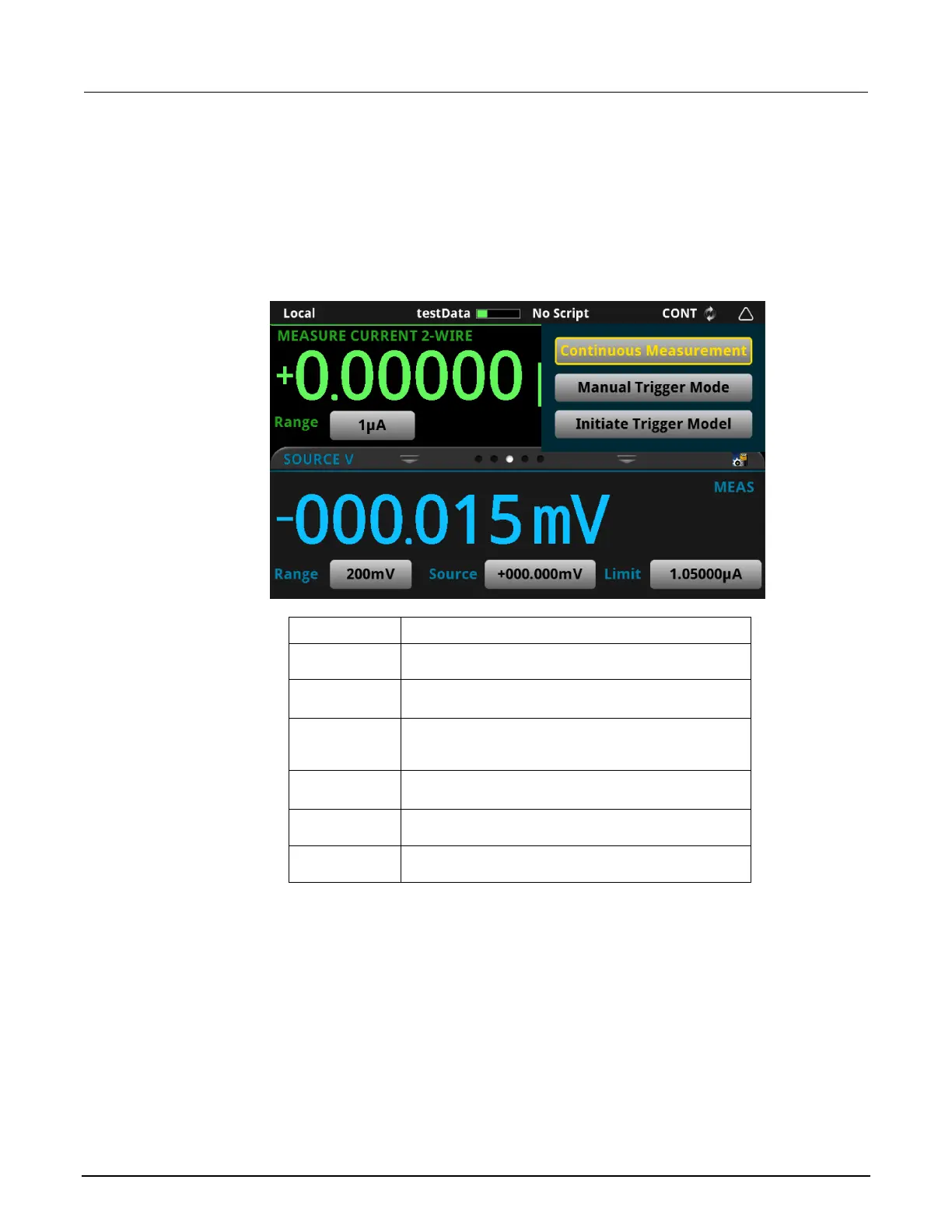

Figure 37: Trigger operating mode indicator
Indicator Meaning
Continuous measurement: The instrument is making
measurements continuously.
Trigger model measurement method. The trigger
model is not running.
The trigger model is inactive. This occurs when the
trigger model cannot run, such as when the count is
more than the reading buffer capacity.
Manual trigger mode: Press the front-panel TRIGGER
key to initiate a single measurement.
Trigger model measurement method. The instrument
is running the presently selected trigger model.
Trigger model measurement method. The trigger
model is waiting on an event.
