High Voltage SourceMeter Instrument Reference Manual Section 3:
2470-901-01 Rev. A / May 2019 3-9
Event messages
During operation and programming, front-panel messages may be displayed. Messages are
information, warning, or error notifications. For information on event messages, refer to
Using the
event log (on page 3-50).

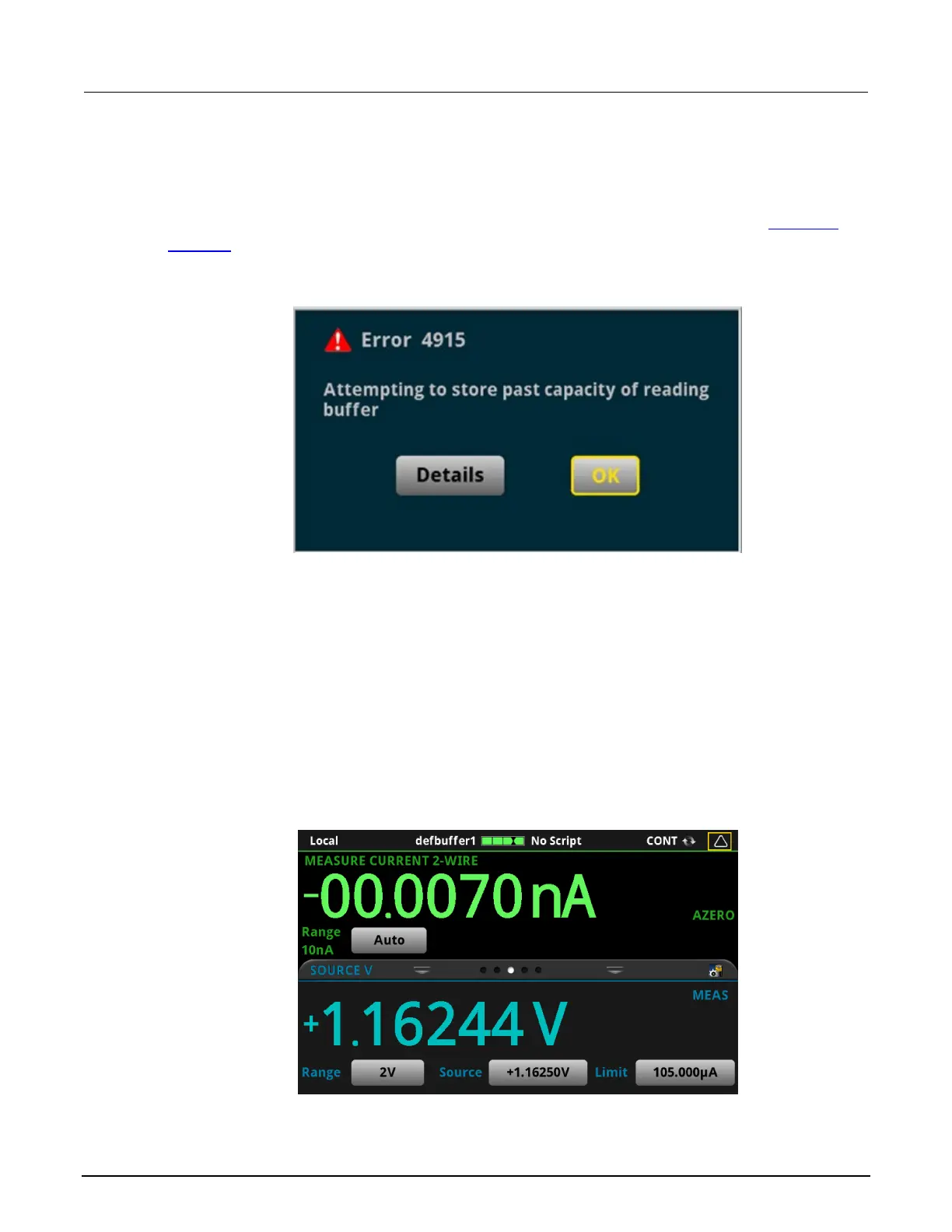

Figure 30: Example front-panel error message
Screen descriptions
The following topics describe the screens and options that you can view on the 2470 front-panel
display.
Home screen
This is the default screen that you see whenever you turn the 2470 on or when you press the HOME
key. The options available on the home screen are described in the following topics.
Figure 31: 2470 home screen
