High Voltage SourceMeter Instrument Reference Manual Section 14:
TSP command reference
2470-901-01 Rev. A / May 2019 14-57

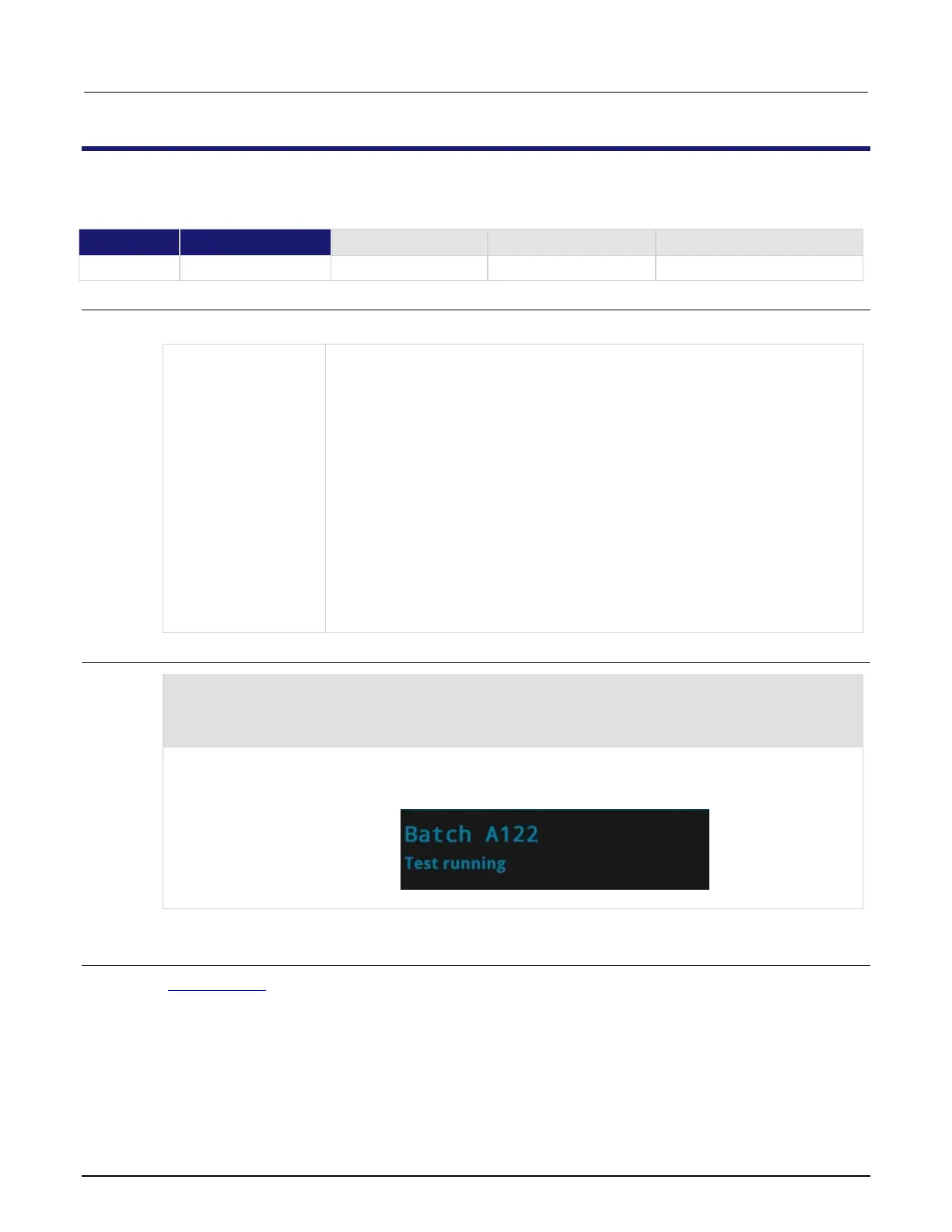

display.changescreen()
This function changes which front-panel screen is displayed.
Type TSP-Link accessible
Affected by Where saved Default value
Function
Yes
Usage
display.changescreen(screenName)
screenName
The screen to display:
 Home screen: display.SCREEN_HOME
 Home screen with large readings:
display.SCREEN_HOME_LARGE_READING
 Reading table screen: display.SCREEN_READING_TABLE
 Graph screen (opens last selected tab): display.SCREEN_GRAPH
 Histogram: display.SCREEN_HISTOGRAM
 GRAPH swipe screen: display.SCREEN_GRAPH_SWIPE
 SETTINGS swipe screen: display.SCREEN_SETTINGS_SWIPE
 SOURCE swipe screen: display.SCREEN_SOURCE_SWIPE
 STATISTICS swipe screen: display.SCREEN_STATS_SWIPE
 USER swipe screen:
display.SCREEN_USER_SWIPE
Example
display.clear()
display.settext(display.TEXT1, "Batch A122")
display.settext(display.TEXT2, "Test running")
display.changescreen(display.SCREEN_USER_SWIPE)
Clear the USER swipe screen.
Set the first line of the USER swipe screen to read "Batch A122" and the second line to display "Test running".
Display the USER swipe screen.
Also see
display.settext() (on page 14-69)

Tektronix Keithley SourceMeter 2470 Specifications

General

Model	2470
Type	SourceMeter
Category	Measuring Instruments
Channels	1
Voltage Source Range	±1000 V
Current Source Range	±1 A
Power	100 W
Current Measurement Resolution	10 pA
Measurement Resolution	6½ digits
Display	5 inch capacitive touchscreen
Interface	USB, GPIB, Ethernet
Supported Communication Protocols	SCPI
Input/Output Connectors	4-wire
