High Voltage SourceMeter Instrument Reference Manual Section 6:
Reading buffers
2470-901-01 Rev. A / May 2019 6-9
After you create a new reading buffer, the new reading buffer becomes the active buffer.

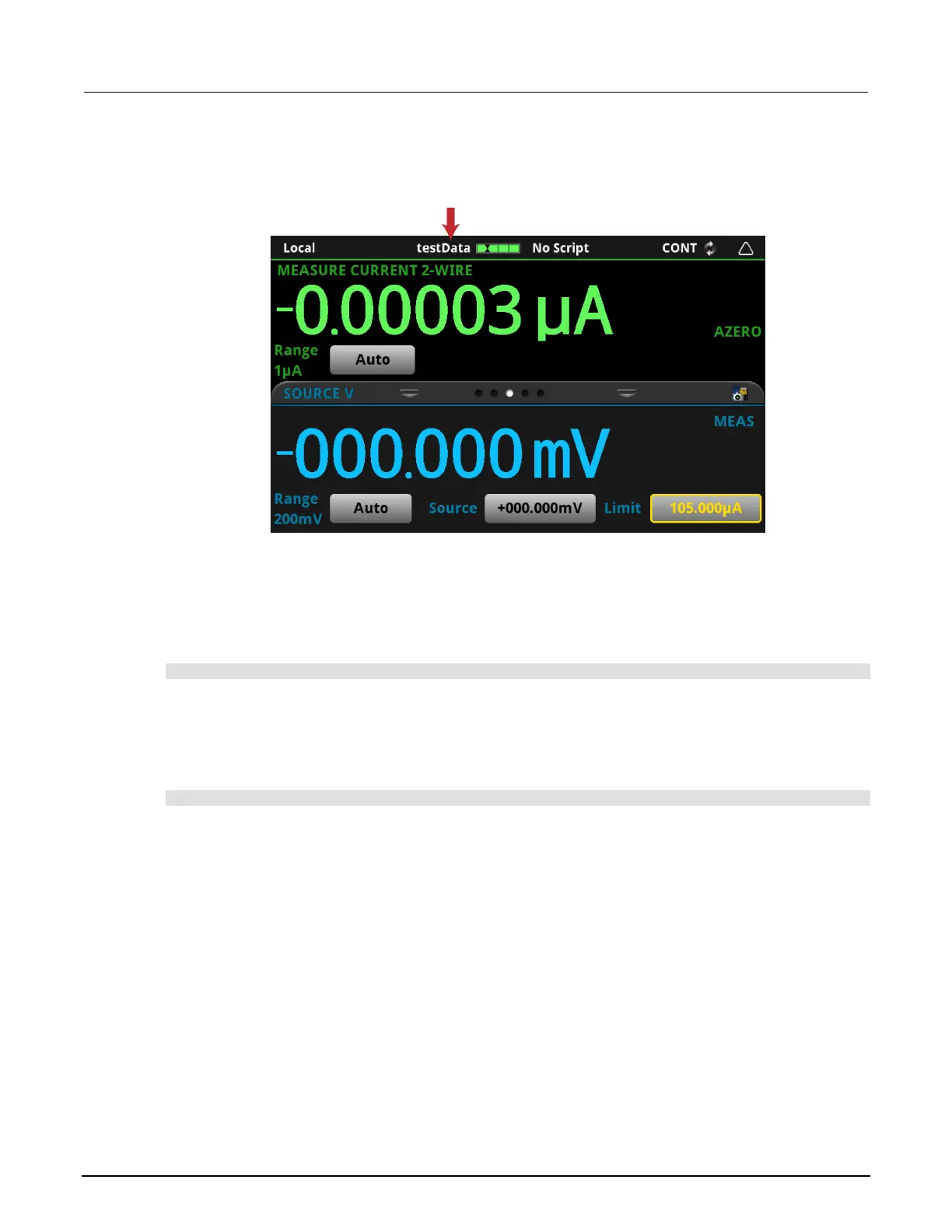

Figure 110: Active buffer indicator
Using SCPI commands to create a reading buffer:
To create a full reading buffer named testData with a capacity of 200 readings, send the following
c
ommand:
TRACe:MAKE "testData", 200, FULL
Using TSP commands to create a reading buffer:
To create a full reading buffer named testData with a capacity of 200 readings, send the followi
ng
c
ommand:
testData = buffer.make(200, buffer.STYLE_FULL)
Setting reading buffer options
You can specify the settings for the reading buffers. The settings you can select include:
• Buffer capacity: The amount of data the buffer holds
• Fill mode: How the incoming data is managed as the buffer fills
