Section

6: Reading buffers 2470 High Voltage SourceMeter Instrument

Reference Manual

6-8 2470-901-01 Rev. A / May 2019

7. The Initial Capacity window is displayed. Enter the number of readings that the buffer will hold.

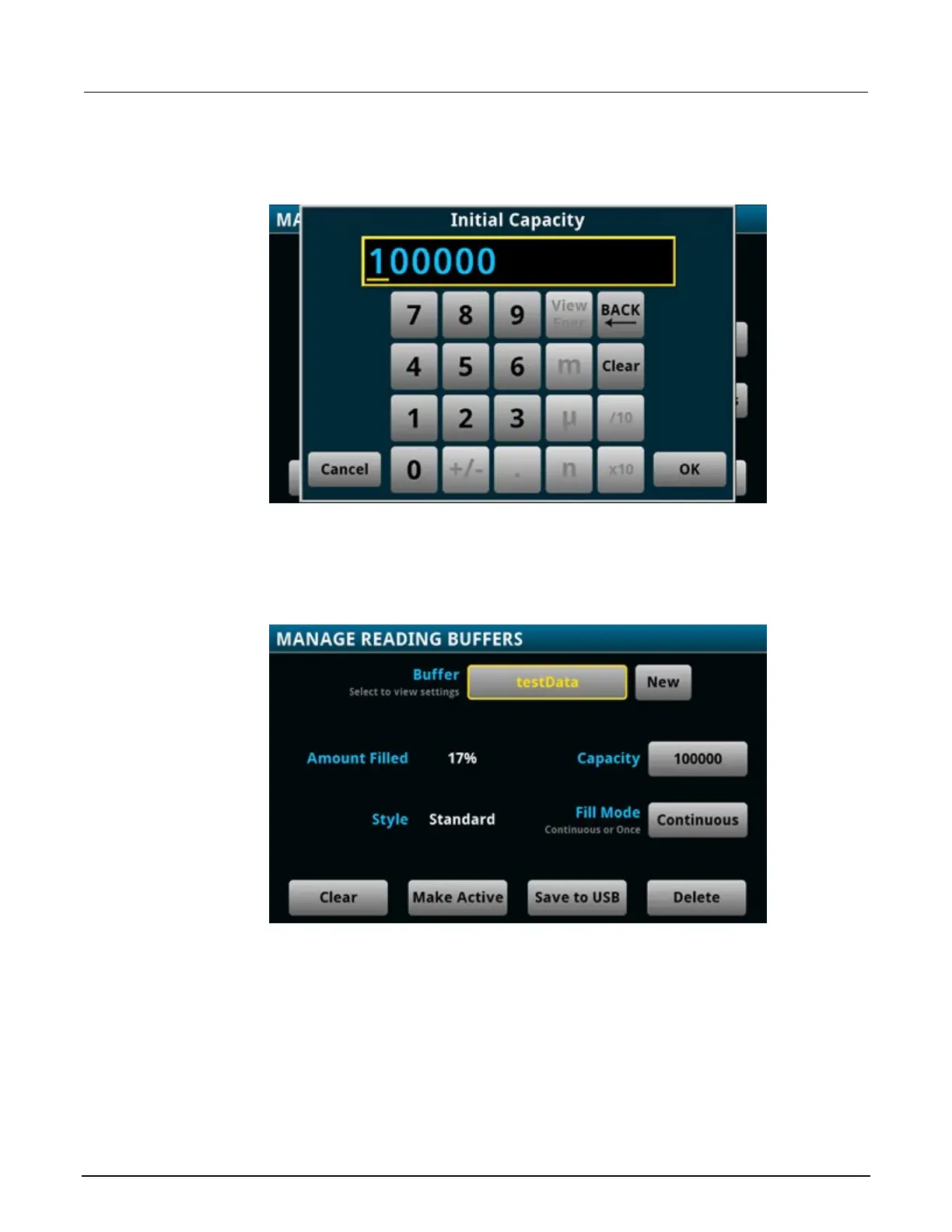

Figure 108: Initial Capacity window

8. Select OK. The MANAGE READING BUFFERS window is displayed, showing the buffer you just

created.

Figure 109: MANAGE READING BUFFERS window

9. Press the HOME key to return to the home screen.
