15: Frequently asked questions 2470 High Voltage SourceMeter Instrument

Reference Manual

15-4 2470-901-01 Rev. A / May 2019

7. Verify that the device driver is the ausbtmc.sys driver from IVI Foundation.

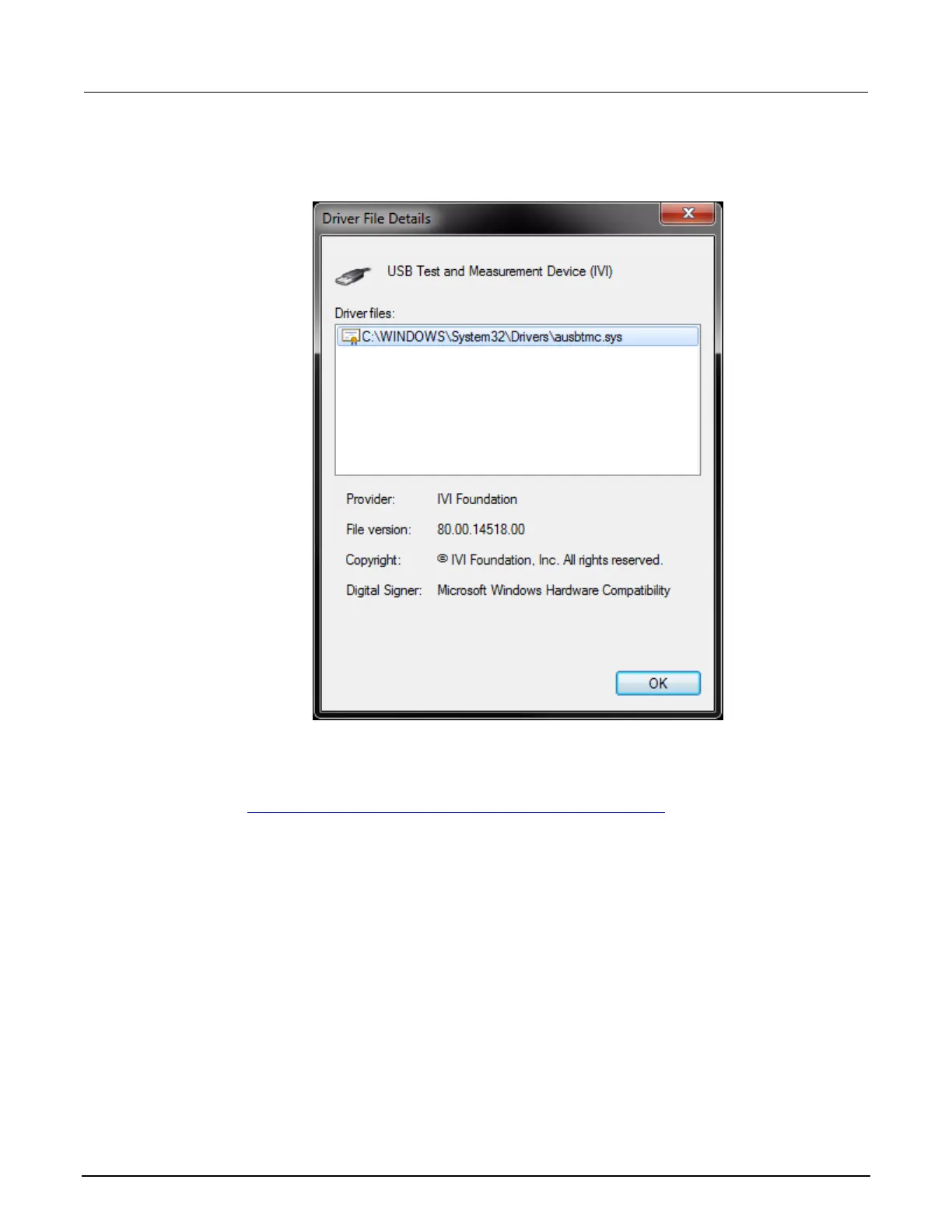

Figure 158: Driver File Details dialog box

8. If the incorrect driver is installed, click OK.

If this does not work, uninstall VISA, unplug the instrument, and follow the steps to reinstall VISA in

the section Modifying, repairing, or removing Keithley I/O Layer software (on page 2-36

Which Microsoft Windows operating systems are

supported?

Microsoft Windows 8 and Windows 10 are supported.
