Appendix

B: Status model 2470 High Voltage SourceMeter Instrument

Reference Manual

B-2 2470-901-01 Rev. A / May 2019

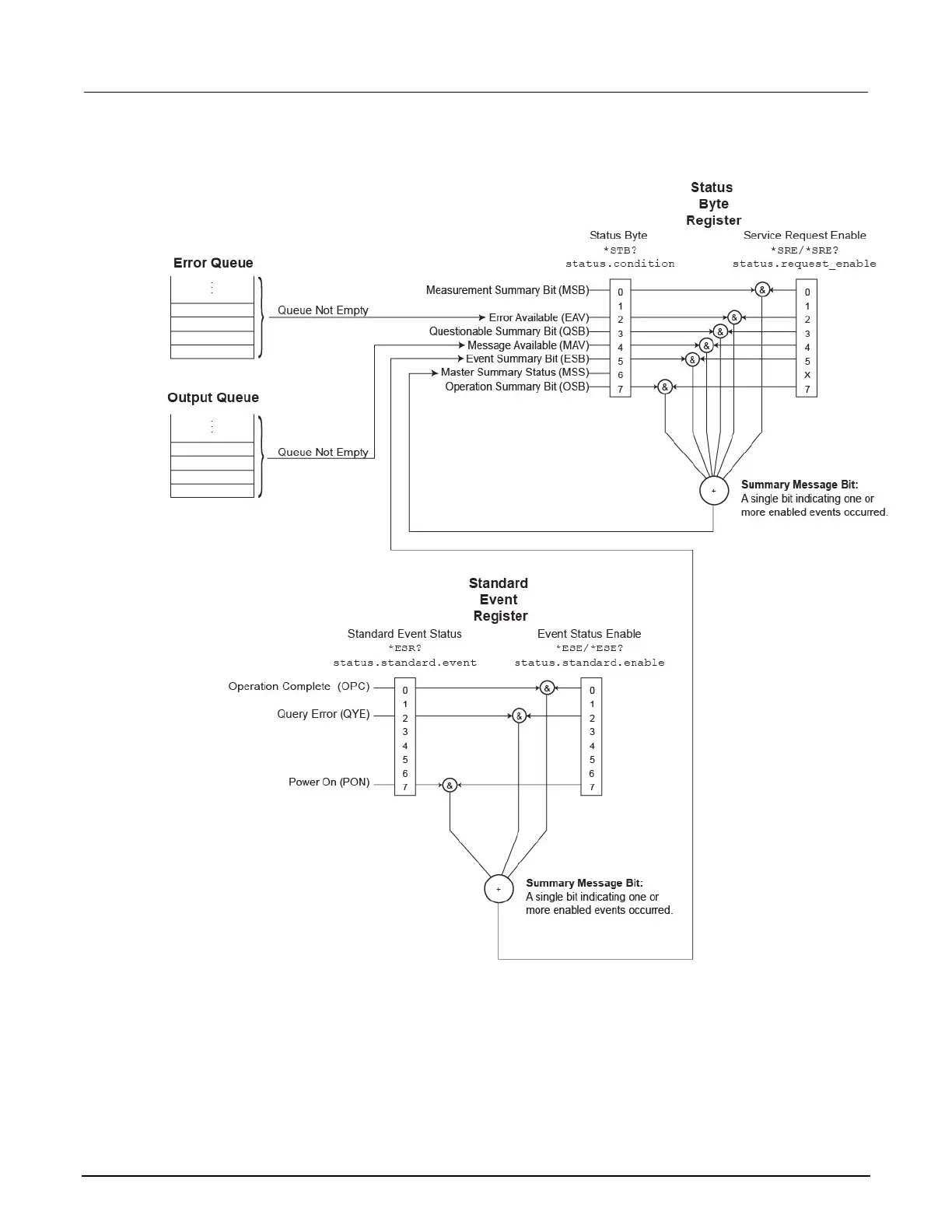

Figure 161: Non-programmable status registers diagram
