High Voltage SourceMeter Instrument Reference Manual Section 2:
2470-901-01 Rev. A / May 2019 2-7
To remove the handle assembly:
1. Grasp the sides of the handle near where it attaches to the instrument on both sides and gently
pull the handle ends apart to widen the handle as you slide it over the instrument case.

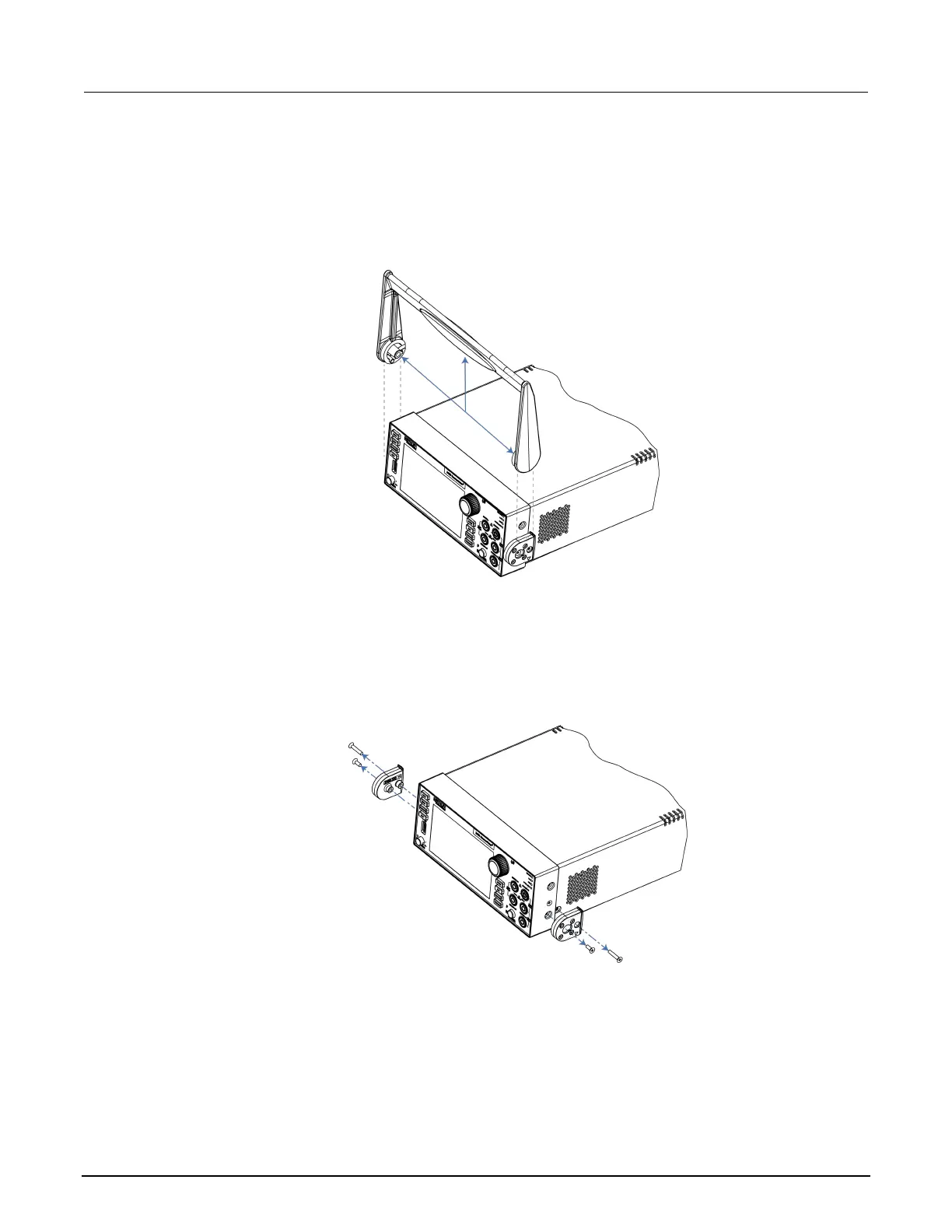

Figure 7: Removing the handle
2. Using a Phillips screwdriver, loosen and remove the two screws holding the handle-mount
assembly to one side of the 2470. The handle-mount assembly will fall away from the instrument
chassis when the screws are removed.
Figure 8: Removing the handle mount
3. Repeat step 2 on the other side of the 2470.
4. Store the handle-mount assembly, screws, and handle together for future use.
