2470

High Voltage SourceMeter Instrument Reference Manual Section 2:

Installation

2470-901-01 Rev. A / May 2019 2-5

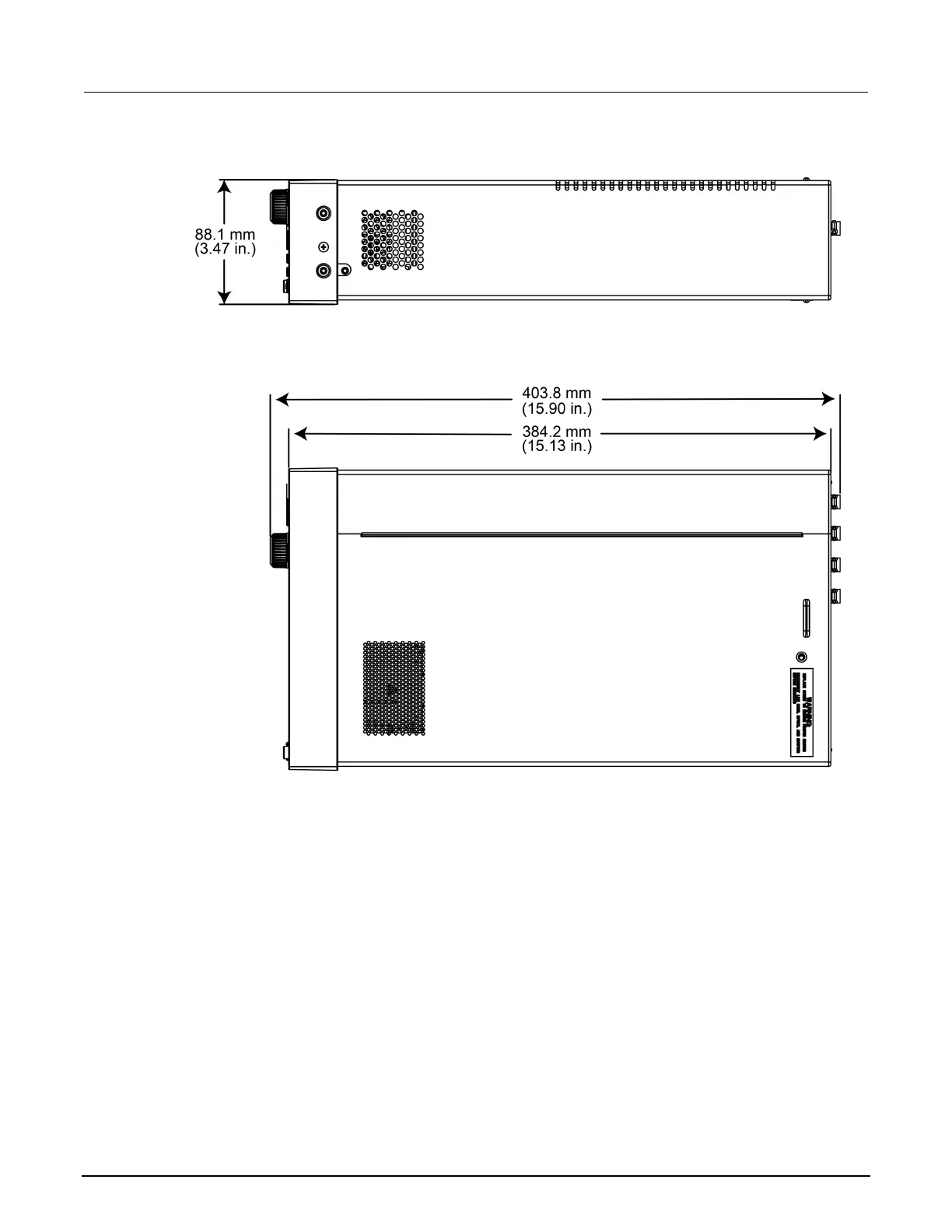

Figure 5: 2470 top and side dimensions with handle and bumpers removed
