Section

2: Installation 2470 High Voltage SourceMeter Instrument

Reference Manual

2-4 2470-901-01 Rev. A / May 2019

The following figures show the dimensions when the handle and bumpers have been removed.

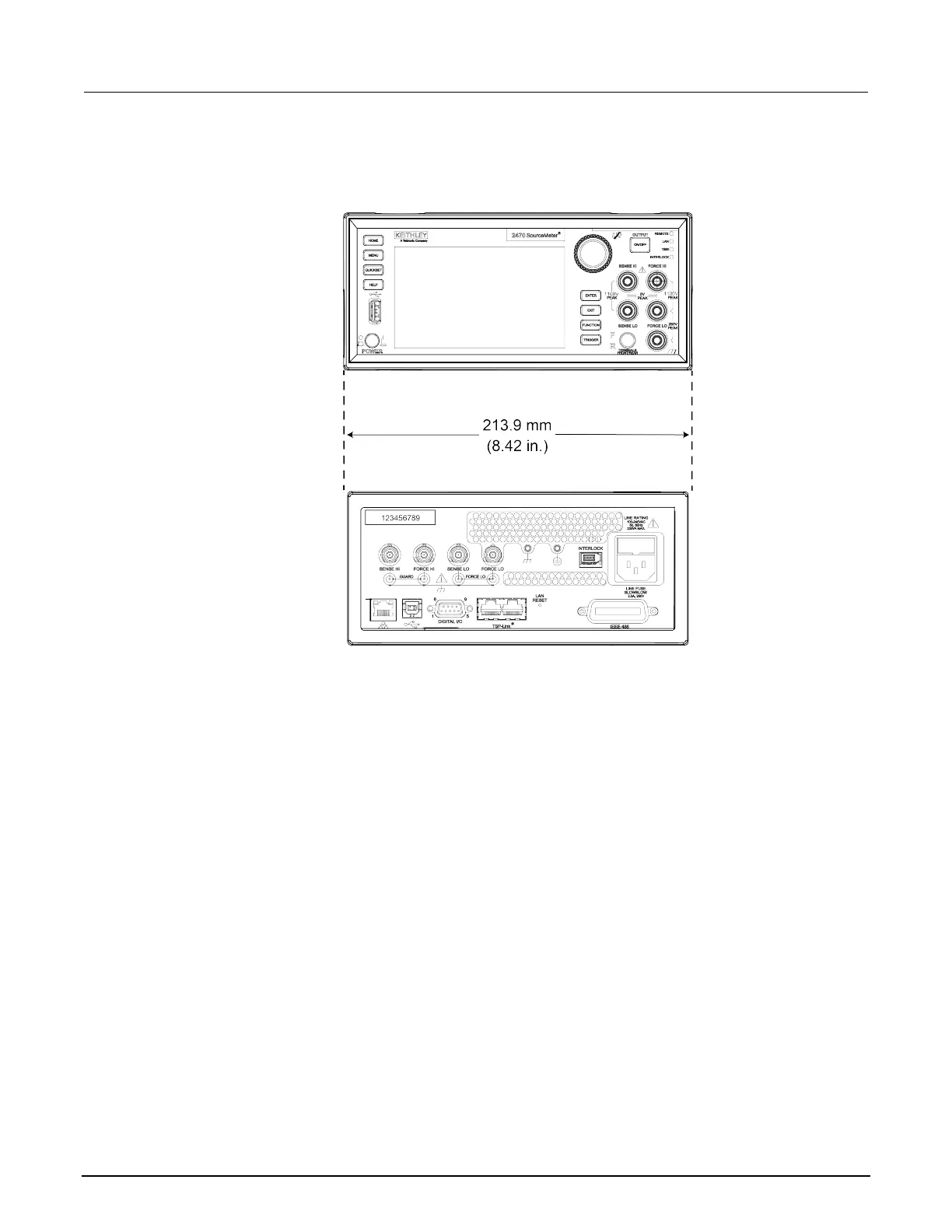

Figure 4: 2470 front and rear panel dimensions with handle and bumpers removed
