2470

High Voltage SourceMeter Instrument Reference Manual Section 6:

Reading buffers

2470-901-01 Rev. A / May 2019 6-3

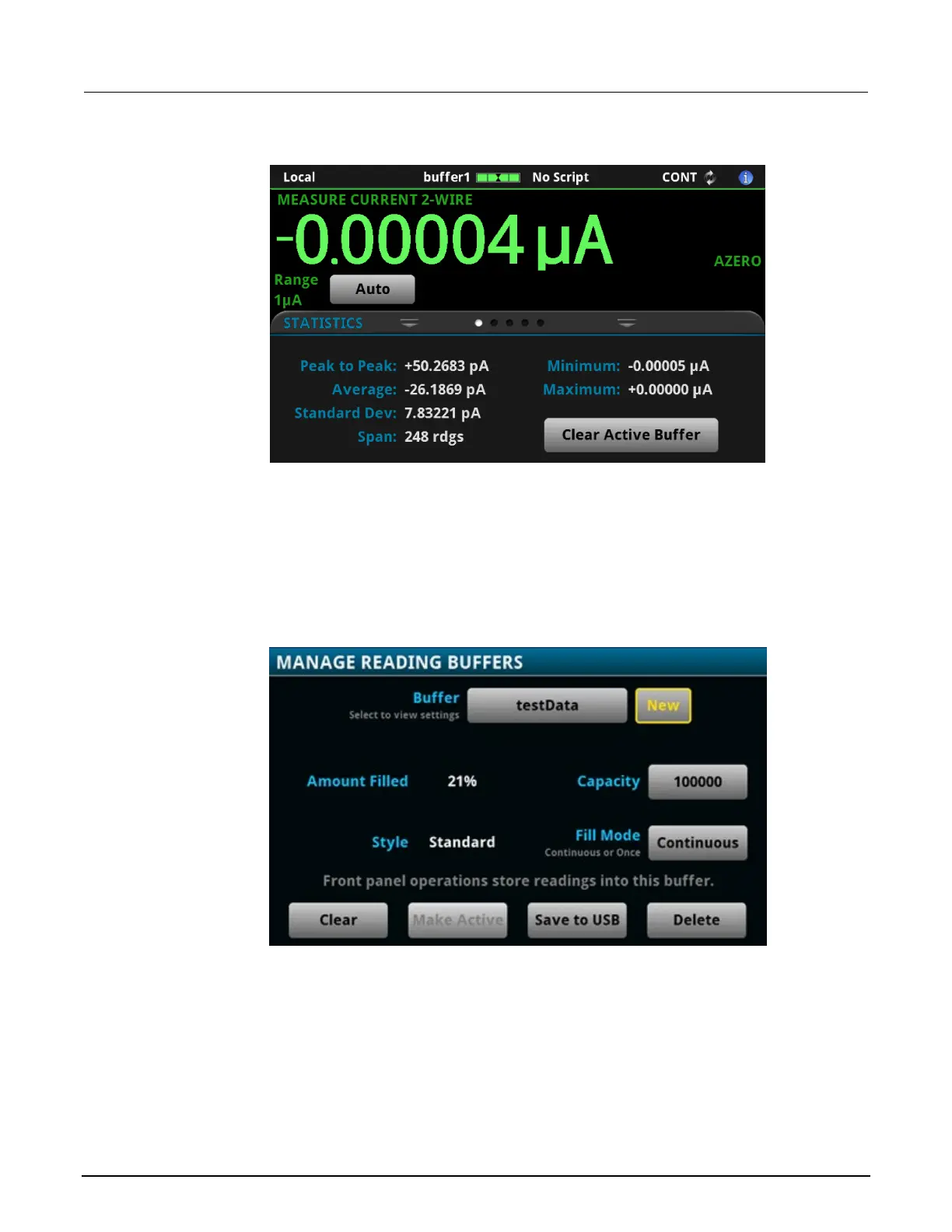

Figure 102: Statistics swipe screen and active buffer indicator

The instrument generates event code 4915, "Attempting to store past capacity of reading buffer,"

when a buffer that is set to fill once is full.

The MANAGE READING BUFFERS window displays buffer fill status as the Amount Filled, as shown

in the following figure.

Figure 103: MANAGE READING BUFFERS
