High Voltage SourceMeter Instrument Reference Manual Section 6:

Reading buffers

2470-901-01 Rev. A / May 2019 6-13

Using the front panel to set fill mode:

1. Press the MENU key.

2. Under Measure, select Reading Buffers. The MANAGE READING BUFFERS window is

displayed.

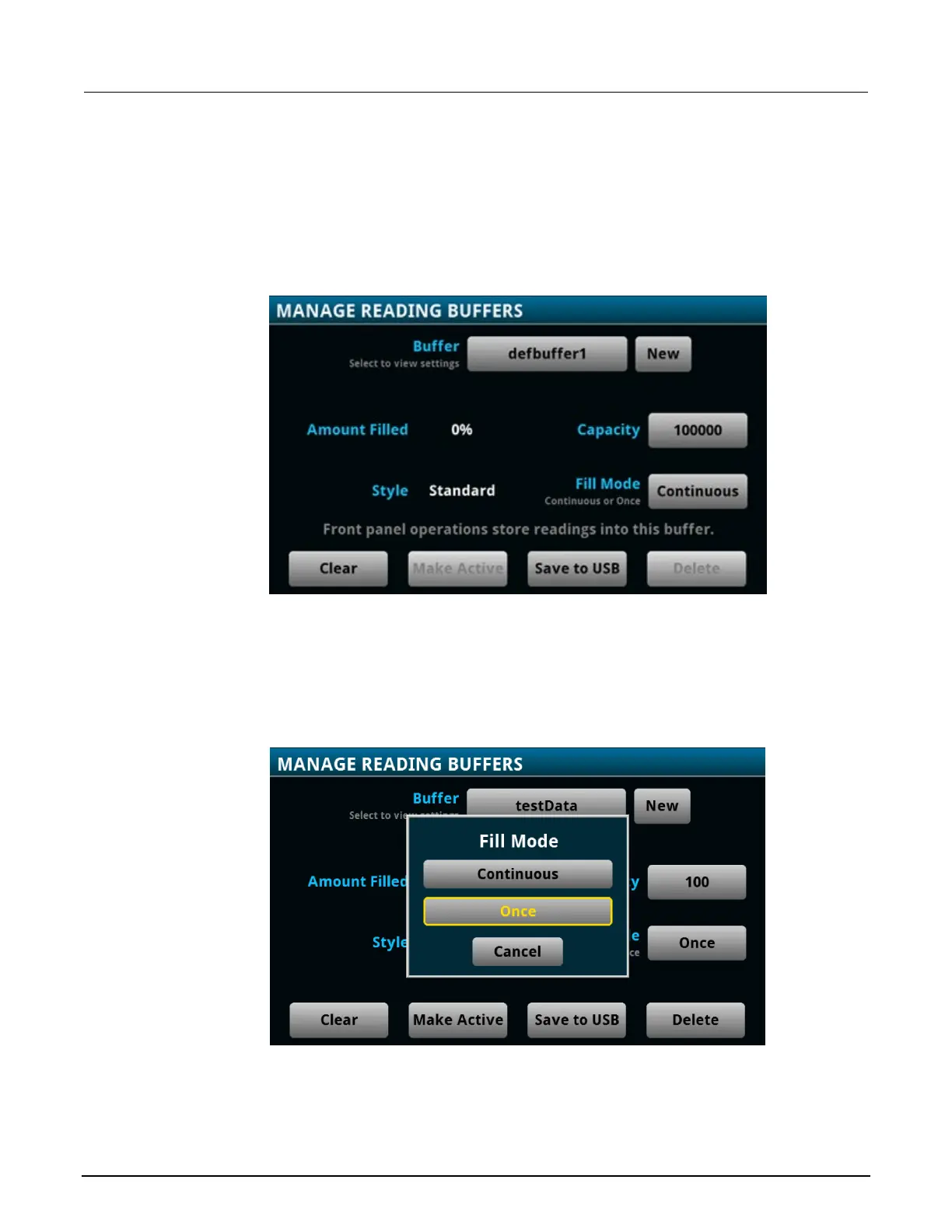

Figure 113: MANAGE READING BUFFERS window

3. Select a reading buffer from the list. For example, select testData. The settings for testData

are displayed.

4. Select the Fill Mode option.

Figure 114: Fill Mode menu

5. Press the HOME key to return to the home screen.
