2470

High Voltage SourceMeter Instrument Reference Manual Section 6:

Reading buffers

2470-901-01 Rev. A / May 2019 6-19

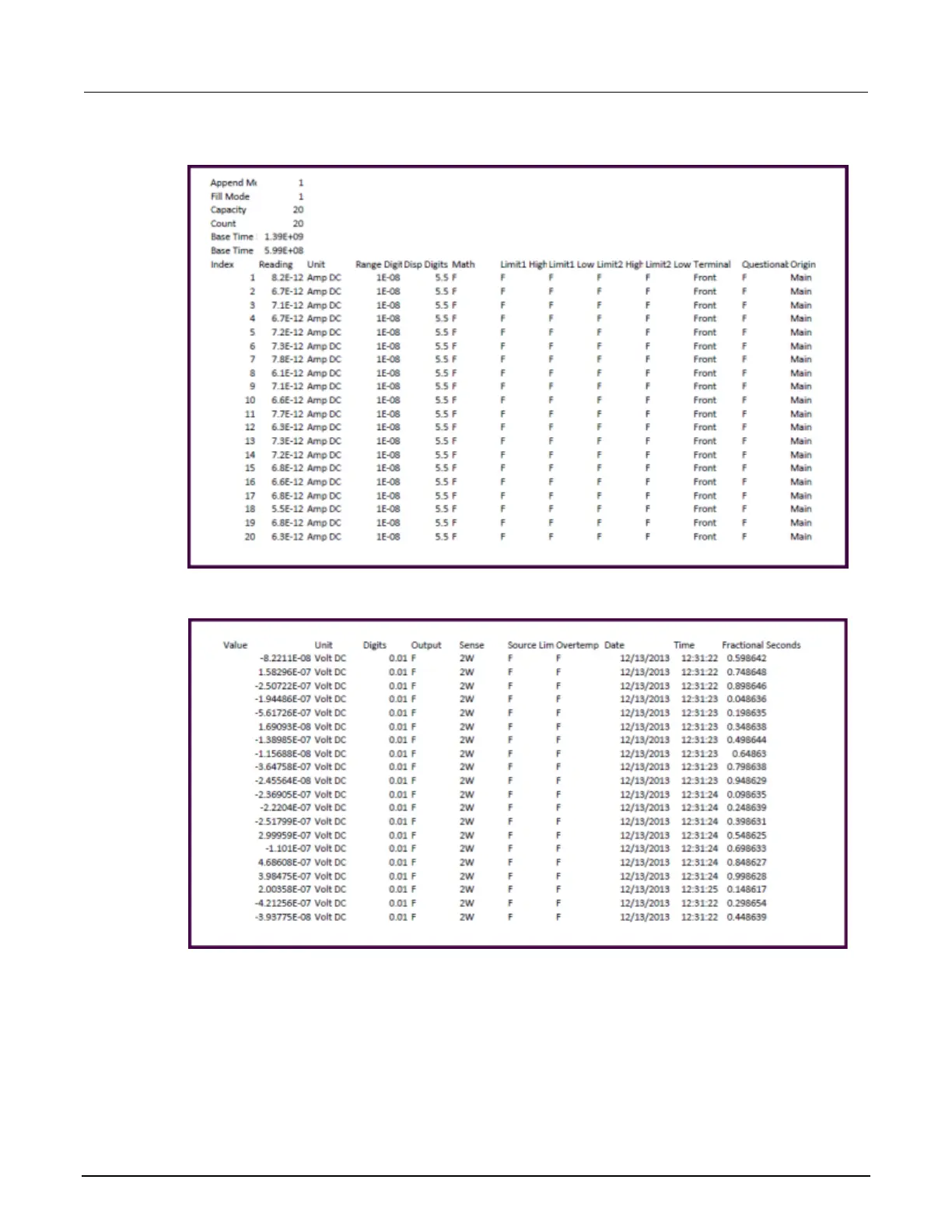

Figure 117: Example of spreadsheet with reading buffer content Sheet 1

Figure 118: Example of spreadsheet with reading buffer content Sheet 2

The following table describes the information that is stored in each column of the spreadsheet.
