9: TSP-Link and TSP-Net 2470 High Voltage SourceMeter Instrument

Reference Manual

9-2 2470-901-01 Rev. A / May 2019

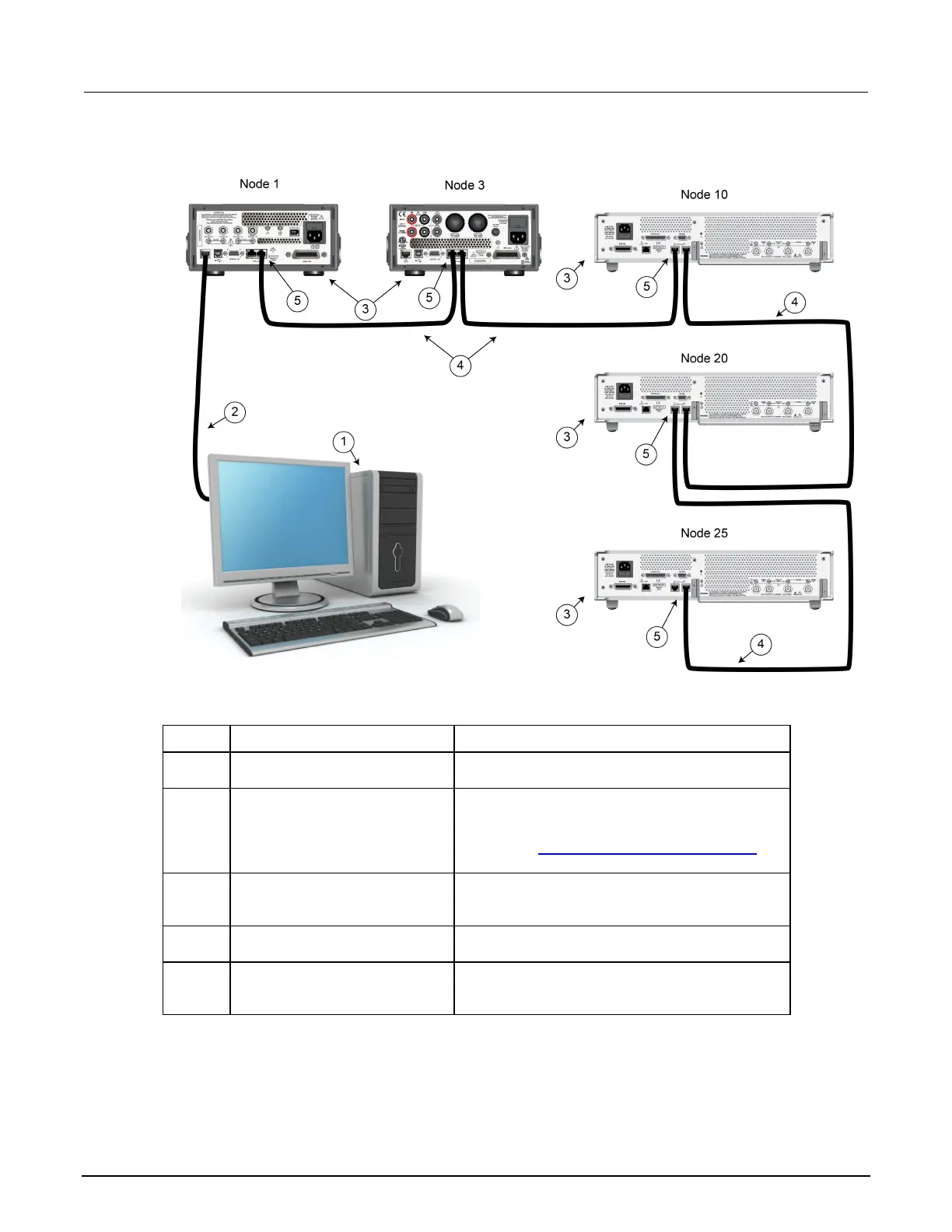

Figure 133: TSP-Link connections

Item Description Notes

Controller

Optional. A computer is not needed for stand-alone

systems.

Communication connection

Optional. Connection from controller to the master

node through GPIB, LAN, or USB. Details about

these computer communication connections are

described in Remote communications interfaces (on

page 2-9).

Nodes

You can have up to 32 nodes on the TSP-Link

system. Each node must have a unique node

number from 1 to 63.

LAN crossover cable

Type 5e category or higher; 3 meters (9.8 feet)

maximum between nodes.

5 TSP-Link connections

Each instrument has two TSP-Link connectors. You

can make the connection to either TSP-Link

connection.
