2: Installation 2470 High Voltage SourceMeter Instrument
2-22 2470-901-01 Rev. A / May 2019
Record all network configurations before modifying any existing network configuration information on
the network interface card. Once the network configuration settings are updated, the previous
information is lost. This may cause a problem reconnecting the host computer to a corporate network,
particularly if DHCP is disabled.
Be sure to return all settings to their original configuration before reconnecting the host computer to a
corporate network. Contact your system administrator for more information.
Verify the LAN connection on the 2470
Make sure that your 2470 is connected to the network by confirming that your instrument was
assigned an IP address.
To verify the LAN connection:
1. Press the MENU key.
2. Under System, select Communication.
3. Select the LAN tab.
The green LAN LED on the upper right of the front panel is on when your instrument is connected to
the network.
Use the LXI Discovery Tool
To find the IP address of the 2470, use the LXI Discovery Tool, a utility that is available from the
Resources tab of the LXI Consortium website (lxistandard.org/
).
LAN status LEDs
The figure below illustrates the two status light emitting diodes (LED) that are on the LAN port of the
instrument. The table below the figure provides explanations of the LED states.

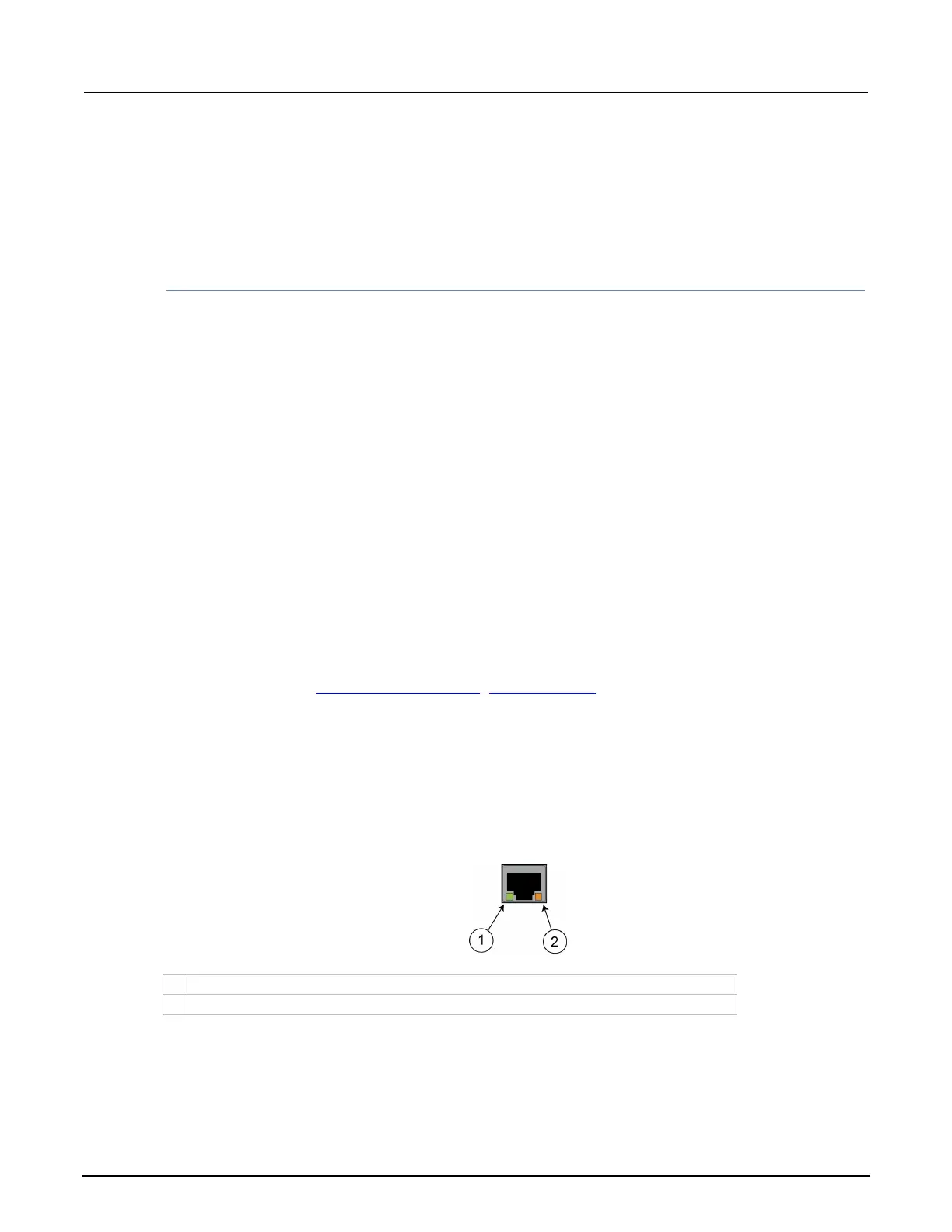

Figure 17: LAN status LEDs
When lit, indicates that the LAN port is connected to a 100 Mbps network
When blinking, indicates that the port is receiving or sending information
If neither LED is lit, the network is not connected.
