High Voltage SourceMeter Instrument Reference Manual Section 2:

Installation

2470-901-01 Rev. A / May 2019 2-27

3. Select Next. The Select Communication Bus dialog box is displayed.

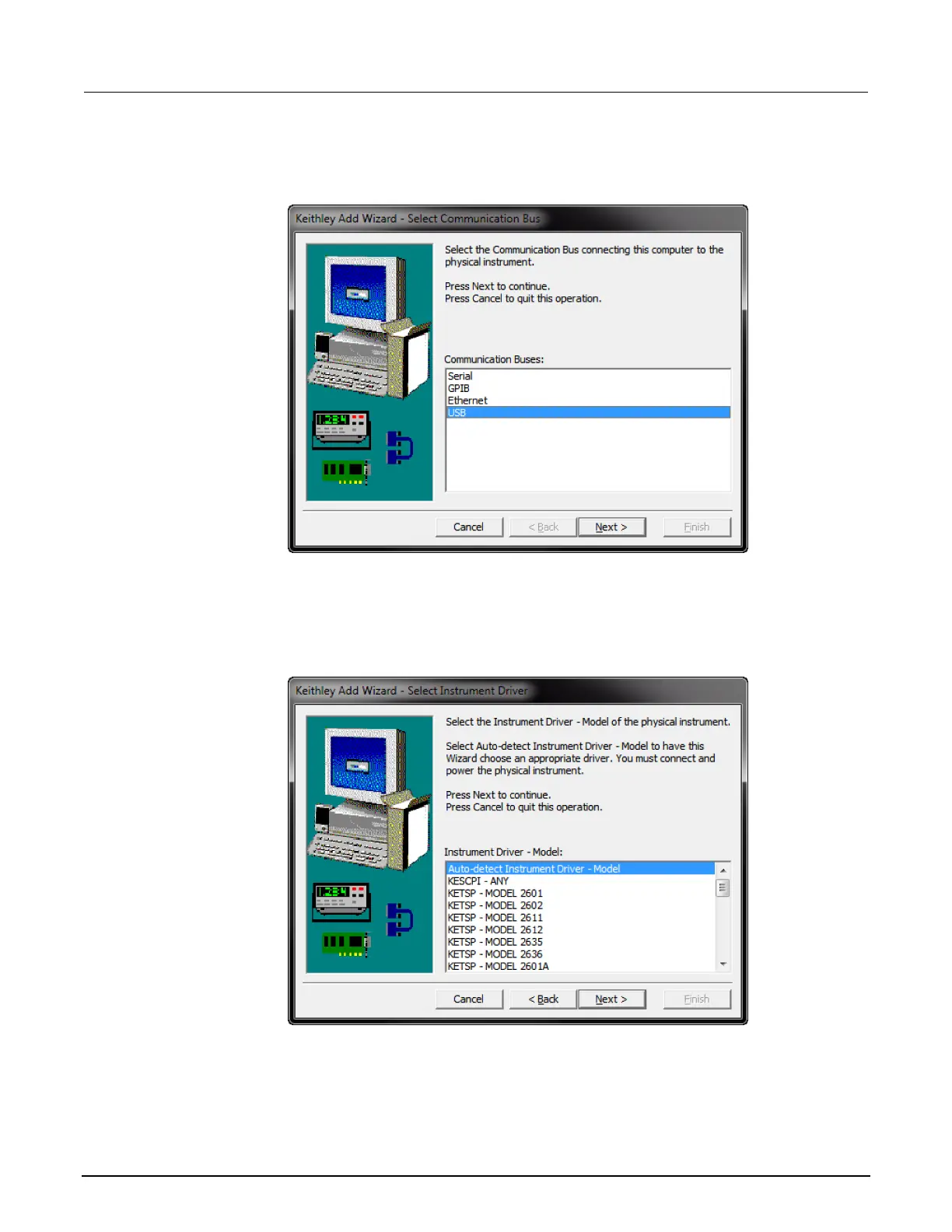

Figure 19: Select Communication Bus dialog box

4. Select USB.

5. Click Next. The Select Instrument Driver dialog box is displayed.

Figure 20: Select Instrument Driver dialog box
