3: Instrument description 2470 High Voltage SourceMeter Instrument
3-18 2470-901-01 Rev. A / May 2019

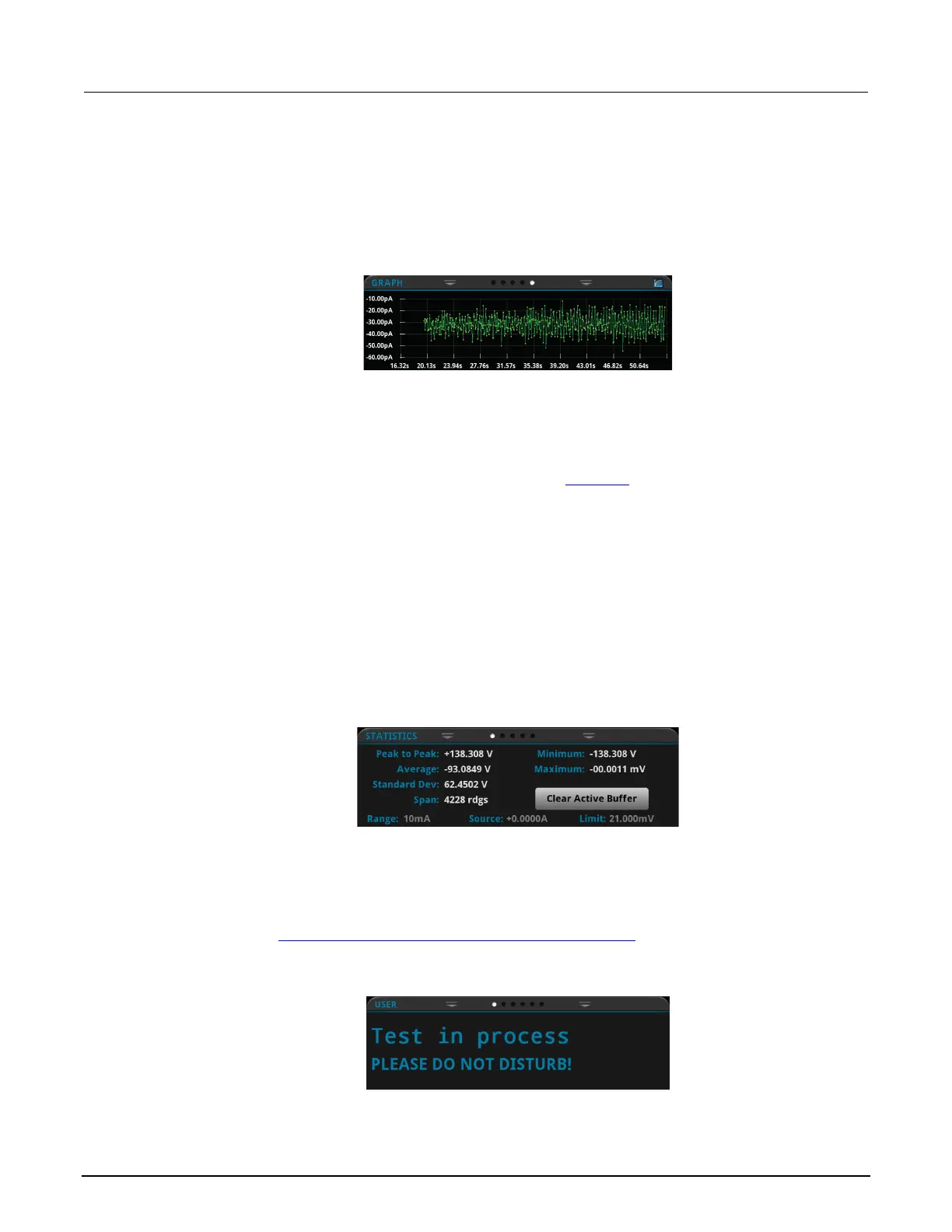

GRAPH swipe screen
The GRAPH swipe screen shows a graphical representation of the readings in the presently selected
reading buffer.
Figure 43: GRAPH swipe screen
To view the graph in the full screen and to access graph settings, select the graph icon on the right
side of the swipe screen header. You can also open the full-function Graph screen by pressing the
MENU key and selecting Graph under Views.
For more information about graphing measurements, see Graphing (on page 7-1
).
STATISTICS swipe screen
The STATISTICS swipe screen contains information about the readings in the active reading buffer.
When the reading buffer is configured to fill continuously and overwrite old data with new data, the
buffer statistics include the data that was overwritten. To get statistics that do not include data that
has been overwritten, define a large buffer size that will accommodate the number of readings you
will make. You can use the Clear Active Buffer button on this screen to clear the data from the active
reading buffer.
Figure 44: STATISTICS swipe screen
USER swipe screen
If you program custom text, it is displayed on the USER swipe screen. For example, you can program
the 2470 to show that a test is in process. For details about using remote commands to program the
display, refer to Customizing a message for the USER swipe screen (on page 3-42
).
Figure 45: USER swipe screen
