High Voltage SourceMeter Instrument Reference Manual Appendix B:
2470-901-01 Rev. A / May 2019 B-11
When using the GPIB, USB, or VXI-11 serial poll sequence of the 2470 to get the status byte (serial
poll byte), bit B6 is the RQS bit. See Serial polling and SRQ (on page B-13
) for details on using the
serial poll sequence.
When using the *STB? common command or status.condition command to read the status byte,
bit B6 is the MSS bit.
To reset the bits of the Service Request Enable Register to 0, use 0 as the parameter value for the
command (for example, *SRE 0 or status.request_enable = 0).
You can read and set which bits to AND in the Status Byte Register using the following commands.
Description SCPI command TSP command
Read the Status Byte Register
status.condition (on page 14-179)
Read the Status Request Enable
Register
status.request_enable (on page
14-188)
Enable bits in the Status Request
Enable Register
status.request_enable (on page
14-188)
Status Byte Register diagram
The Status Byte Register consists of two 8-bit registers that control service requests, the Status Byte
Register and the Service Request Enable Register. These registers are shown in the following figure.

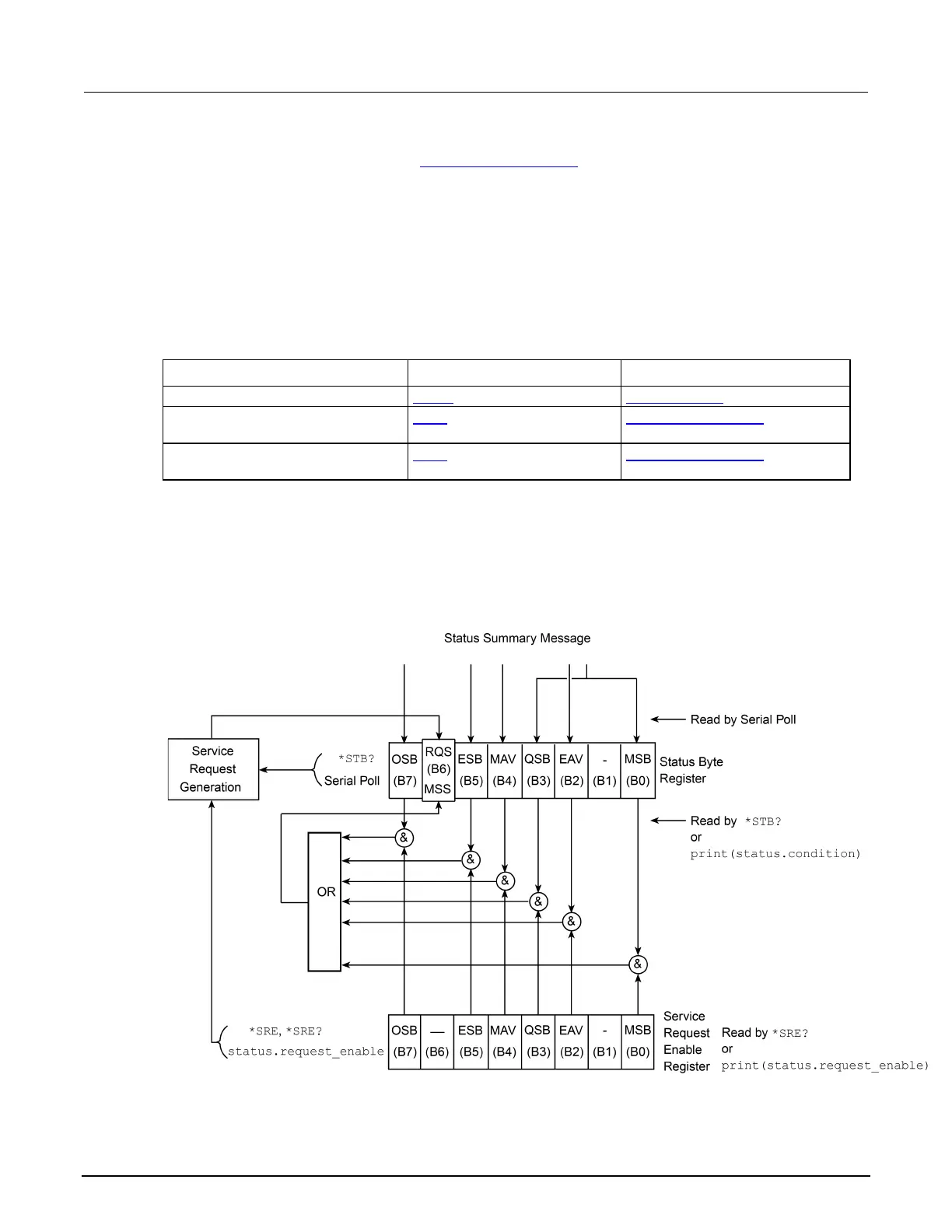

Figure 164: 2470 Status Byte Register
