Xerox WorkCentre 6505 Service Manual

4-10 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
General Troubleshooting

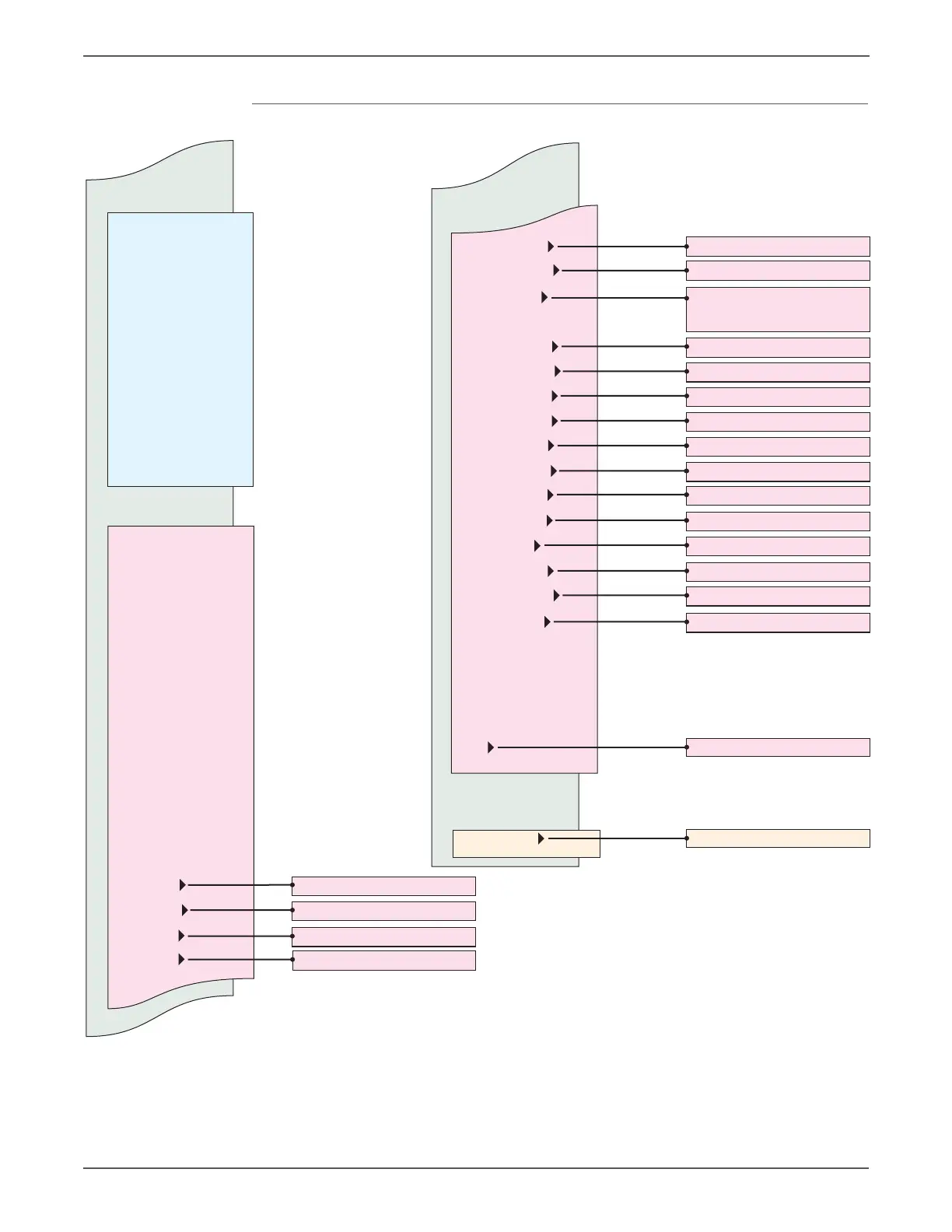

Printer Diagnostic Menu Map Page 2
Test Print
Parameter
Parameter (Cont.)
No Image IOT
Pattern IOT
Grid2 ESS
Cyan 20% ESS
Magenta 20% ESS
Yellow 20% ESS
Black 20% ESS
CMY 20% ESS
Gradation ESS
TonerPalletCheck
ContaminationChk
Exit Mode
Complete Exit
Slow Scan KtoP
Slow Scan 600M
Slow Scan 600Y
Slow Scan 600C
Fast Scan KtoM
Fast Scan KtoY
Fast Scan KtoC
Fast Scan M-Feed
Fast Scan Tray1
Fast Scan Tray2
Fast Scan Duplex
Fast Scan 2 KtoM
Fast Scan 2 KtoY
Fast Scan 2 KtoC
Life Y Toner
Life M Toner
Life C Toner
Life K Toner
Life Fuser Sheet
Life Printer Sheet
Life DTB Waste
Life YWasteToner
Life MWasteToner
Life CWasteToner
Life KWasteToner
Life IU Y Time
Life IU M Time
Life IU C Time
Life IU K Time
Life IU Xero
Life IU Deve K
Life Manual Feed
Life Tray 1 Sheet
Life Tray 2 Sheet
Life Duplex Sheet
Life Custom In
Life Custom Out
Print
Life Y Toner: 0
Life YWaste Toner: 0
Life MWaste Toner: 0
Life CWaste Toner: 0
Life KWaste Toner: 0
Life IU Y: 0
Life IU M: 0
Life IU C: 0
Life IU K: 0
Life IU Xero: 0
Life IU Deve K: 0
Life Manual Feed: 1
Life Tray: 100
Ready
3
Exit?
Life M Toner: 0
Life C Toner: 0
Life K Toner: 0
Life Fuser: 0
Life Printer: 0
Read
Initialize
2
s6500-094
2
Resets counter when Transfer Unit is replaced
3
Prints current parameters
