Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 4-25
General Troubleshooting

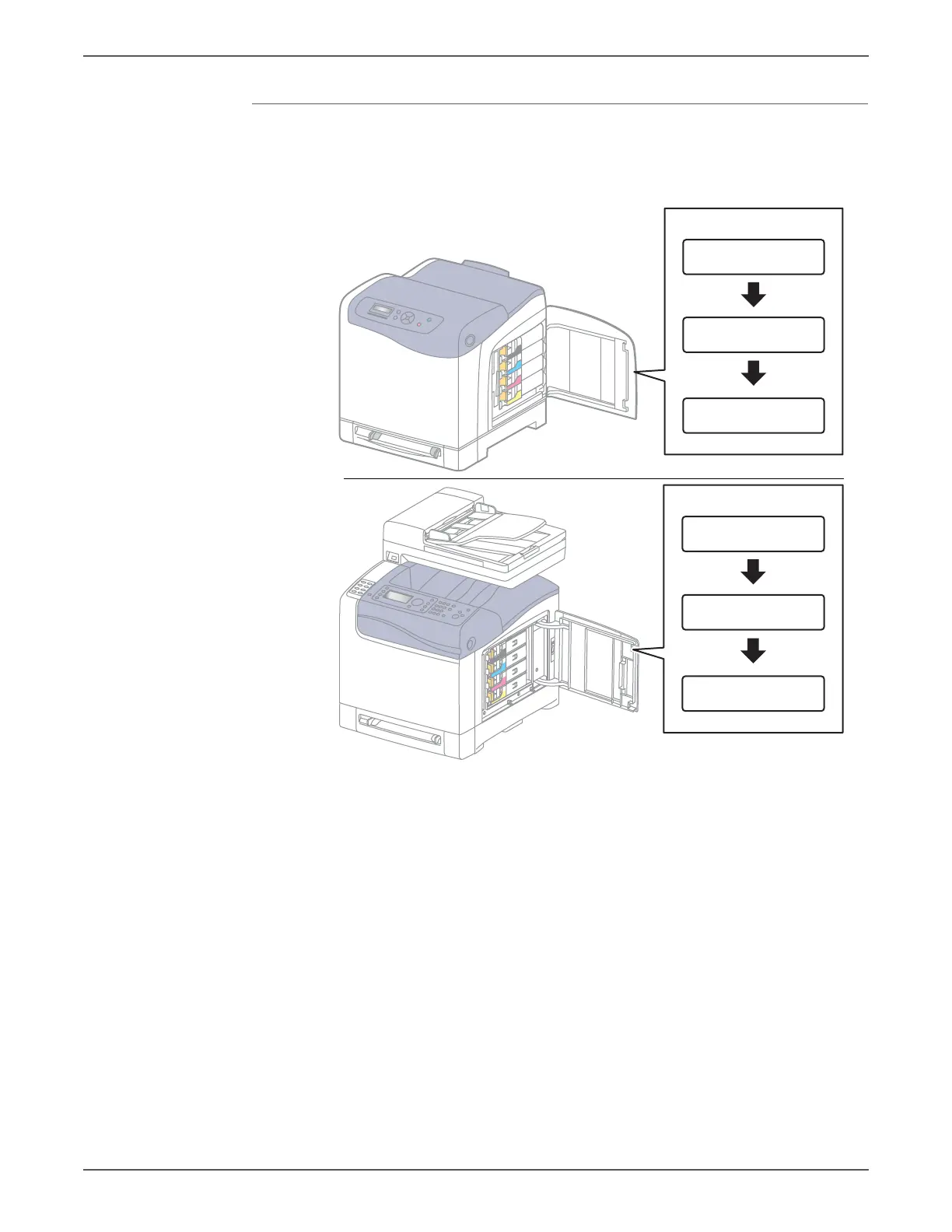

Side (Toner Door) Switch
1. Enter Service Diagnostics (page 4-8).
2. Run the Side Switch test: Engine Diag > Sensor Test > Side Switch.
3. Open and close the Toner Door while checking the display.
Note
Press Cancel to stop the test.
Control Panel
Normal
Side Switch
L - 00
Side Switch
H - 00
Side Switch
L - 01
s6500-114
Control Panel
Normal
s6500-113
Side Switch
L - 00
Side Switch
H - 00
Side Switch
L - 01

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
