4-26 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
General Troubleshooting
Cover Open Sensor (Interlock Switch)
1. Enter Service Diagnostics (page 4-8).
2. Run the Interlock Switch test: Engine Diag > Sensor Test > Cover Open
Sensor.

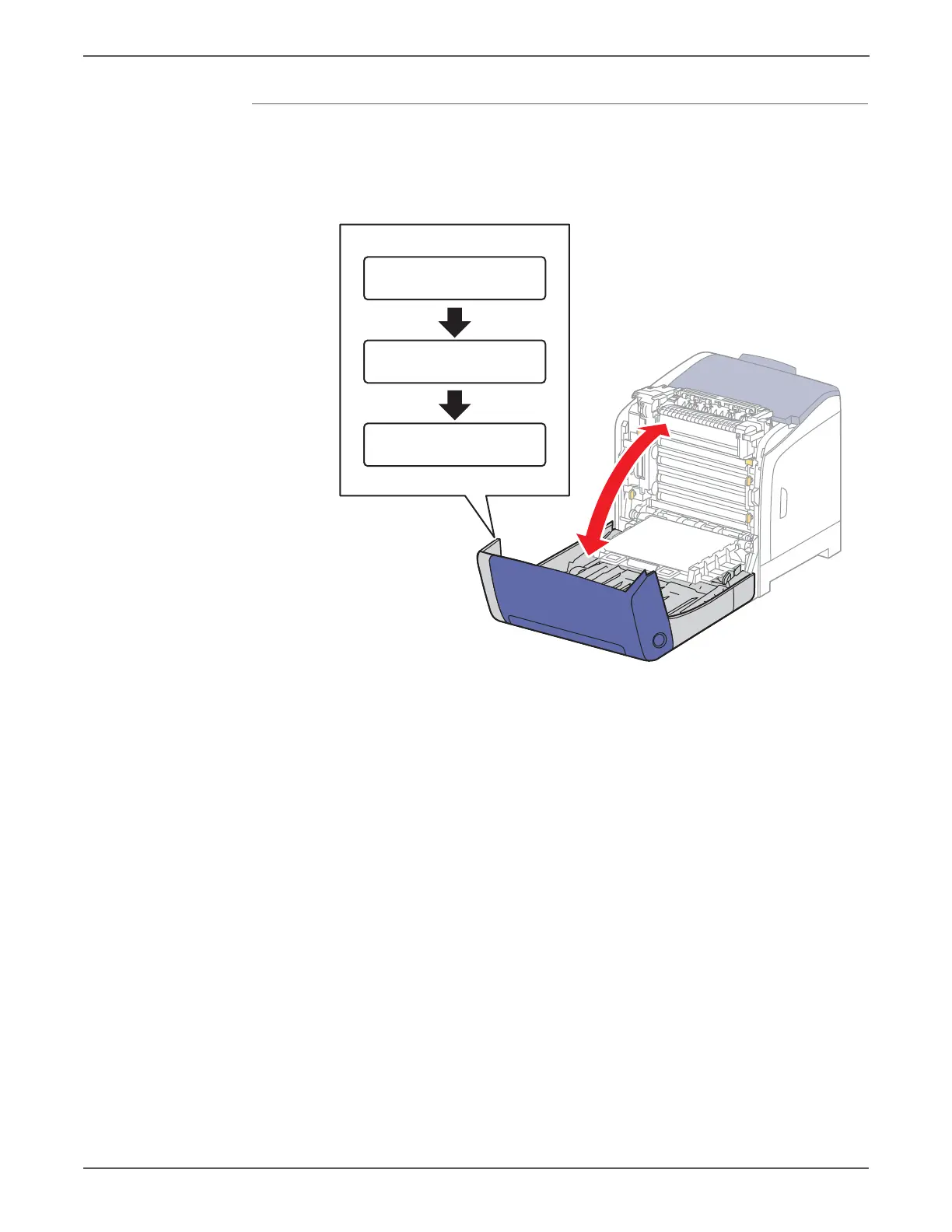

3. Open and close the Front Door while checking the Control Panel display.
Note
Press Cancel to stop the test.
Control Panel
Normal
s6500-115
Cover Open Sensor
L - 00
Cover Open Sensor
H - 00
Cover Open Sensor
L - 01
