Xerox WorkCentre 6505 Service Manual

4-28 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
General Troubleshooting

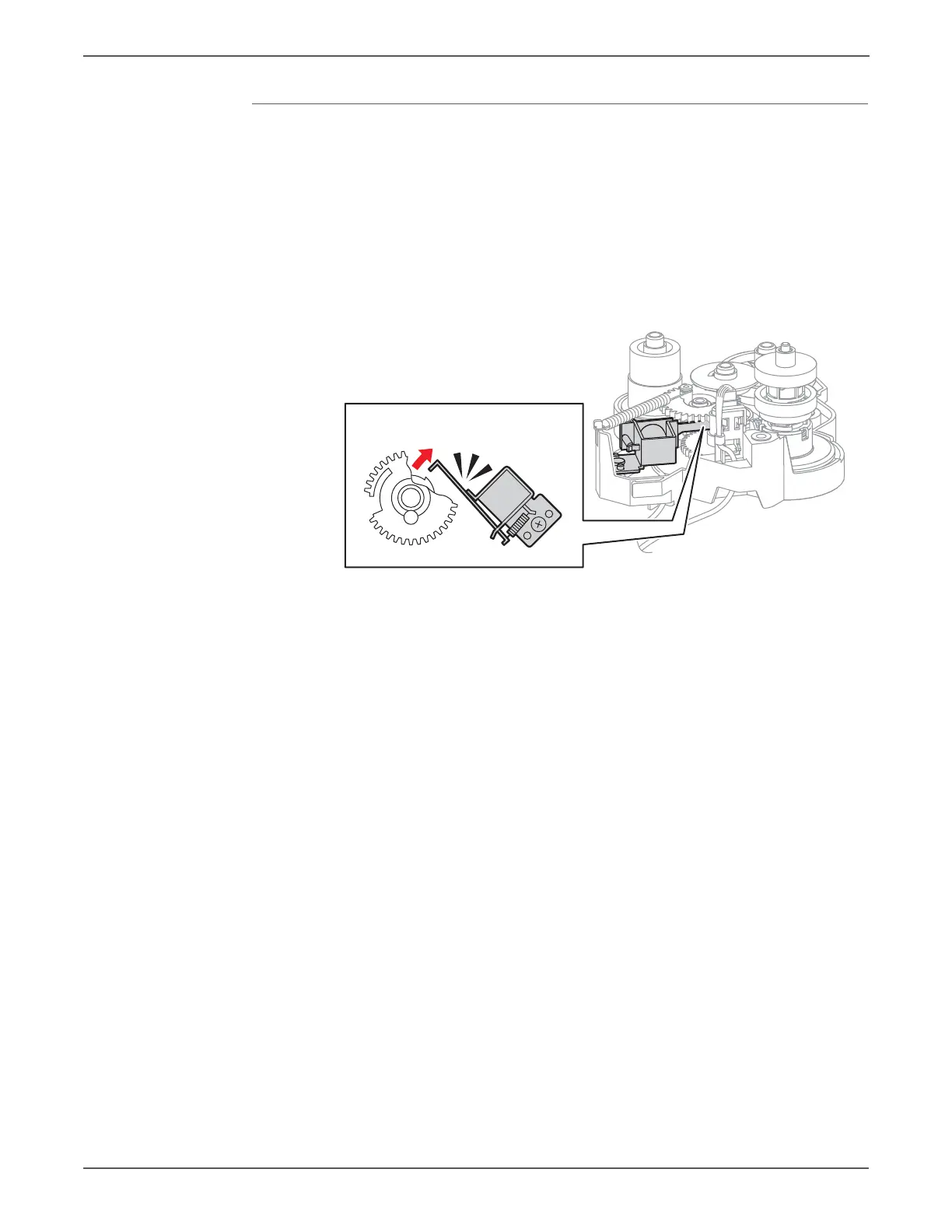

K Mode Solenoid
The K Mode Solenoid shifts the gear drive depending on color or mono mode.
Note
Close the Interlock Switch to provide power to the device under test.
1. Remove the Feed Drive Assembly (page 8-117), but leave the harness
connected.
2. Enter Service Diagnostics (page 4-8).
3. Run the K Mode Solenoid test: Engine Diag > Motor Test > K Mode Solenoid.
Note
Press Cancel to stop the test.
s6500-118
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
