Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 4-29
General Troubleshooting
Main Drive Assembly

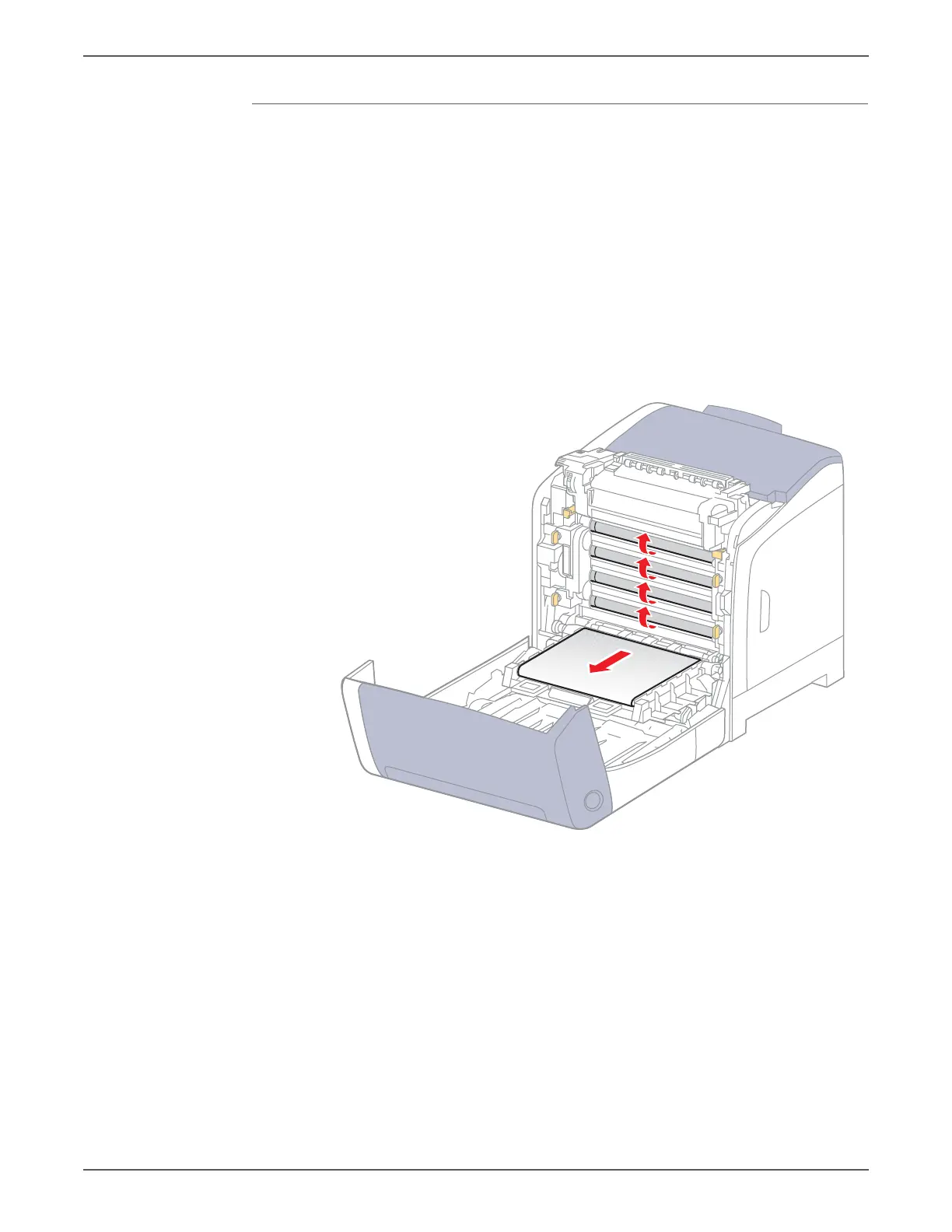

The Main Drive Assembly drives the Transfer Belt and Imaging Unit drums.
Note
Close (cheat) the Interlock Switch to provide power to the device under test.
1. Enter Service Diagnostics (page 4-8).
2. Remove Tray 1.
3. Open the Front Cover.
4. Lower the Transfer Belt.
5. Run the Main Motor test: Engine Diag > Motor Test > Main Motor Full2,
Full1, Half.
6. Verify that the Imaging Unit drums are rotating, and Transfer Belt is moving.
Note
Press Cancel to stop the test.
s6500-119

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
