8-52 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly

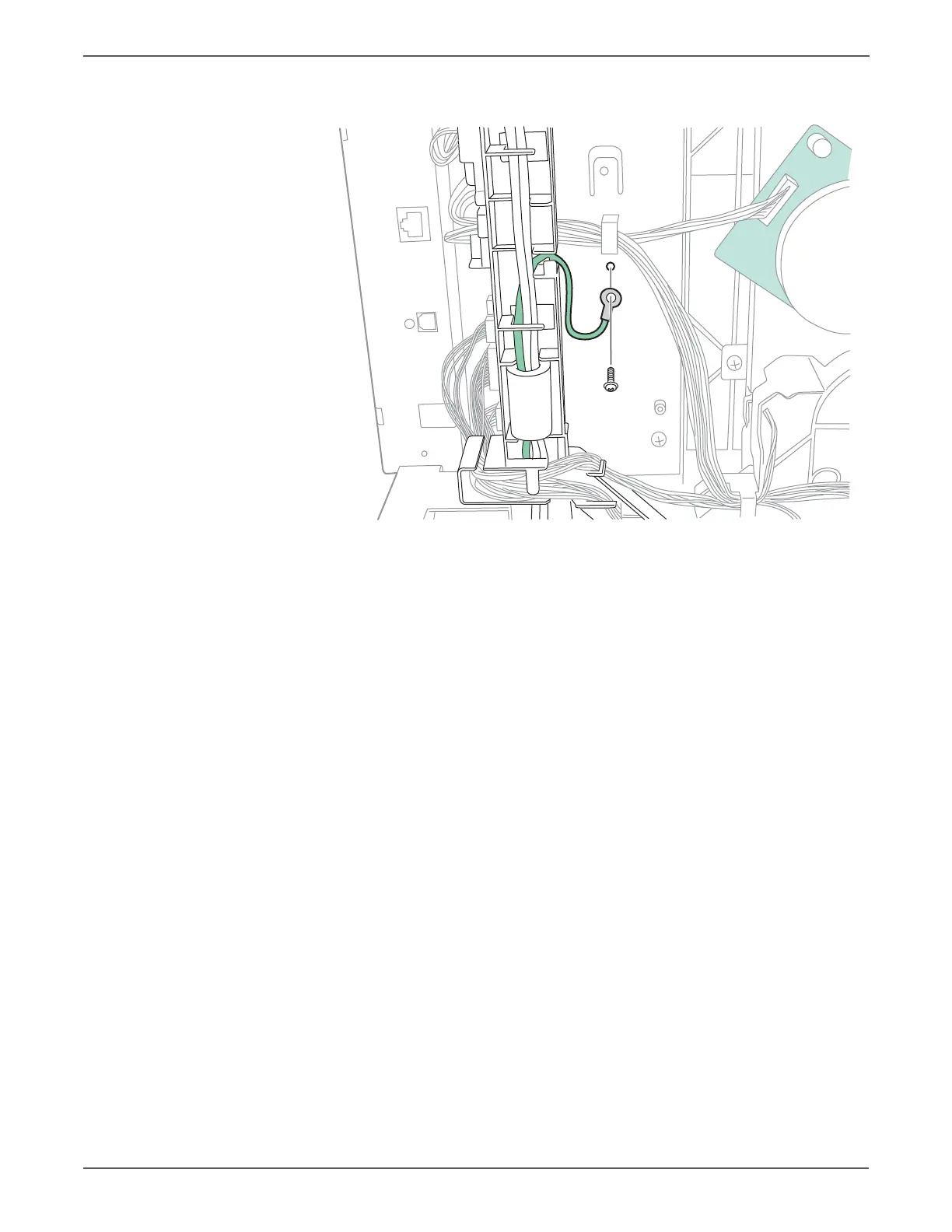

14. Remove the screw (silver, with washer, 6mm) that secures the earth ground
harness to the chassis.
s6500-231
