Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-53
Service Parts Disassembly

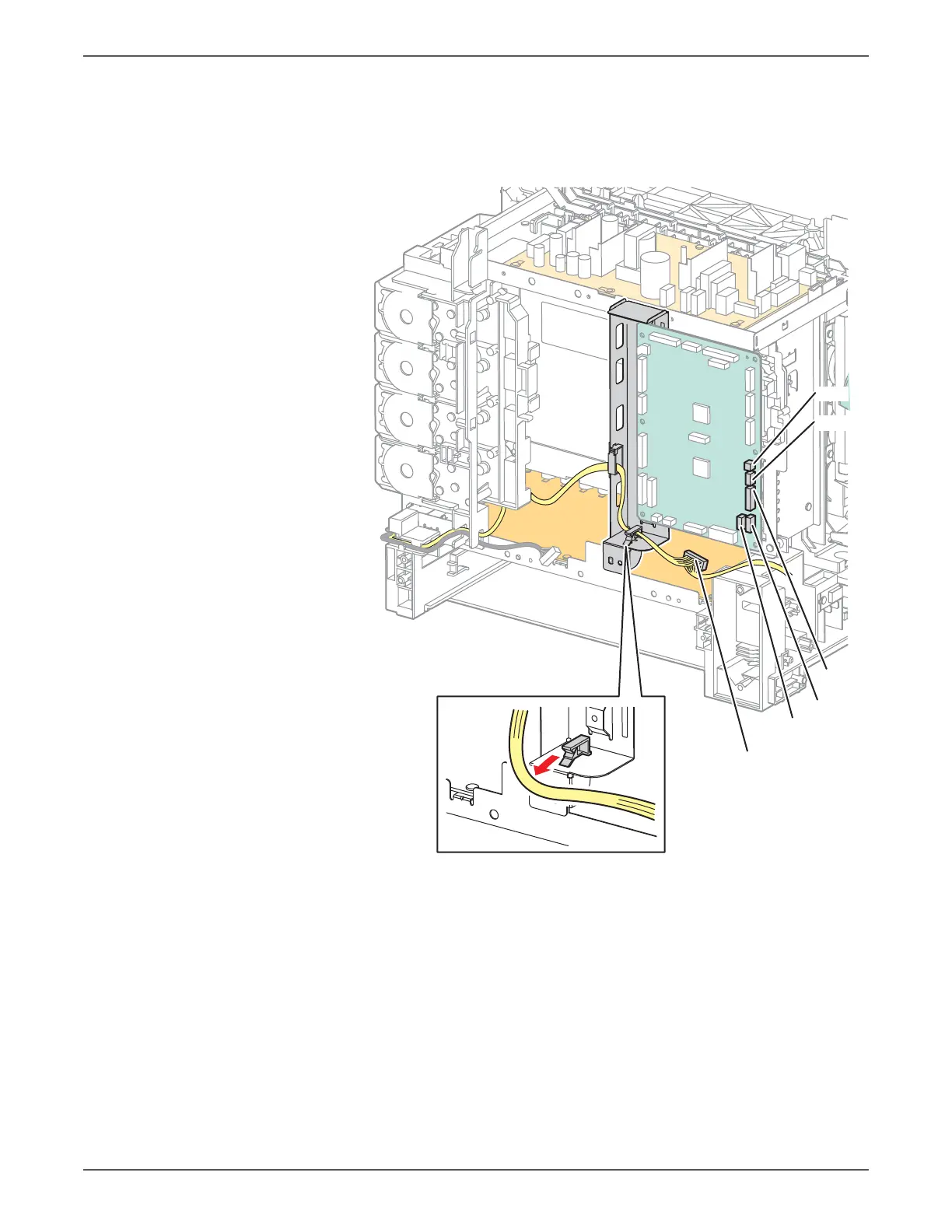

15. Disconnect P/J27 from the MCU Board.
16. Release the Duplexer part of the option harness from the clamp and the edge
saddle on the right MCU Bracket.
17. Release the option harness and the Control Panel harness B from the hooks of
the Dispense Assembly.
18. Disconnect P/J20, P/J23, and P/J28 from the MCU Board, but do not release
the wires from the AC Harness Guide.
19. Disconnect P/J24 and P/J26 from the MCU Board, and release the wires from
the hooks and the harness guide channels.
20. Disconnect P/J16 from the bottom of the MCU Board.
s6500-233
P/J27
P/J26
P/J24
P/J20
P/J28
P/J23

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
