8-102 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly

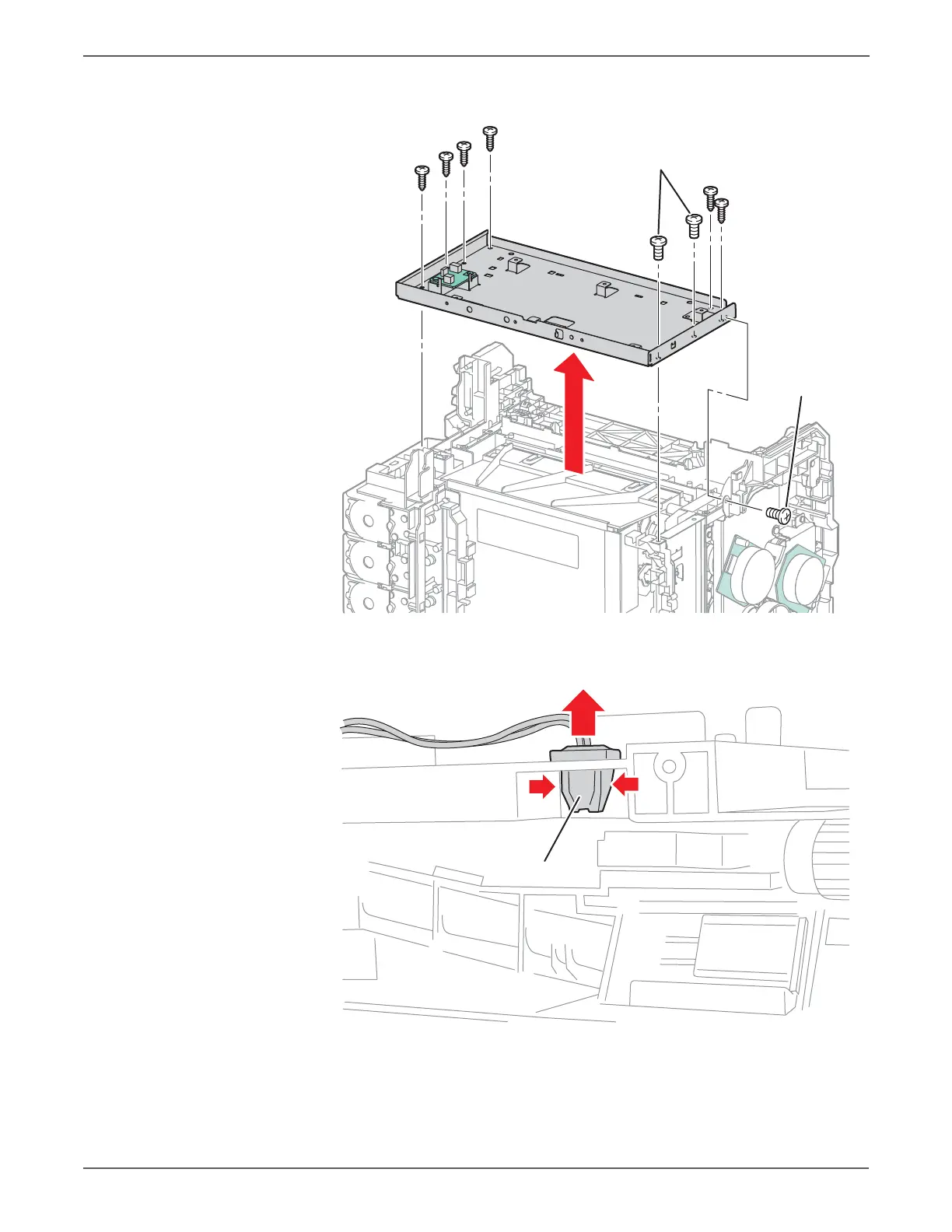

17. Remove three screws (silver, M4, 6mm) and 6 screws (silver, tap, 8mm) that
secure the LVPS Frame to the chassis.
18. Release the hook of the connector of the MCU HAN Harness using a pliers,
and then remove it from the Dispenser Assembly.
19. Remove all harnesses from the Dispenser Assembly guides.
s6500-270
Silver, M4, 6mm
Silver, M4, 6mm
s6500-280
P/J5041
