Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-193
Service Parts Disassembly

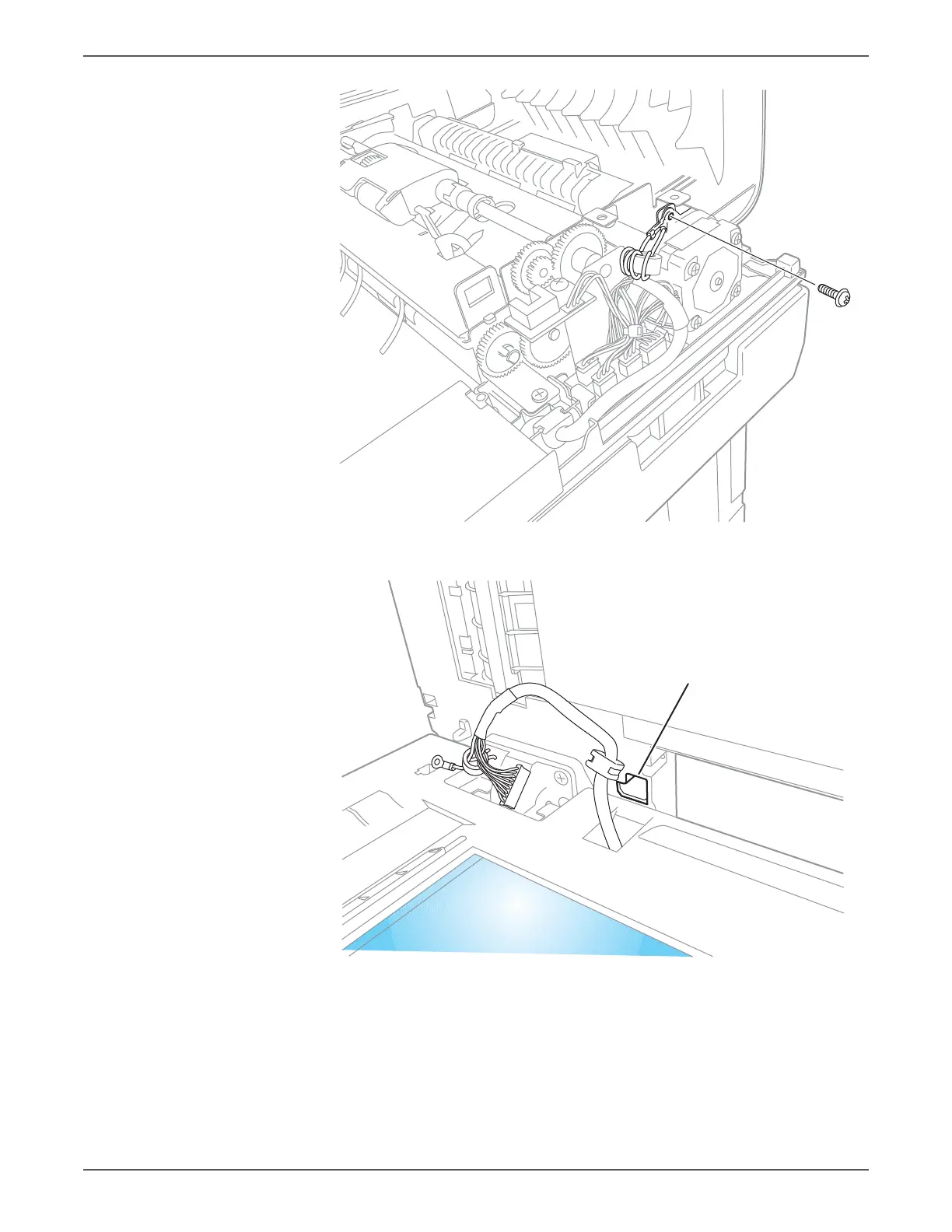

6. Disconnect P/J ADF1 and release the rubber strain relief from the frame.
7. Feed the harness through the hole in the ADF.
8. Release the hook of the Right Counter Balance using a miniature screwdriver,
then remove the Right Counter Balance from the IIT Sub-Assembly.
s6500-376
s6500-377
Opening
To Next Page
