8-194 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly
9. Tilt the ADF Assembly to the right, and release the tab of the Left Counter
Balance.

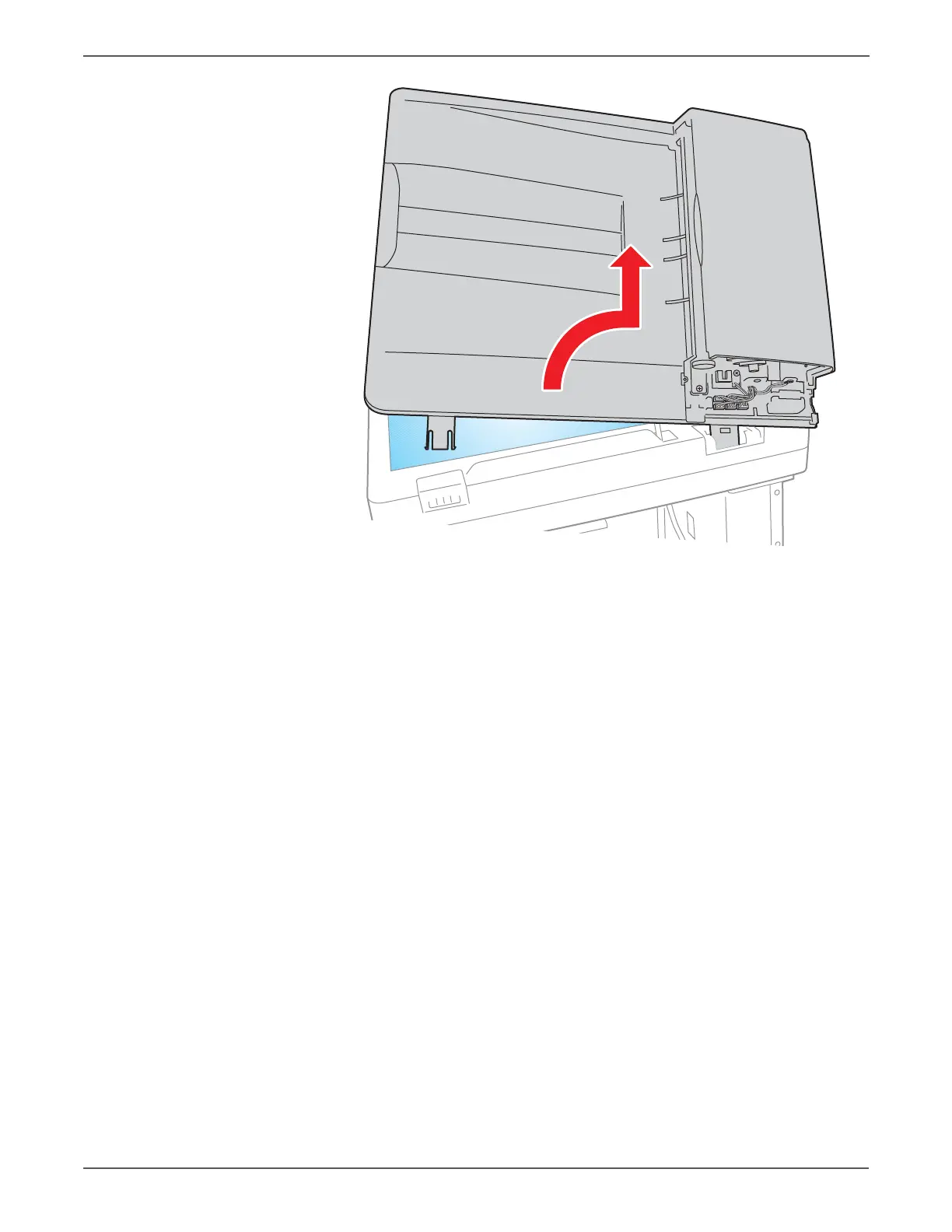

10. Lift the ADF Assembly and remove the ADF Harness from the hole of the ADF
Assembly to remove the ADF Assembly from the IIT Sub-Assembly.
s6500-378
