Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 8-199
Service Parts Disassembly
17. Disconnect P/J1003 on the Image Processor Board and pull it through the
hole in the chassis.
18. Disconnect the ribbon cable from P/J1001 on the Image Processor Board.
Caution
The Ferrite Core is extremely fragile. Use care when removing the
core from the ribbon cable.

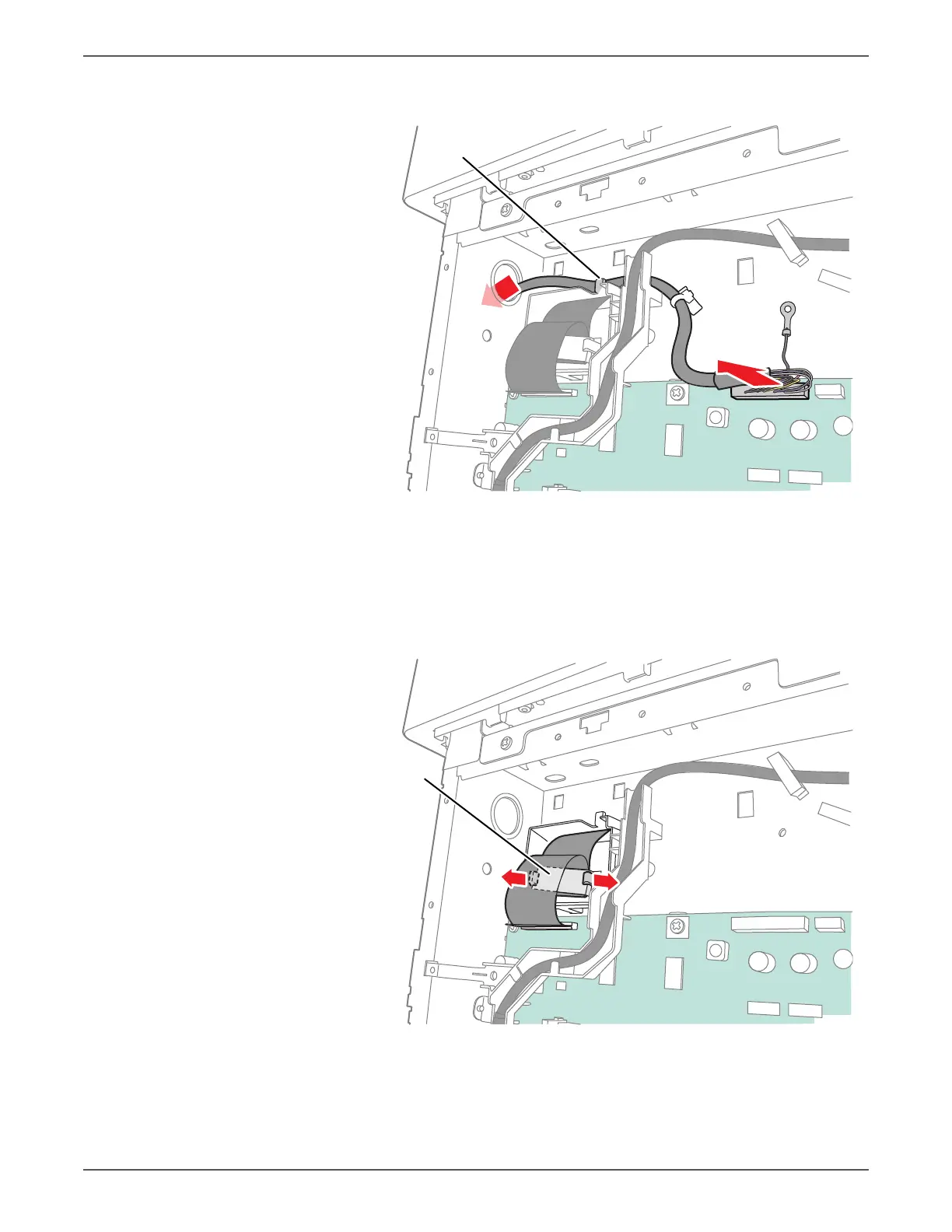

19. Release 2 hooks of the FFC Holder, then remove the Ferrite Core from the
ribbon cable.
s6500-383
Hook
s6500-381
Ferrite Core

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
