Xerox WorkCentre 6505 Service Manual

8-200 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
Service Parts Disassembly

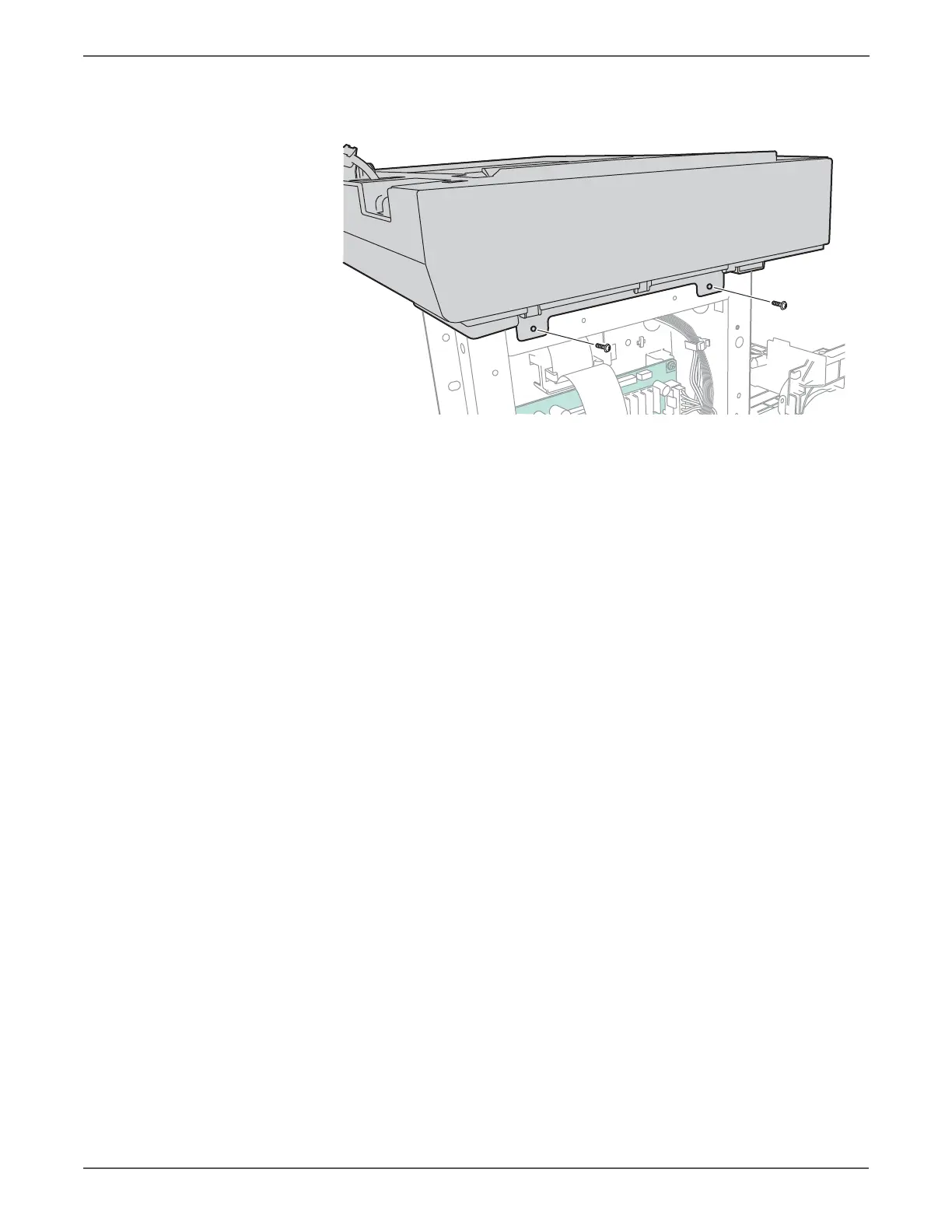

20. Remove two screws (silver, 6mm) that secure the IIT Sub-Assembly to the
chassis. Shift the IIT Sub-Assembly to left to release the holes of the assembly
from the four studs to remove the IIT from the chassis.
Replacement Note
When replacing the IIT Sub-Assembly on the chassis, take care not to pinch
the harnesses, particularly the ADF Assembly harness.
When replacing the IIT Sub-Assembly with new part, be sure to perform the
procedure “Scanner Parameter Setting” on page 6-11.
s6500-385
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
