Epson Stylus Pro 4900/Epson Stylus Pro 4910 Revision A
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 260
Confidential
3.4.11.4 Left Cover
1. Remove the Color Measurement Device. (p255)
2. Remove the Mounter. (p132)
3. Remove the Upper Cover. (p257)
4. Remove the I/F Cover. (p258)
5. Remove the three screws that secure the Left Cover.
A) Silver, Phillips, Round Washer Head S-tite M3x8: two pieces
B) Silver, Phillips, Bind P-tite M3x8: one piece
6. While pulling out the USB cable, slide the Left Cover straight aside to remove it.

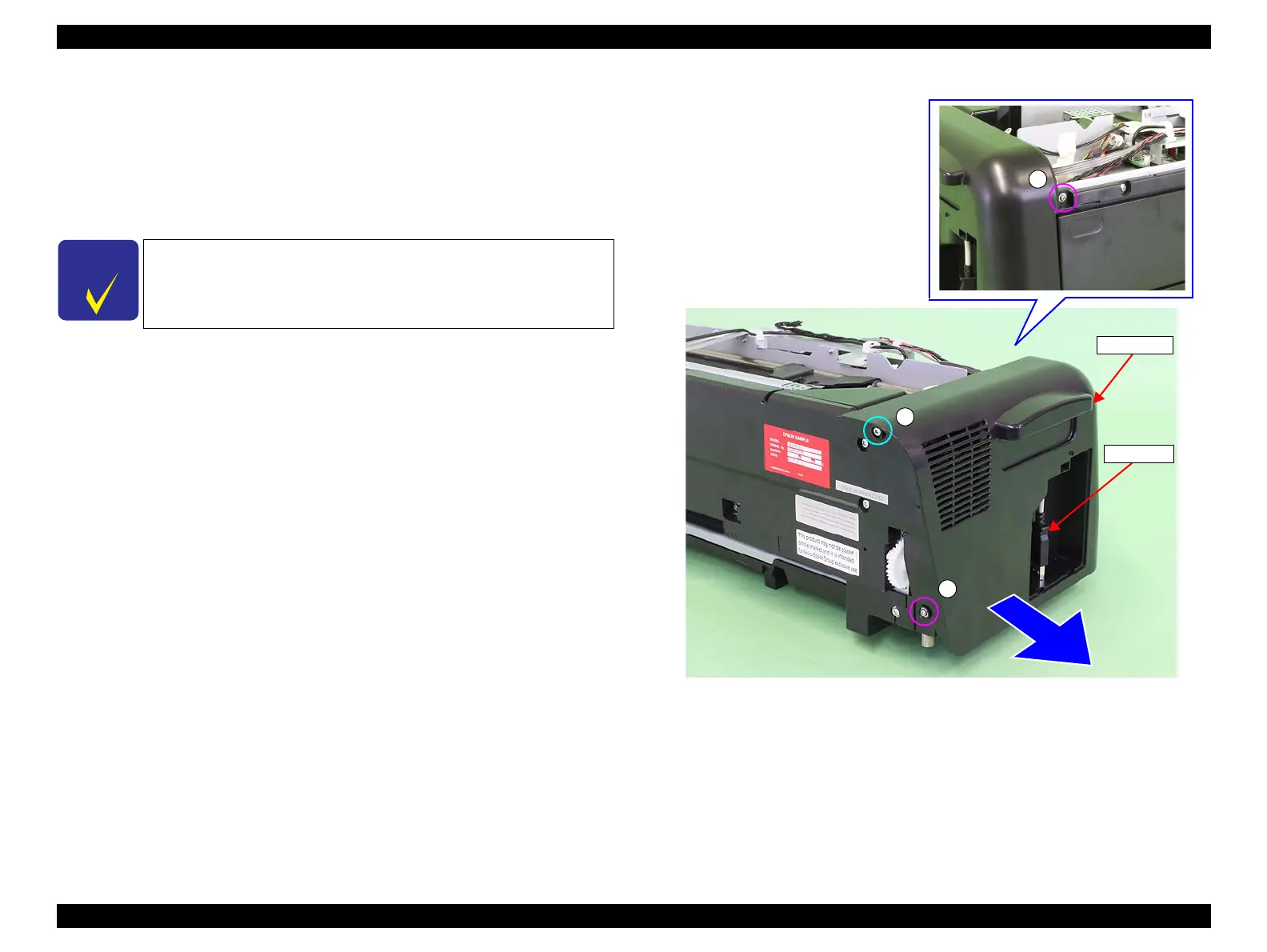

Figure 3-200. Removing the Left Cover
C H E C K
P O I N T
In the next step, make sure to confirm which screw is attached to
which location because various screws are used here.
Left Cover
B
A
A
USB cable
To Next Page
