227
────────────────────────────────────────────────────

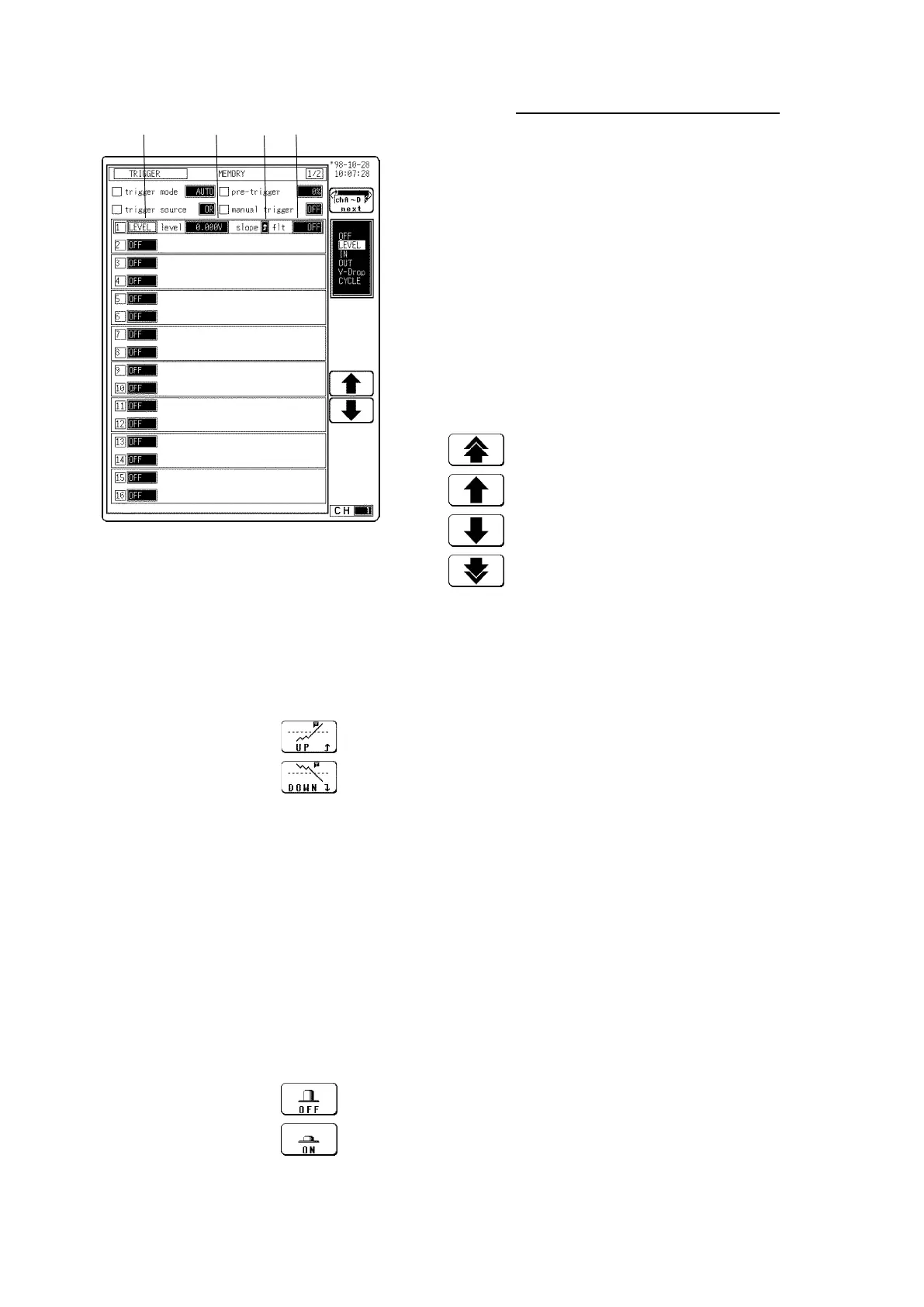

10.8 Analog Trigger
────────────────────────────────────────────────────
s881-1
1. 2. 3. 4.
Function
display
Meaning
:
Increases in number, large step
:
Increases in number, small step
:
Decreases in number, small step
:
Decreases in number, large step
Function
display
Meaning
:
Enables triggering on the rising edge.
:
Enables triggering on the falling edge.
Function
display
Meaning
:
Trigger filter is disabled.
:
Trigger filter is enabled.
Filterwidthis10ms.
Procedure
Screen: TRIGGER, Waveform display
(1) Select the level trigger
1. Display the TRIGGER or Waveform display screen.
2. Move the flashing cursor to position 1. shown in the
figure.
3. Use the function keys to select LEVEL.
(2) Set the trigger level
1. Move the flashing cursor to position 2. shown in the
figure.
2. Use the Jog/Shuttle control or the function keys to
make the selection.
(3) Select the trigger direction (slope).
1. Move the flashing cursor to position 3. shown in the figure.
2. Use the function keys to make the selection.
(4) Set the trigger filter
1. Move the flashing cursor to position 4. shown in the figure.
2. Use the Jog/Shuttle control or the function keys to make the selection.
In Memory Recorder, Recorder&Memory (memory waveform), FFT
Functions
OFF
Trigger filter is disabled
0.1
to
10
Trigger filter is enabled. Filter width is specified using
divisions
In the Recorder Function
