234
────────────────────────────────────────────────────

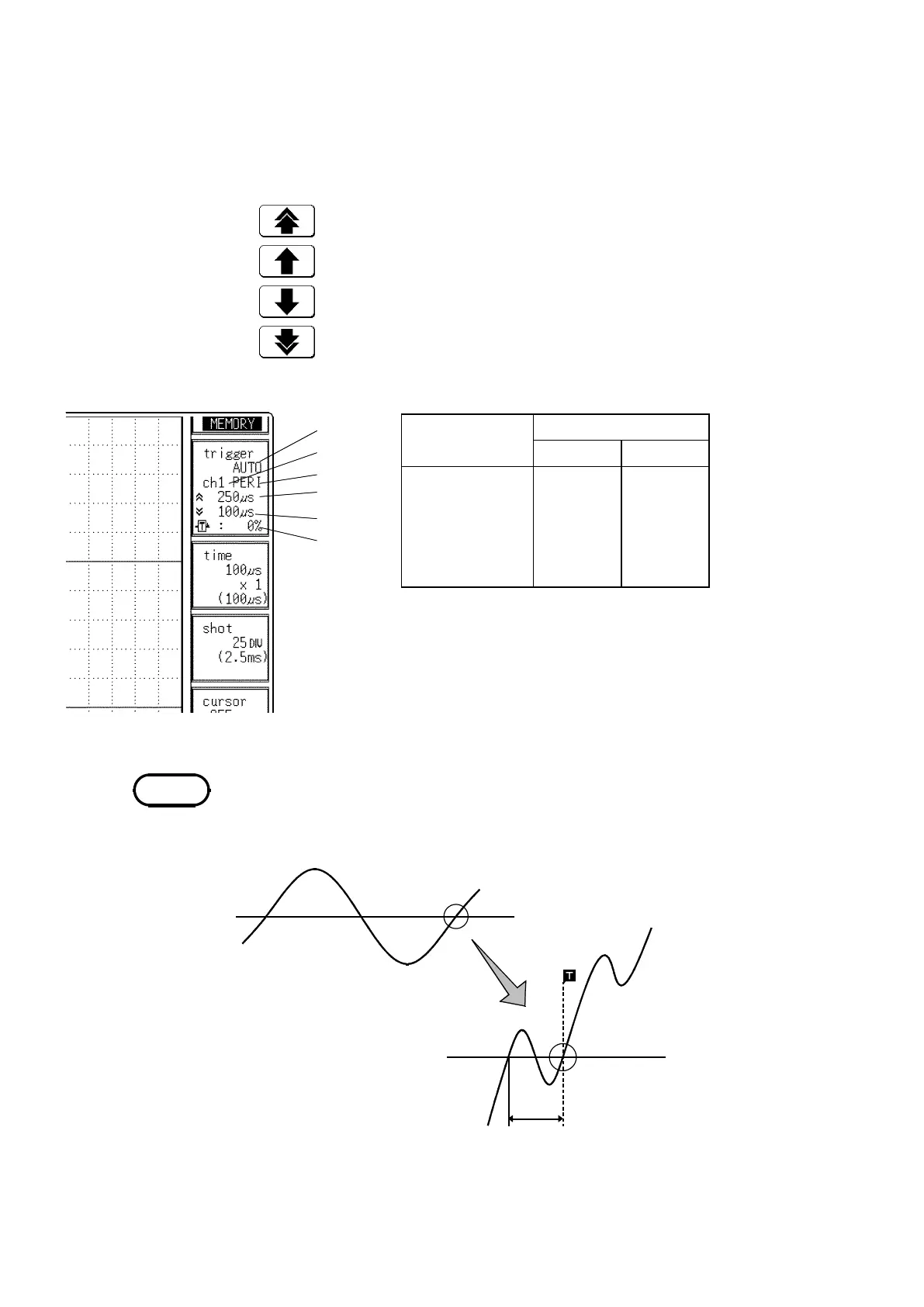

10.8 Analog Trigger
────────────────────────────────────────────────────
Function
display
Meaning
#7-3
:
Increases in number, large step
:
Increases in number, small step
:
Decreases in number, small step
:
Decreases in number, large step
1.
3.
2.
4.
5.
6.
Setting items
Operation
Function Jog/Shuttle
1. Trigger mode
2. Trigger type
3. Channel
4. Upper limit
5. Lower limit
6. Pre-trigger
●
●
●
●
●
●
−
−
●
●
●
●
NOTE
Triggering occurs, since the system judges that
the period deviates from the specified range.
Trigger level
Noise
(4) Set the reference voltage value
1. Move the flashing cursor to position 4. shown in the figure.
2. Use the Jog/Shuttle control or the function keys to make the setting.
Settings on the Waveform display screen
Restriction:
The trigger slope and reference voltage value cannot be
set.
To set numerical value by using the Jog and Shuttle
controls, press VALUE key.
The selected window is not displayed in the pre-trigger
setting.
Since a trigger filter is not prepared for the period trigger, triggering may
mistakenly occur due to noise (see the figure below).
To prevent such an event, use an appropriate low-pass filter.
