14.7 Saving the Data (SAVE)
────────────────────────────────────────────────────
s1271-6
Function
display Meaning
:
Determines the data to store.
:
Cancel the command to be saved.
Function
display Meaning
:
Save the file data.
:
Cancel saving
Function
display
Meaning
##g-bl1, bl2
:
In sequential saving, all data, from the starting
block through the ending block, are saved.
:
Save the waveform data on the selected blocks
(displayed block, use block)
:
Cancel
Function
display
Meaning
##g-bl1, bl2
:
Save the REC&MEM index files.
:
Save the display waveform data.
:
Cancel
NOTE

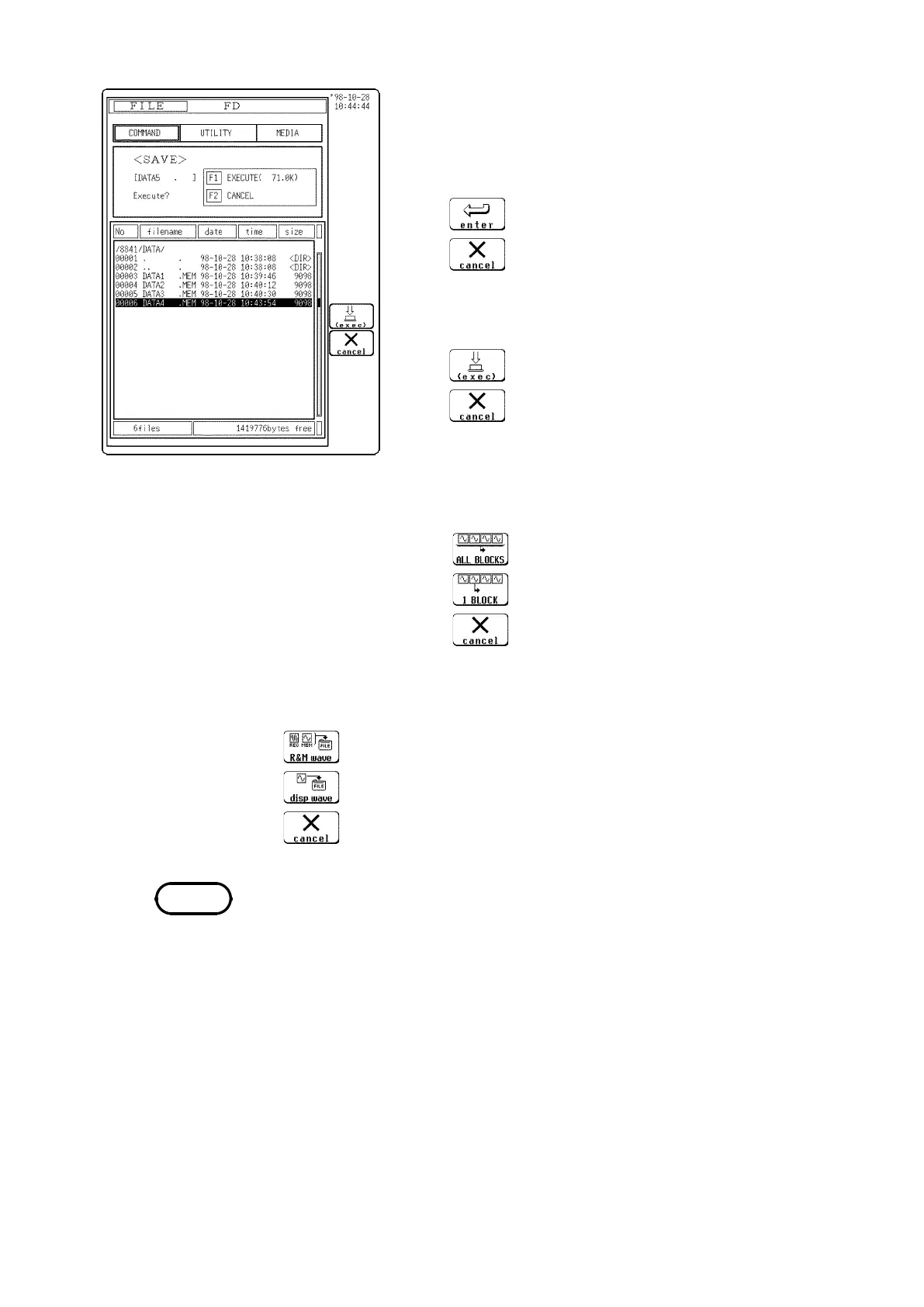

(6) Execute saving.
1. Use the function key to select
enter to confirm the
setting.
2. Select the
(exec)
function key.
3. When the waveform data is selected and the memory
segmentation function is used, select block saving.
4. Select the data storage type for the Recorder & Memory function:
･ When "R&M wave" is selected with the Recorder & Memory function, a
directory with the same name as the filename is created and in the directory,
and then the data files and an index (R_M) file to read the composite data
are created.
･ When "ALL BLOCKS" is selected, a directory with the same name as the
filename is created and in the directory, the files for all blocks as well as a
index file for reading the data in one operation are created.
･ The directory and the number of files that can be stored in the directory are
limited. For details, see Section 14.7.
･ For purposes of bulk storage (all blocks of memory division, or in
REC&MEM function), partial saves are disabled even when A and B cursors
are shown on the Waveform display screen.
･ When the "Enter" function key is selected, the file size to be saved is displayed.
