14.7 Saving the Data (SAVE)
────────────────────────────────────────────────────
MEM
REC
RMS
XYC
SEQ
MUL
TXT
SET
ARE
BMP
FFT
R_M
CMU
Memory recorder binary data file ●
Recorder binary data file
●
RMS recorder binary data file
●
X-Y CONT recorder binary data file ●
Sequential save index file
●
Multiblock index file
●
Text data file
─
Setting data file
●
Evaluation are
●
Bit map (.bmp) file ─
FFT binary data file
●
REC&MEM index file
●
Setting file of the 8910 CAN ADAPTER(read only)
●
s1271-5

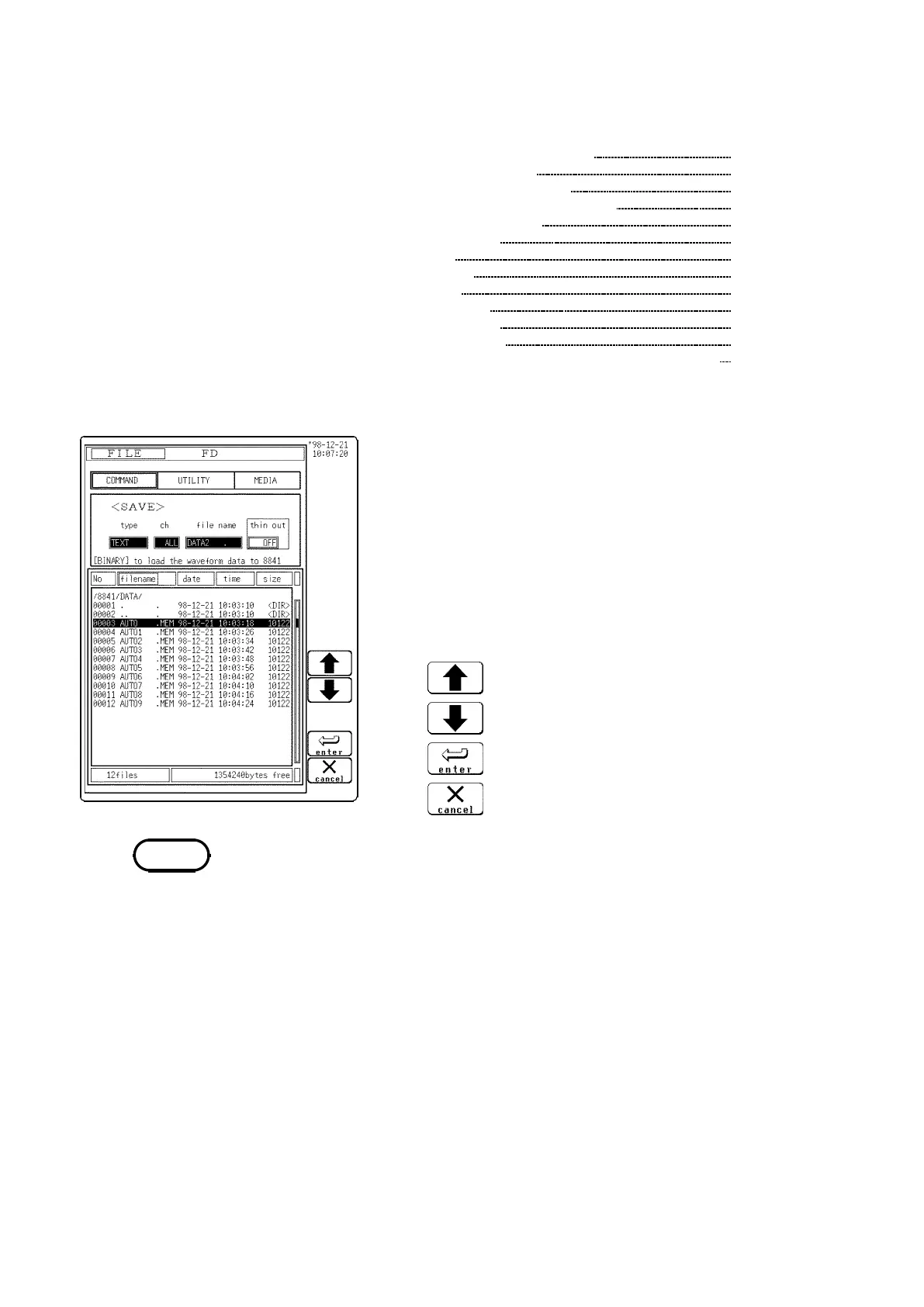

Function
display
Meaning
##F2
:
Move the cursor up in the selection window.
:
Move the cursor down in the selection window.
:
Determines the data to store.
:
Cancel the command to be saved.
NOTE
File name extension
If no file name extension (3 characters after period) is entered, the following
extensions are automatically assigned, according to the stored data type.
●: Files can be read into the unit. ─: Reading is not possible
(5) Set the text data thinning.
If the settings call for data to be saved in text format,
the file size can be compressed in terms of the data
quantity.
1. Using the cursor keys, move the flashing cursor to
thin out
2. Use the function key or Jog/Shuttle control to make a
setting.
Data stored in the text format is not readable by the 8841/42.
Thinning is not applied with FFT data text format storage.
