352
────────────────────────────────────────────────────
15.2 Using the Multi-Block Function (MEM)
────────────────────────────────────────────────────

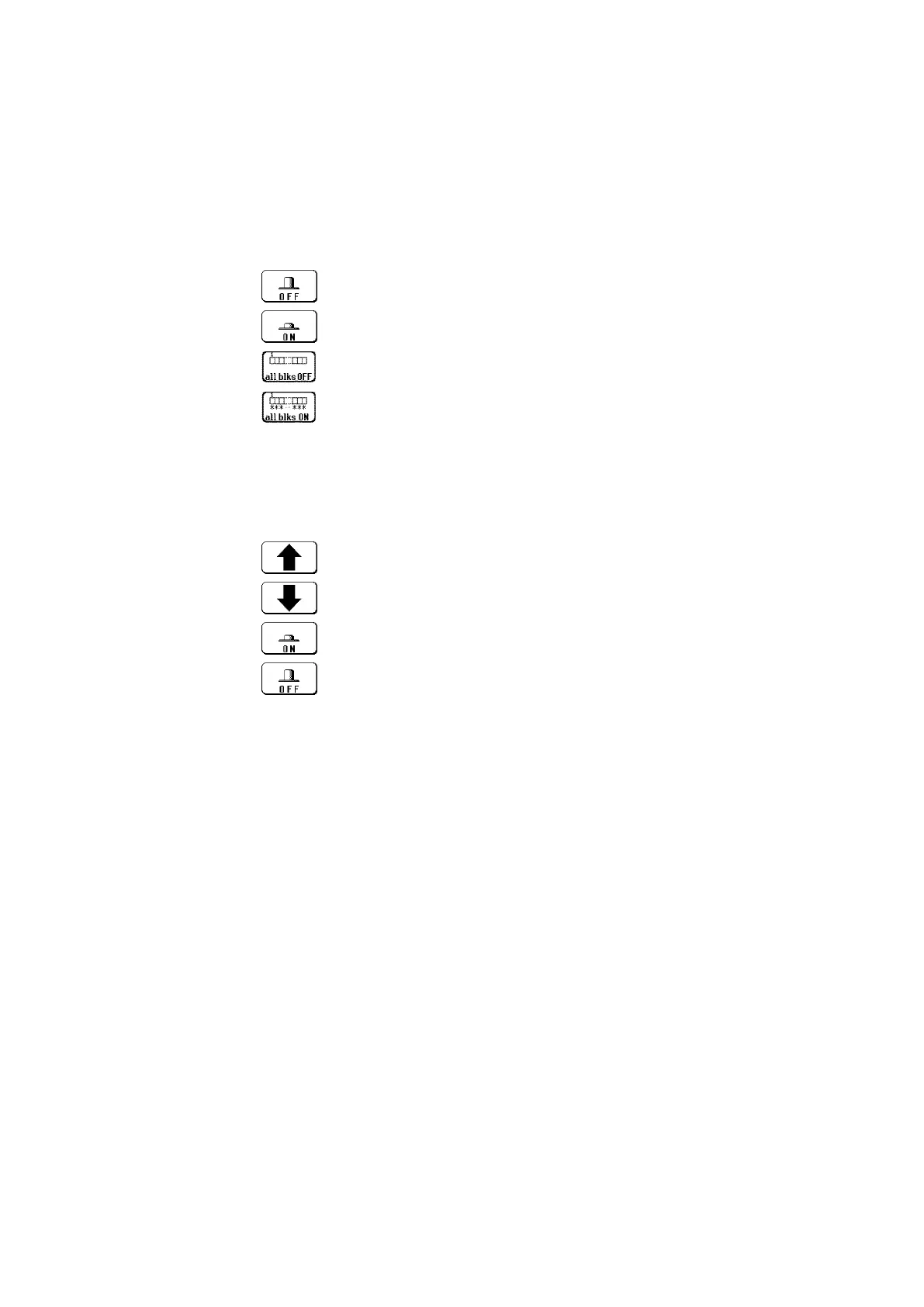

Function
display Meaning
##F3
:
Disable ref block
:
Enable ref block
:
Turns off all ref block settings.
:
Sets all blocks as ref blocks.
Function
display
Meaning
##F3
:
Increases in number.
:
Decreases in number.
:
Enable ref block
:
Disable ref block
(5) Set the ref block.
Select a memory block whose waveform data are to be overlaid on screen
with the memory block selected for display. The recording start time and
time axis range are displayed on the window.
1. Move the flashing cursor to the ref block item.
2. Use the function keys to make the selection.
3. Move the flashing cursor to the numerical value item (ref block).
Ref block settings can be made one block at a time. Blocks set as ref blocks
are marked with an asterisks.
