351
────────────────────────────────────────────────────
15.2 Using the Multi-Block Function (MEM)
────────────────────────────────────────────────────
8Mwords
Number of
divisions
Number of channels
16 8 4 2
3 1000 2000 5000 10000
7 500 1000 2000 5000
15 200 500 1000 2000
31 100 200 500 1000
63 50 100 200 500
127 25 50 100 200
255 − 25 50 100
32 M words
Number of
divisions
Number of channels
16 8 4 2
3 5000 10000 20000 40000
7 2000 5000 10000 20000
15 1000 2000 5000 10000
31 500 1000 2000 5000
63 200 500 1000 2000
127 100 200 500 1000
255 50 100 200 500
NOTE
s132-6
Function
display
Meaning
##F3
:
Increases in number.
:
Decreases in number.
Maximum number of divisions
The maximum number of divisions and the maximum recording length are
automatically determined according to the set memory capacity and number
of available channels, as shown in the tables below.
When using the multi-block function, the number of memory blocks has
priority over the recording length (DIV). When the number of memory
blocks is changed, the recording length may automatically be adjusted.

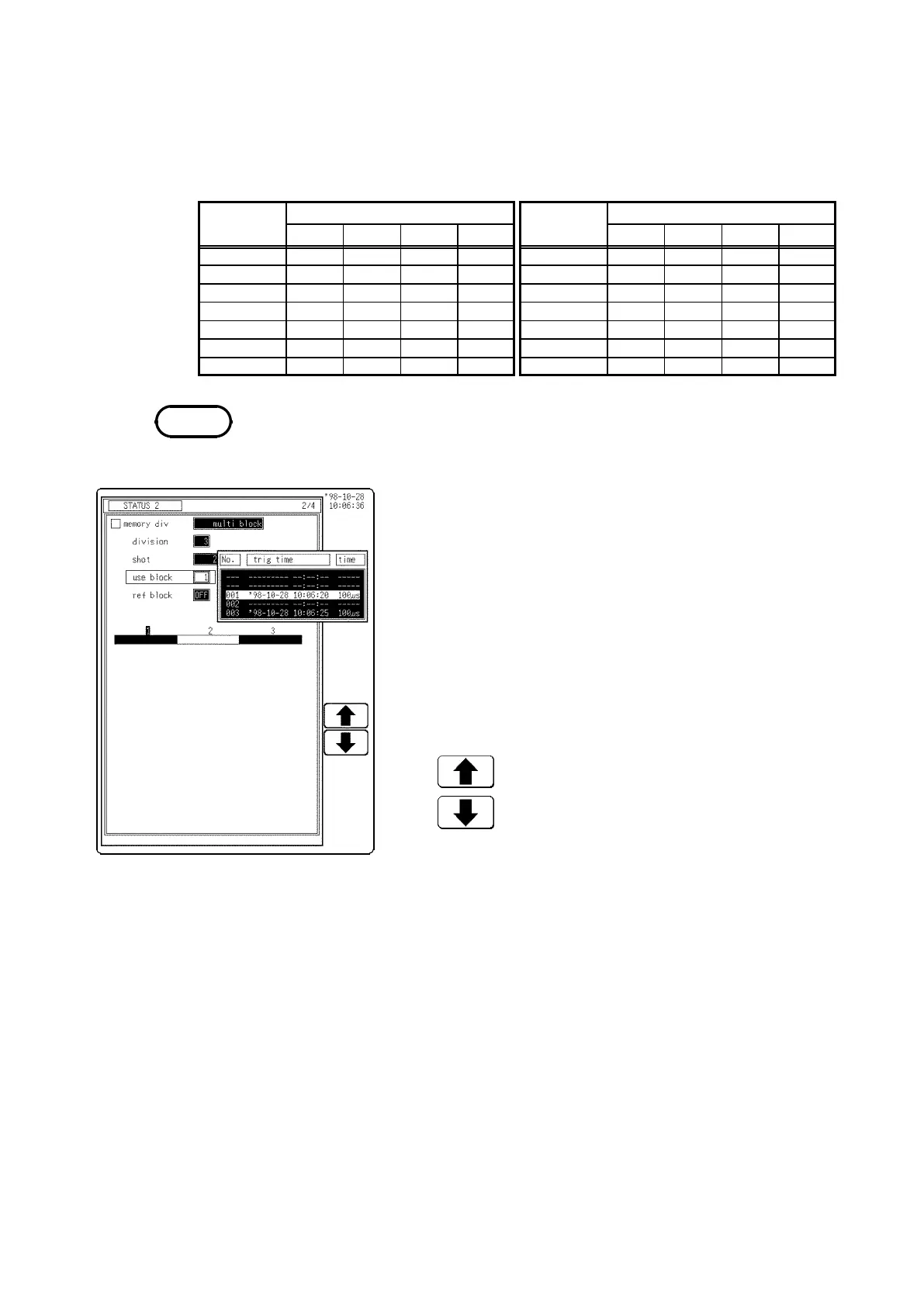

(4) Set the using block.
Select the number of the memory block for display and
recording of the input signal waveform.
Specify the block to be displayed on the Waveform
display screen.
1. Move the flashing cursor to the
use block
item, as
shown in the figure on the left.
2. Use the Jog/Shuttle control or the function keys to
make the selection.
