Trigger Configure menu
The Configure menu allows you to view and modify the structure and parameters of a
trigger model. You can also monitor trigger model operation.

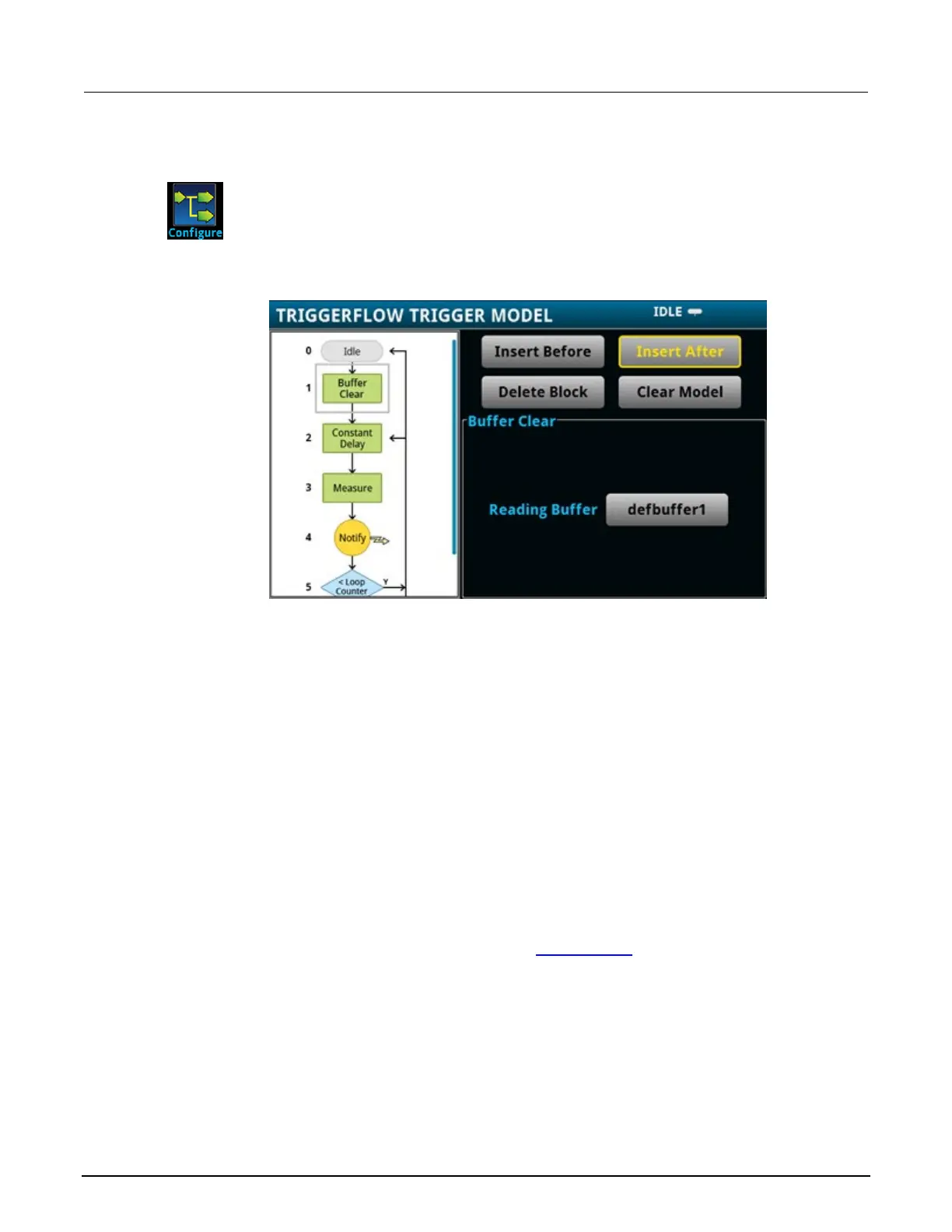

Figure 49: TRIGGERFLOW TRIGGER MODEL screen
To see the parameters that you can change from the front panel, select a block in the trigger model
diagram. The available options change depending on the type of block you select.
From this screen, you can:
• Insert a new trigger block before or after the selected block
• Choose among several block types to add
• Edit an existing block
• Delete an existing block
• Remove all trigger blocks by selecting Clear Model
When you finish your changes to the trigger model, you can initiate the trigger model by pressing the
front-panel TRIGGER key.
For detailed information on the trigger model, refer to Trigger model (on page 8-27
).
