4: Sourcing and measuring 2470 High Voltage SourceMeter Instrument
4-94 2470-901-01 Rev. A / May 2019
Viewing configuration list contents
Use the following procedure to view configuration index 2 from MyMeasList.
Using the front panel:
1. Press the MENU key.
2. Under Measure, select Config Lists. MEASURE CONFIGURATION LISTS is displayed.
If you want to view a source configuration list, under Source, select Config Lists.
3. Choose Select List. A menu of available configuration lists is displayed.
4. Select MyMeasList. The configuration indexes are displayed.
5. Select the second configuration index.
6. Select Index Details.

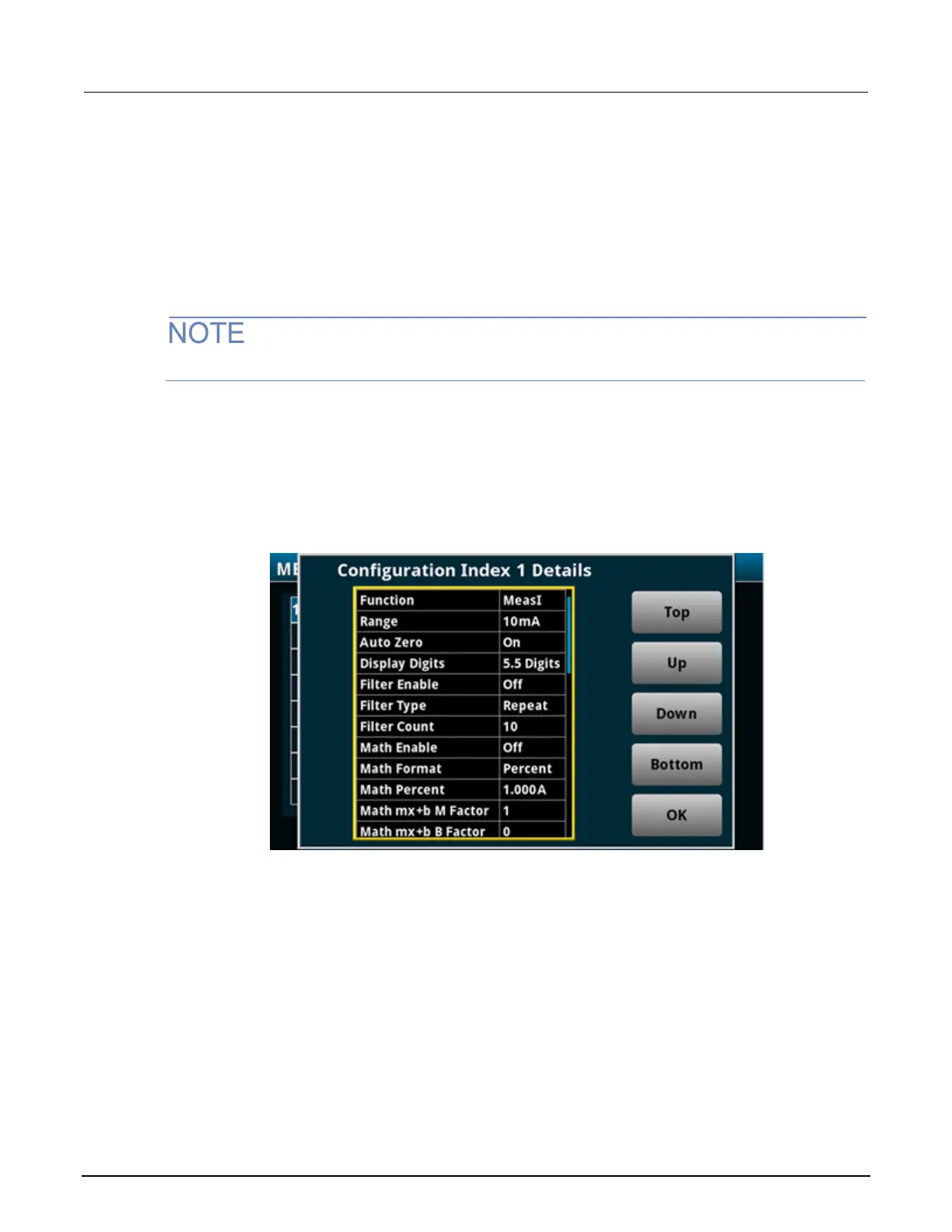

Figure 82: Configuration list details
7. When you are finished, select OK.
Deleting a configuration index
Use the following procedure to delete a configuration index from MyMeasList.
Using the front panel to delete a configuration index:
1. Press the MENU key.
Under Measure, select Config Lists. The MEASURE CONFIGURATION LISTS screen is
displayed.
