Recalling a configuration index
Use one of the following methods to recall configuration index 2 on MySourceList.
If recalling a configuration list separately, recall source configuration lists before measure
configuration lists. This order ensures that dependencies between source and measure settings will
be properly handled.
Using SCPI commands:
:SOURce:CONFiguration:LIST:RECall "MySourceList", 2
For a measure configuration list, replace :SOURce with :SENSe and specify an existing measure
c
onfiguration list name and index.
Using TSP commands:
smu.source.configlist.recall("MySourceList", 2)
For a measure configuration list, replace source with measure and specify an existing configuration
l
ist name and index.
The following figure shows the active state of the instrument after you recall configuration index 2.
Notice that the NPLC setting is 2.0. This is because when you recall a source configuration list, the
settings that are restored are the source settings that were active at the time the point was stored.
Since NPLC is not a source setting, recalling a source configuration list has no effect on the value of
the NPLC setting.

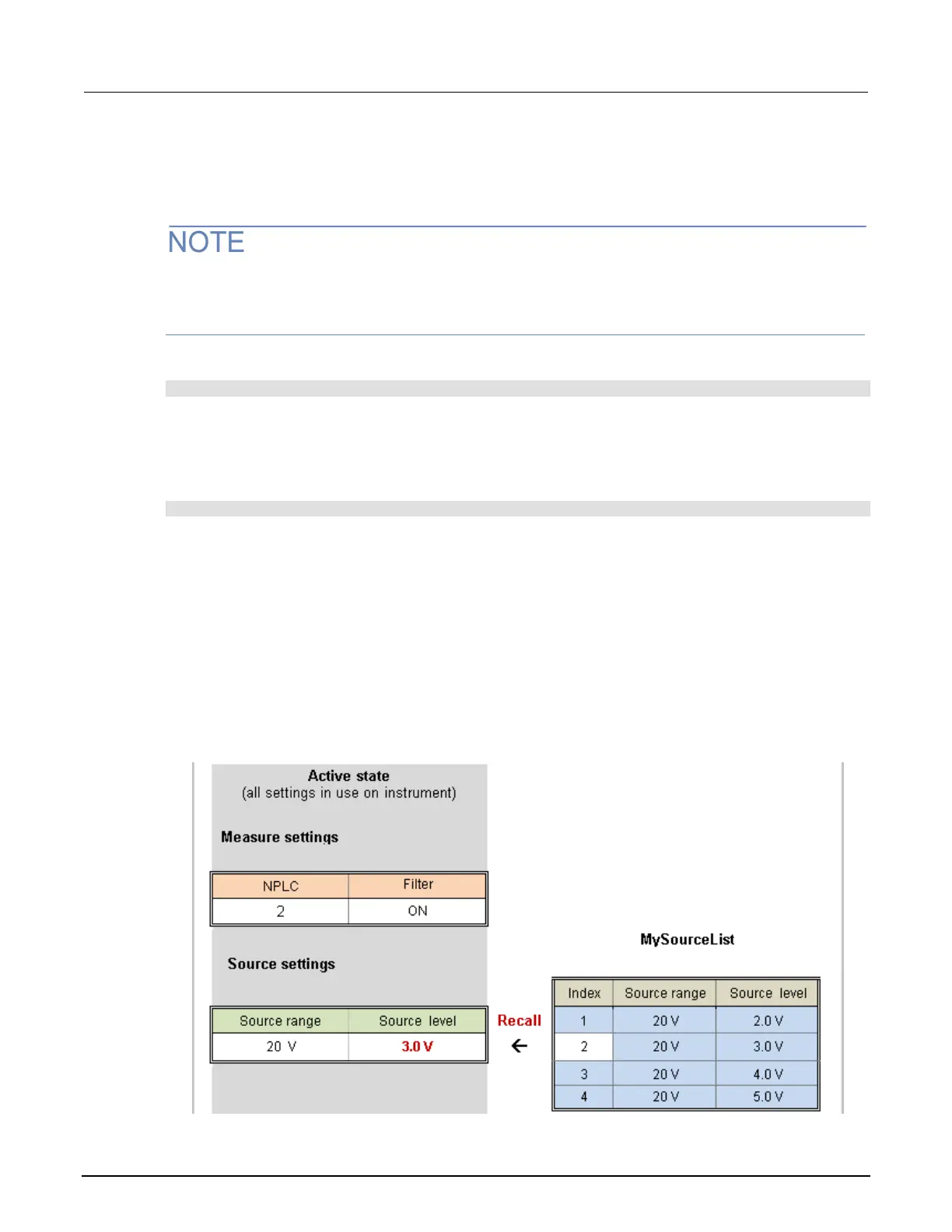

Figure 87: Recall configuration point 2
