4: Sourcing and measuring 2470 High Voltage SourceMeter Instrument
4-100 2470-901-01 Rev. A / May 2019
Storing configuration index 4
Use one of the following methods to:
• Set the instrument source level to 5.0 V
• Store all active source settings to MySourceList as configuration index 4 by appending to the
end
of the list
Using SCPI commands:
:SOURce:VOLTage:LEVel 5
:SOURce:CONF:LIST:STORe "MySourceList"
Using TSP commands:
smu.source.level = 5
smu.source.configlist.store("MySourceList")
The following figure shows the active state of the instrument after you change the source level to
5.0 V. Refer to Instrument settings stored in a source configuration list (on page 4-88
) for a complete
list of source settings that the instrument stores in a source configuration list.

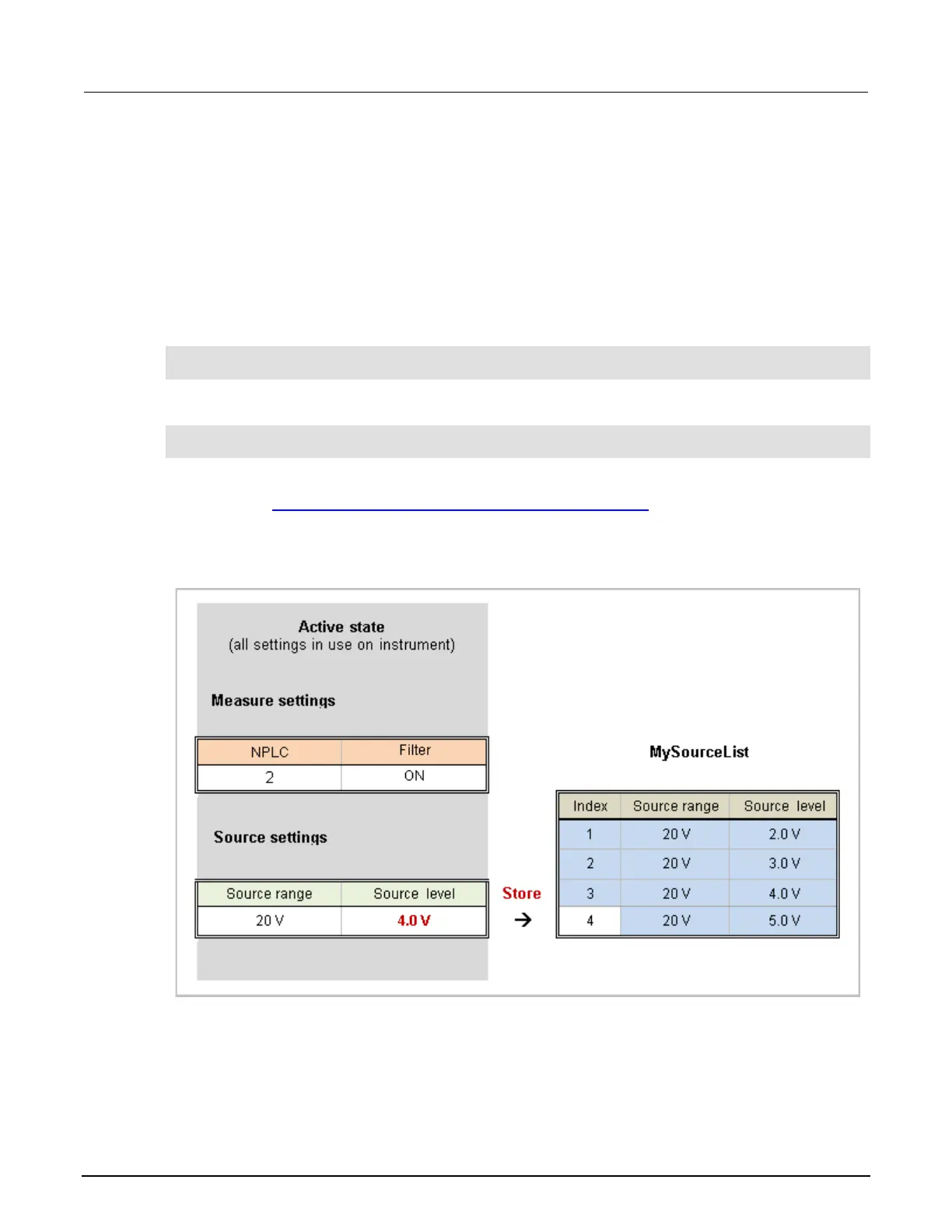

Figure 86: Example configuration point 4
