In this section:
Dimensions .............................................................................. 2-1
Handle and bumpers ................................................................ 2-6
Instrument power ..................................................................... 2-8
Remote communications interfaces ......................................... 2-9
Instrument access .................................................................. 2-37
Determining the command set you will use ............................ 2-39
System information ................................................................ 2-40
Dimensions
The following figures show the mounting screw locations and the dimensions of the instrument with
and without the handle and bumpers.
The instrument weighs 4.54 kg (10.0 lb) with the bumpers and handle and 4.08 kg (9 lb) without them.
The following figure shows the mounting screw locations and dimensions. Mounting screws must be
#6-32 with a maximum screw length of 11.12 mm (0.438 in.) or 7/16 in. The dimensions shown are
typical for both sides of the instrument.

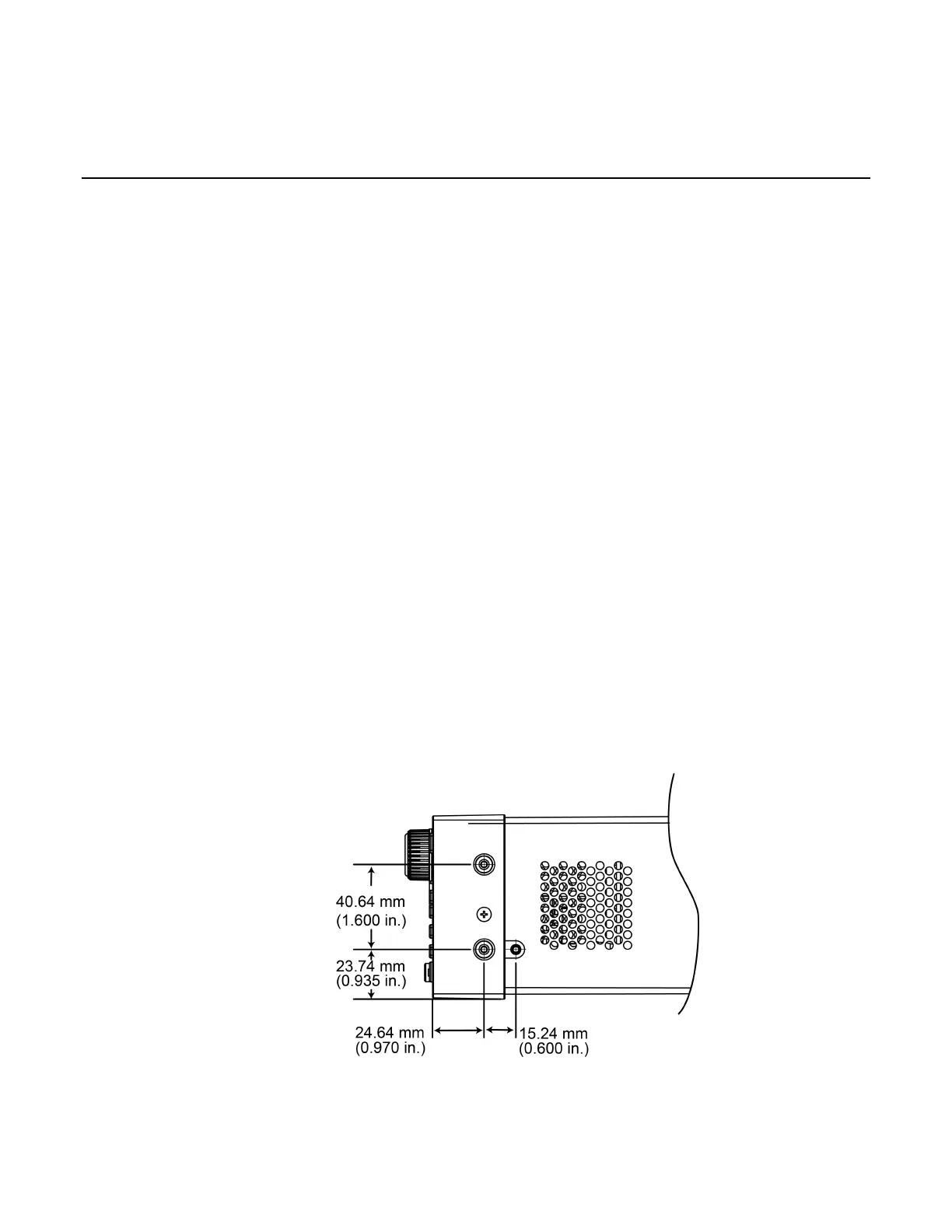

Figure 1: 2470 mounting screw locations and dimensions
Section 2
Installation
