You can view data from the reading buffers through the front panel using the Reading Table. The
Reading Table displays the following information:
• Index: The sequential number of the reading.
• Time: The data and time of the reading.
• Reading: The data that was measured.
• Source: Source value output by the instrument.
If you select a data point, additional detail about that data point is displayed, including the function,
math, and limits.
Using the front panel to view the contents of a reading buffer:
1. Press the MENU key.
2. Under Views, select Reading Table. Data for the active reading buffer is displayed.

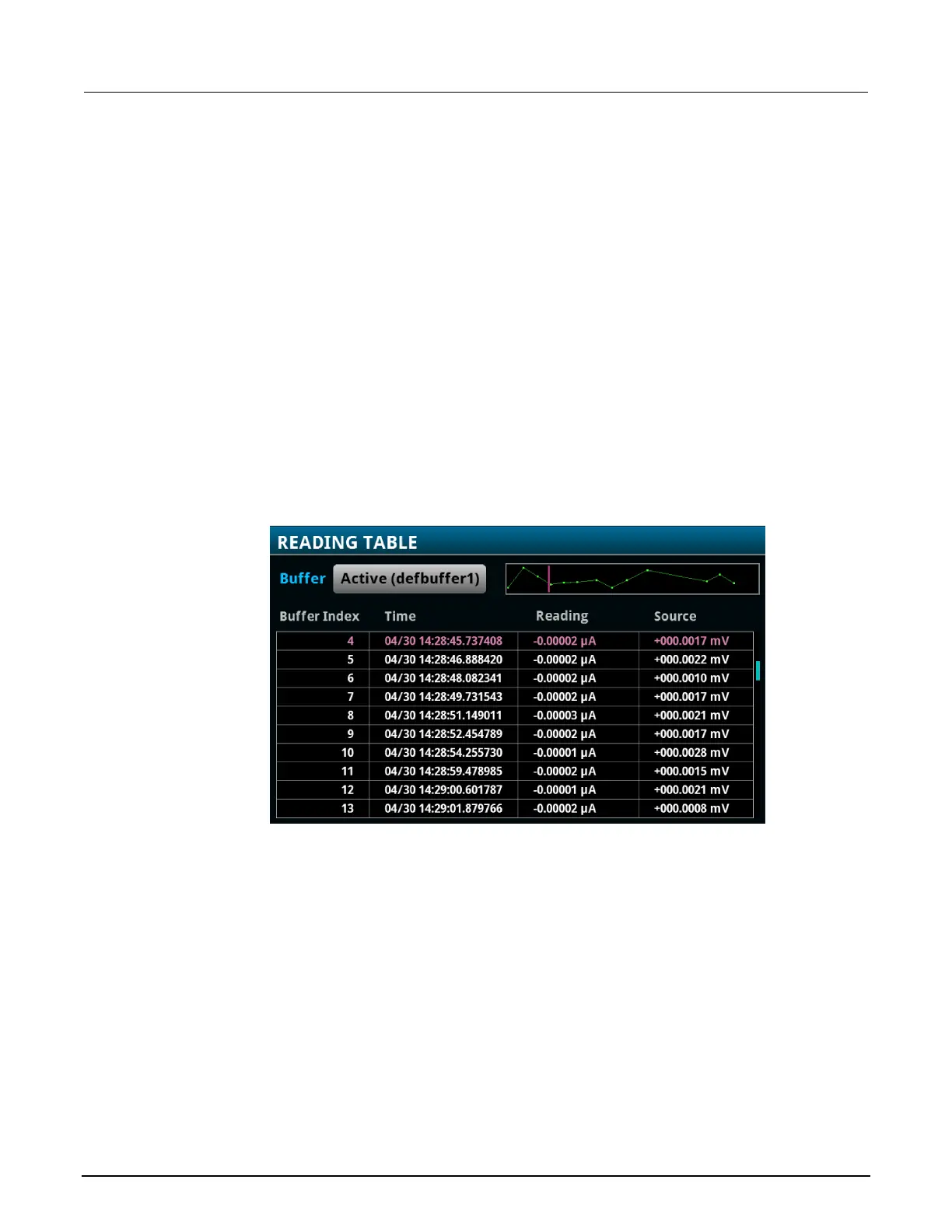

Figure 119: Reading table
3. To display data for a different reading buffer, select the buffer.
4. To view details for a specific data point, swipe the table up or down and select the data point t
o
v
iew the Reading Details. If there are many data points, select an area on the reading preview
graph in the upper right corner of the screen to get closer to the data you want, and then scroll to
t
he data point.
5. Press the HOME key to return to the home screen.
