High Voltage SourceMeter Instrument Reference Manual Section 8:
Triggering
2470-901-01 Rev. A / May 2019 8-43

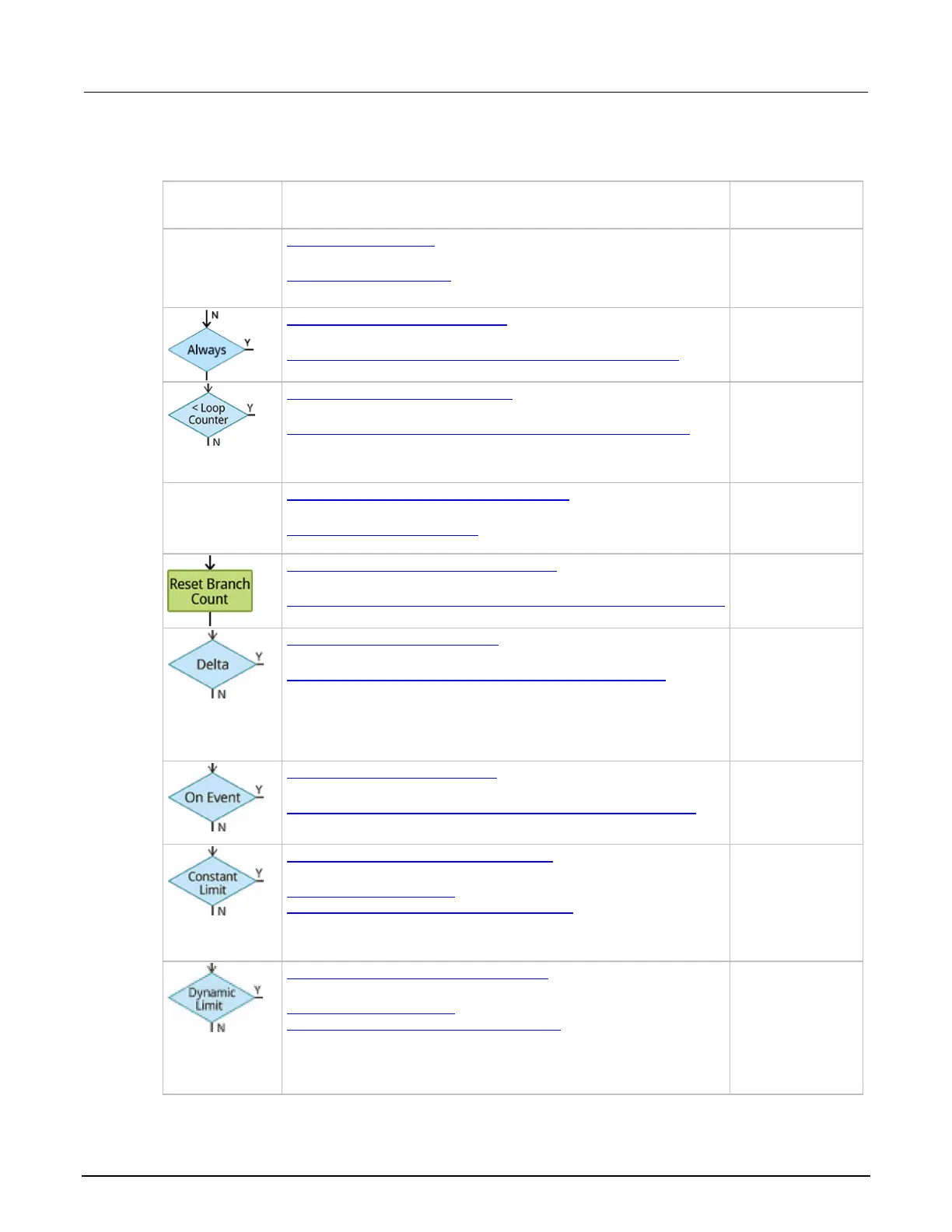

Trigger block summary
Front-panel
icon
SCPI command
TSP command
Block description
Not applicable
:TRIGger:BLOCk:LIST? (on page 12-164)
trigger.model.getblocklist() (on page 14-215)
This returns the
settings for all
trigger model
blocks
:TRIGger:BLOCk:BRANch:ALWays (on page 12-146)
trigger.model.setblock() — trigger.BLOCK_BRANCH_ALWAYS
(on
page 14-227)
This defines a
trigger model block
that always goes to
a specific block
:TRIGger:BLOCk:BRANch:COUNter (on page 12-147)
trigger.model.setblock() — trigger.BLOCK_BRANCH_COUNTER (on
page 14-227)
This defines a
trigger model block
that branches to a
specified block a
specified number of
times
Not applicable
:TRIGger:BLOCk:BRANch:COUNter:COUNt? (on page 12-148)
trigger.model.getbranchcount() (on page 14-215)
This returns the
count value of the
trigger model
counter block
:TRIGger:BLOCk:BRANch:COUNter:RESet (on page 12-149)
trigger.model.setblock() — trigger.BLOCK_RESET_BRANCH_COUNT
(on page 14-246)
This creates a
block in the trigger
model that resets a
branch counter to 0
:TRIGger:BLOCk:BRANch:DELTa (on page 12-150)
trigger.model.setblock() — trigger.BLOCK_BRANCH_DELTA
(on page
14-228)
This defines a
trigger model block
that goes to a
specified block if
the difference of
two measurements
meets preset
criteria
:TRIGger:BLOCk:BRANch:EVENt (on page 12-151)
trigger.model.setblock() — trigger.BLOCK_BRANCH_ON_EVENT
(on
page 14-232)
This branches to a
specified block
when a specified
trigger event occurs
:TRIGger:BLOCk:BRANch:LIMit:CONStant (on page 12-152)
trigger.model.setblock() —
trigger.BLOCK_BRANCH_LIMIT_CONSTANT (on page 14-229)
This defines a
trigger model block
that goes to a
specified block if a
measurement
meets preset
criteria
:TRIGger:BLOCk:BRANch:LIMit:DYNamic (on page 12-154)
trigger.model.setblock() —
trigger.BLOCK_BRANCH_LIMIT_DYNAMIC (on page 14-231)
This defines a
trigger model block
that goes to a
specified block in
the trigger model if
a measurement
meets user-defined
criteria
