High Voltage SourceMeter Instrument Reference Manual Section 8:
Triggering
2470-901-01 Rev. A / May 2019 8-45

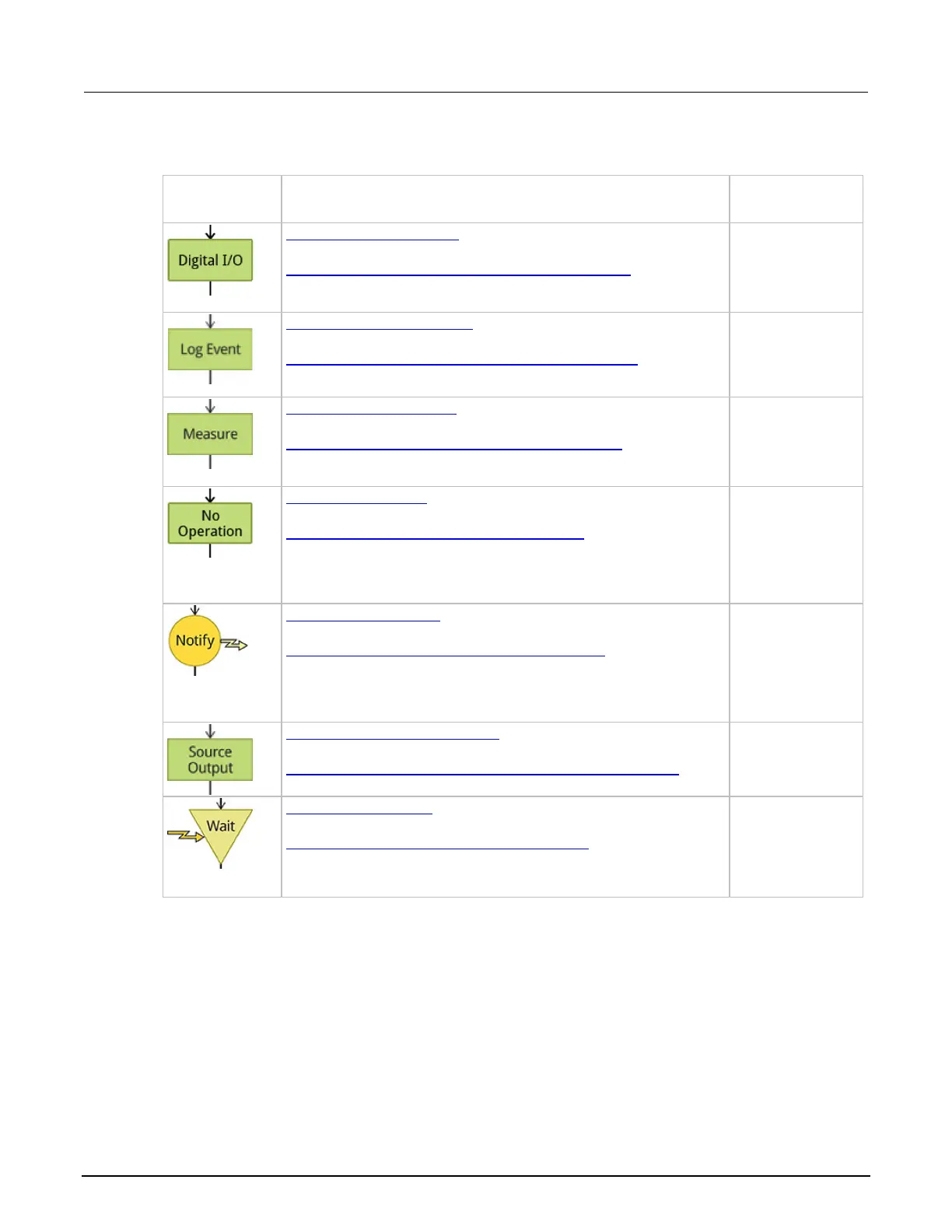

Front-panel
icon
SCPI command
TSP command
Block description
:TRIGger:BLOCk:DIGital:IO (on page 12-163)
trigger.model.setblock() — trigger.BLOCK_DIGITAL_IO
(on page
14-242)
This trigger model
block that sets the
lines on the digital
I/O port high or low
:TRIGger:BLOCk:LOG:EVENt (on page 12-164)
trigger.model.setblock() — trigger.BLOCK_LOG_EVENT
(on page
14-243)
This allows you to
log an event in the
event log when the
trigger model is
running
:TRIGger:BLOCk:MEASure (on page 12-165)
trigger.model.setblock() — trigger.BLOCK_MEASURE
(on page
14-244)
This defines a
trigger block that
makes a
measurement
:TRIGger:BLOCk:NOP (on page 12-166)
trigger.model.setblock() — trigger.BLOCK_NOP (on page 14-245)
This creates a
placeholder that
performs no action
in the trigger
model; available
only using remote
commands
:TRIGger:BLOCk:NOTify (on page 12-167)
trigger.model.setblock() — trigger.BLOCK_NOTIFY (on page 14-246)
This defines a
trigger model block
that generates a
trigger event and
immediately
continues to the
next block
:TRIGger:BLOCk:SOURce:STATe (on page 12-168)
trigger.model.setblock() — trigger.BLOCK_SOURCE_OUTPUT
(on
page 14-247)
This defines a
trigger block that
turns the output
source on or off
:TRIGger:BLOCk:WAIT (on page 12-169)
trigger.model.setblock() — trigger.BLOCK_WAIT (on page 14-248)
This defines a
trigger model block
that waits for an
event before
allowing the trigger
model to continue
