13: Introduction to TSP commands 2470 High Voltage SourceMeter Instrument

Reference Manual

13-38 2470-901-01 Rev. A / May 2019

3. Click the New launch configuration icon at the top left of the dialog box. By default, a new

configuration is created with the name New_configuration.

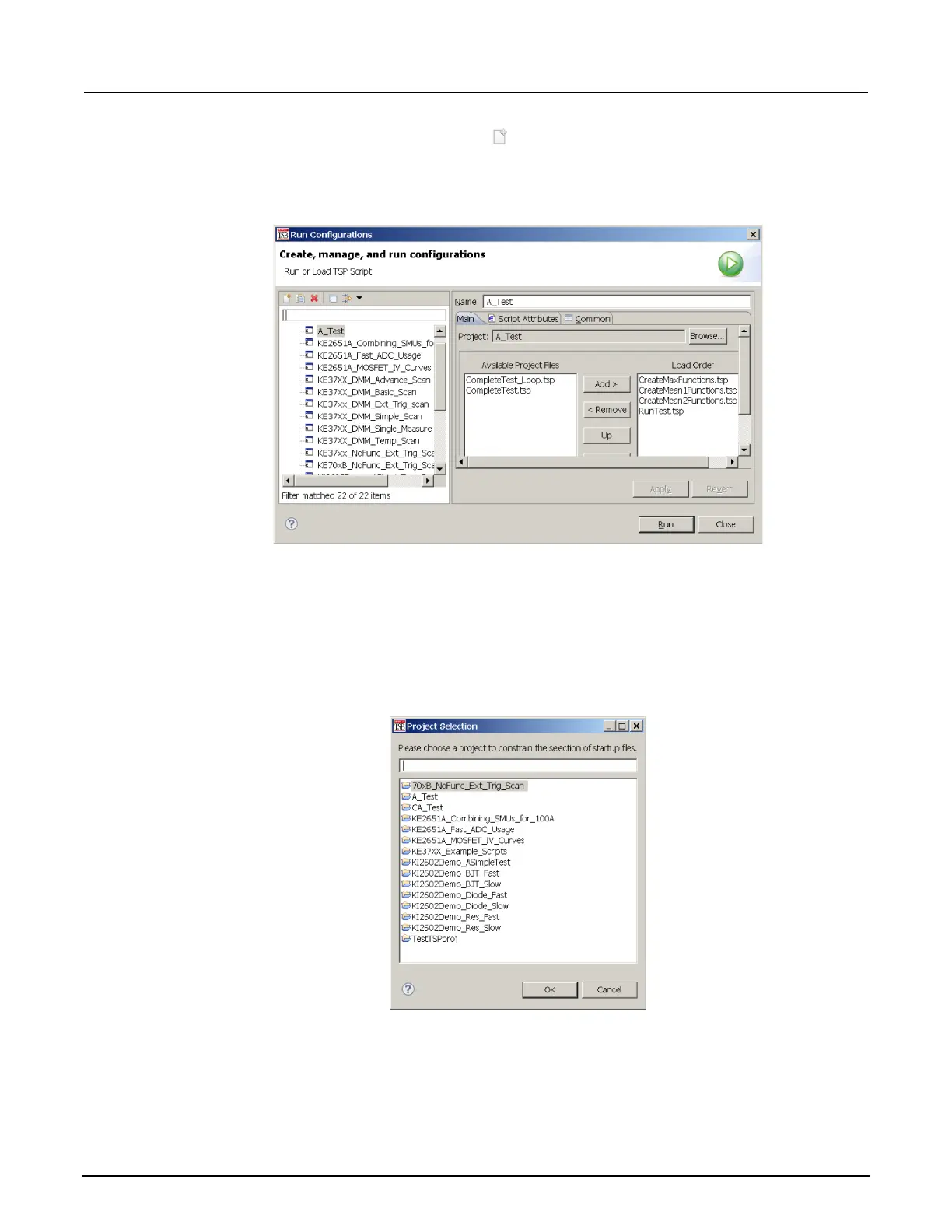

Figure 146: Run Configurations dialog box

4. In the Name box, enter the name of your new run configuration.

5. Click the Browse button next the Project box.

6. Select a project from the list of available projects

7. Click OK.

Figure 147: Project Selection dialog box
