2470

High Voltage SourceMeter Instrument Reference Manual Section 13:

Introduction to TSP commands

2470-901-01 Rev. A / May 2019 13-39

The TSP files for the selected project are added to the Available Project Files list on the Main tab.

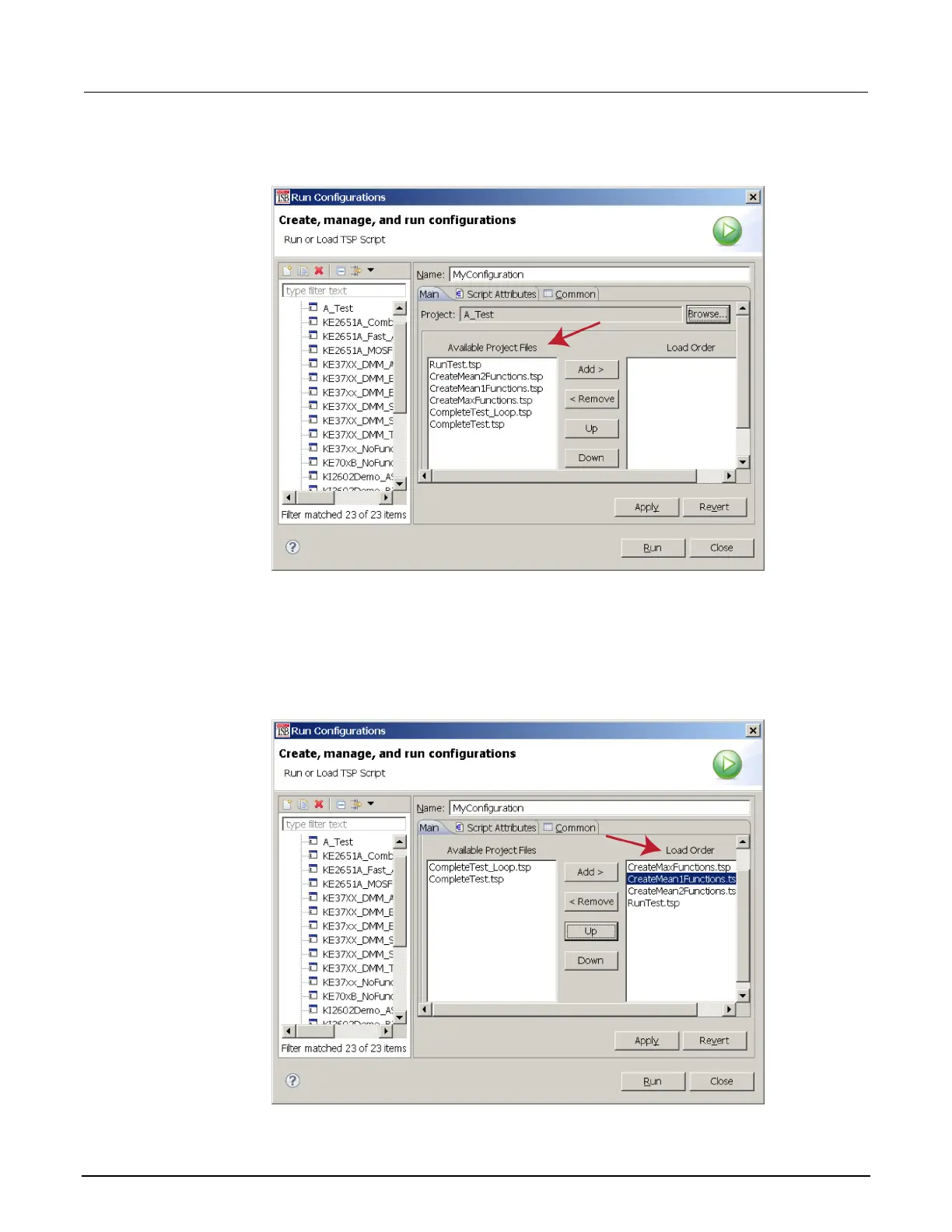

Figure 148: Available files for selected project

8. Select the files you want to add to the run configuration and click Add to add them to the Load

Order list.

To change the load order of the TSP files, select the files you want to move and click Up or Down

until the files are in the correct order.

Figure 149: Selected TSP files load order
