3: Instrument description 2470 High Voltage SourceMeter Instrument
3-16 2470-901-01 Rev. A / May 2019
Swipe screen heading bar
The heading bar of the swipe screen contains the following options.

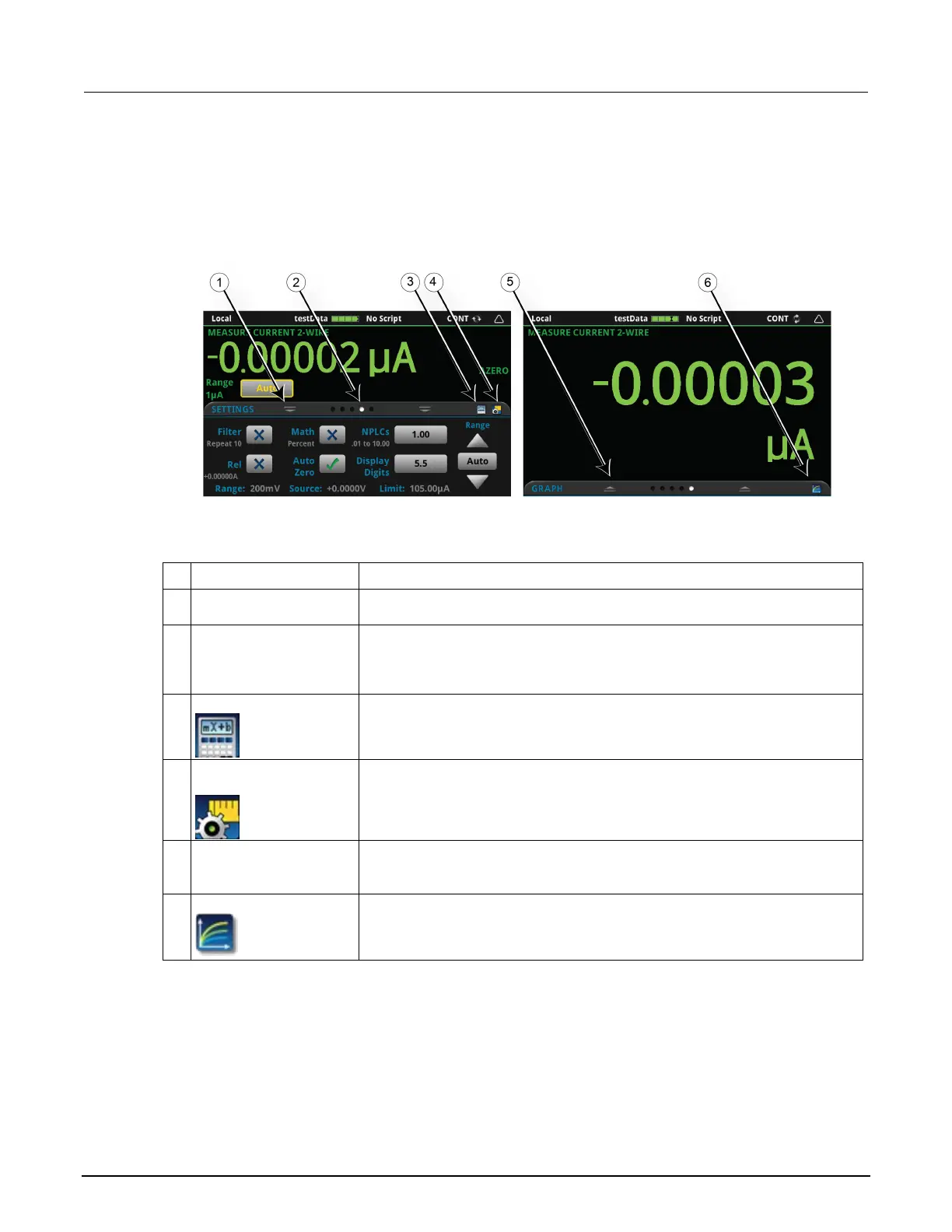

Figure 40: Swipe screens, maximized and minimized
# Screen element Description
1 Minimize indicator
You can swipe down to minimize the swipe screens.
Each circle represents one swipe screen. As you swipe right or left, a different
circle changes color, indicating where you are in the screen sequence. Select a
circle to move the swipe screen without swiping.
Select to open the CALCULATION SETTINGS menu.
shortcut
Select to open the MEASURE SETTINGS menu for the selected function.
Indicates that you can swipe up to display the swipe screen.
Select to open the Graph screen.
