Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 4-61
General Troubleshooting

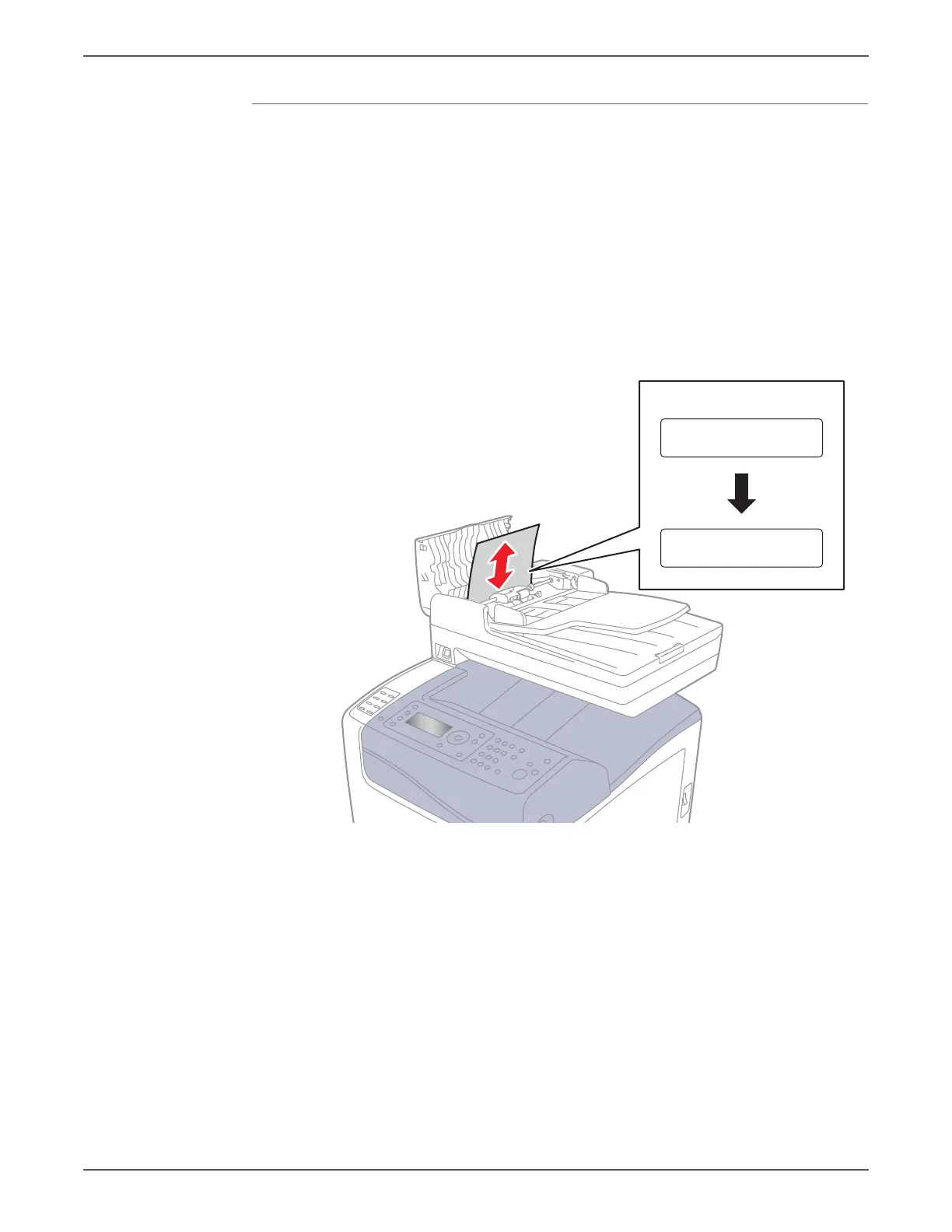

ADF Feed Sensor
1. Enter Service Diagnostics (page 4-8).
2. Open the ADF Cover.
3. Place a sheet of media in the ADF Feeder.
4. Perform the Fax/Scanner Diag > Scanner Maintenance > IIT I/O Check
>Feed Sensor test.
5. Check the Control panel display for Status ON.
6. Press Stop to return one step higher menu.
7. Remove the media from the ADF Tray.
8. Perform the Fax/Scanner Diag > Scanner Maintenance > IIT I/O Check
>Feed Sensor test.
9. Check the Control panel display for Status OFF.
10. Press the Stop button to stop the ADF Feed Sensor test.
s6500-100
Control Panel
Normal
Feed Sensor
Status ON
Feed Sensor
Status OFF
