4-62 Xerox Internal Use Only Phaser 6500/WorkCentre 6505 Service Manual
General Troubleshooting

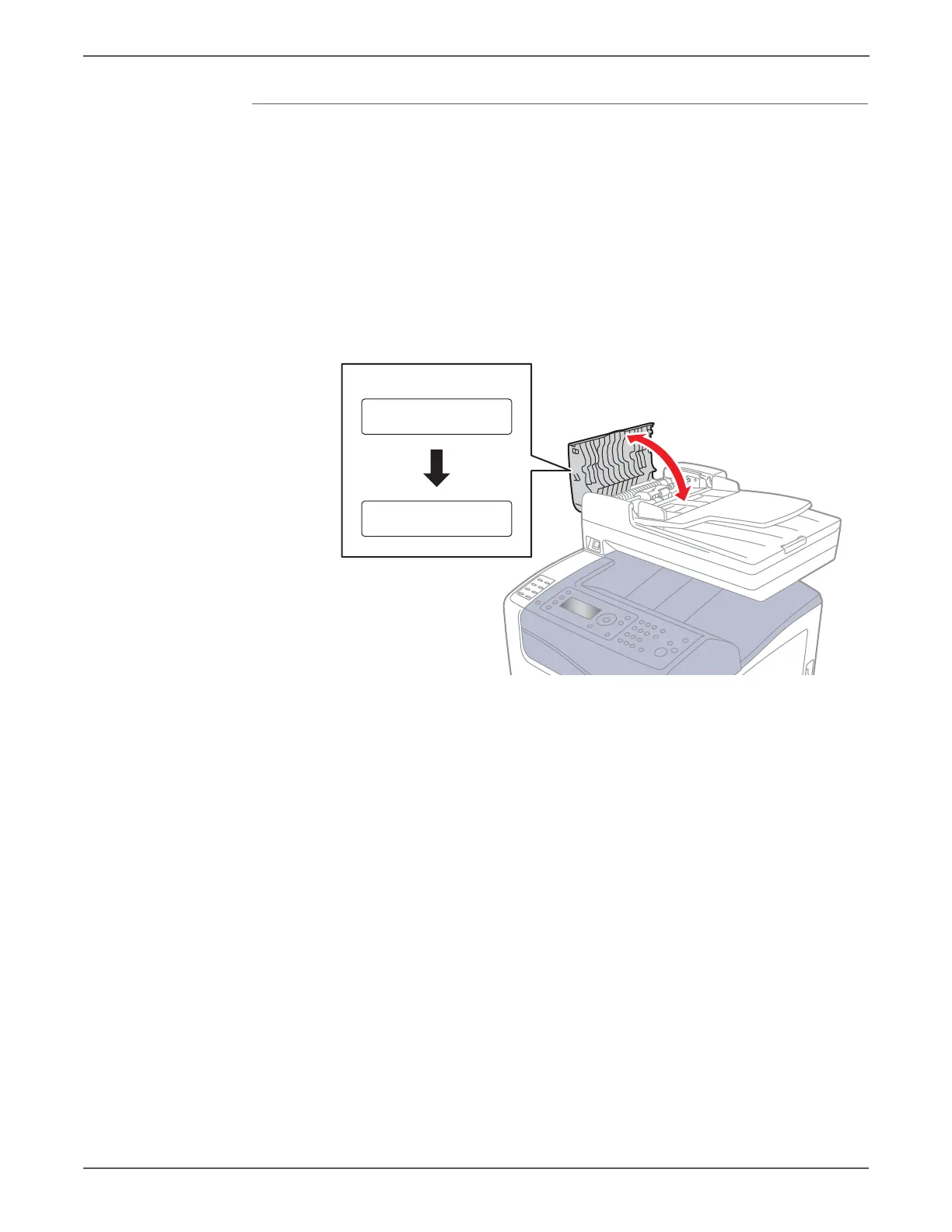

ADF Cover Sensor
1. Enter Service Diagnostics (page 4-8).
2. Open the ADF Cover.
3. Perform the Fax/Scanner Diag > Scanner Maintenance > IIT I/O Check
>ADF Cover Sensor test.
4. Check the Control panel display for Status ON.
5. Press Stop to return one step higher menu.
6. Close the ADF cover.
7. Perform the Fax/Scanner Diag > Scanner Maintenance > IIT I/O Check
>ADF Cover Sensor test.
8. Check the Control panel display for Status OFF.
9. Press the Stop button to stop the ADF Cover Sensor test.
s6500-101
Control Panel
Normal
ADF Cover Sensor
Status ON
ADF Cover Sensor
Status OFF
http://www.manuals4you.com

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
